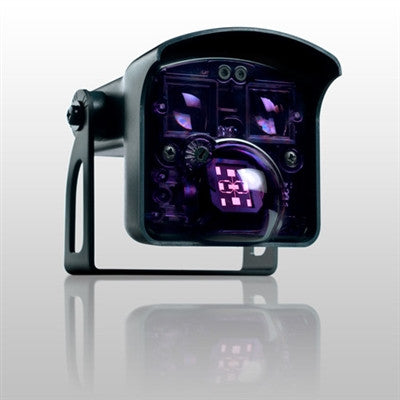

BEA IS40XL Dual Tech Door Sensor(Low Mount)
BEA 10IS40: IS40 Dual Sensor, Motion and Presence Combined
Overhead activation and presence sensor for industrial environments utilizing microwave and infrared detection technology
* Universally compatible with any industrial door.
* Ability to disregard pedestrians and only detect large masses.
* Can detect traffic moving both towards and away from the door.
* Can be mounted between 6 ½ – 11 ½’.
We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
|
Technology |
Microwave Doppler Radar |
Active Infrared |
|---|---|---|
|
Detection Mode |
Motion |
Presence |
|
LED signal |
Green (Activation Relay) |
Red (Presence Relay) |
|
Transmitter |
24.150 GHz |
875 nm |
|
Transmitter Power Density |
< 5 mW / cm2 |
< 250 mW/m2 |
|
Max. Detection Field |
|
|
|
Output Hold Time |
0.5 s – 9 s |
0.5 s |
|
Min. Detection Speed |
2 in / s in sensor axis |
0 in / s |
|
Tilt Angle |
−8º – 22º |
15º – 45º |
|
Mains Frequency |
50 – 60 Hz |
|
|
Power Consumption |
< 3.5 W |
|
|
Relay Output |
2 relays (free of potential change-over contact) |
|
|
Installation Height |
|
|
|
Temperature Range |
−22 ºF – 140 ºF |
|
|
Dimensions |
3.75 in (W) × 4 in (H) × 5 in (D) |
|
|
Materials |
ABS & Polycarbonate |
|
|
Cable Length |
360 in (30 ft) |
|
|
Degree of Protection |
NEMA 4 / IP65 |
|
|
Norm Conformance |
R&TTE: 1999/5/EC; |
