FAAC 104100.5 - S450H CBAC Hydraulic Swing Single Kit
FAAC 104100.5 - S450H CBAC Hydraulic Swing Single Kit
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description
The FAAC S450H CBAC hydraulic swing gate opener is the ideal swing gate operator for residential applications. A versatile gate opener, this operator features a sleek design and hybrid technology that allows it to blend 24 V and hydraulic operation.
This gate opener can move gates up to 1100 pounds and 14 feet long.

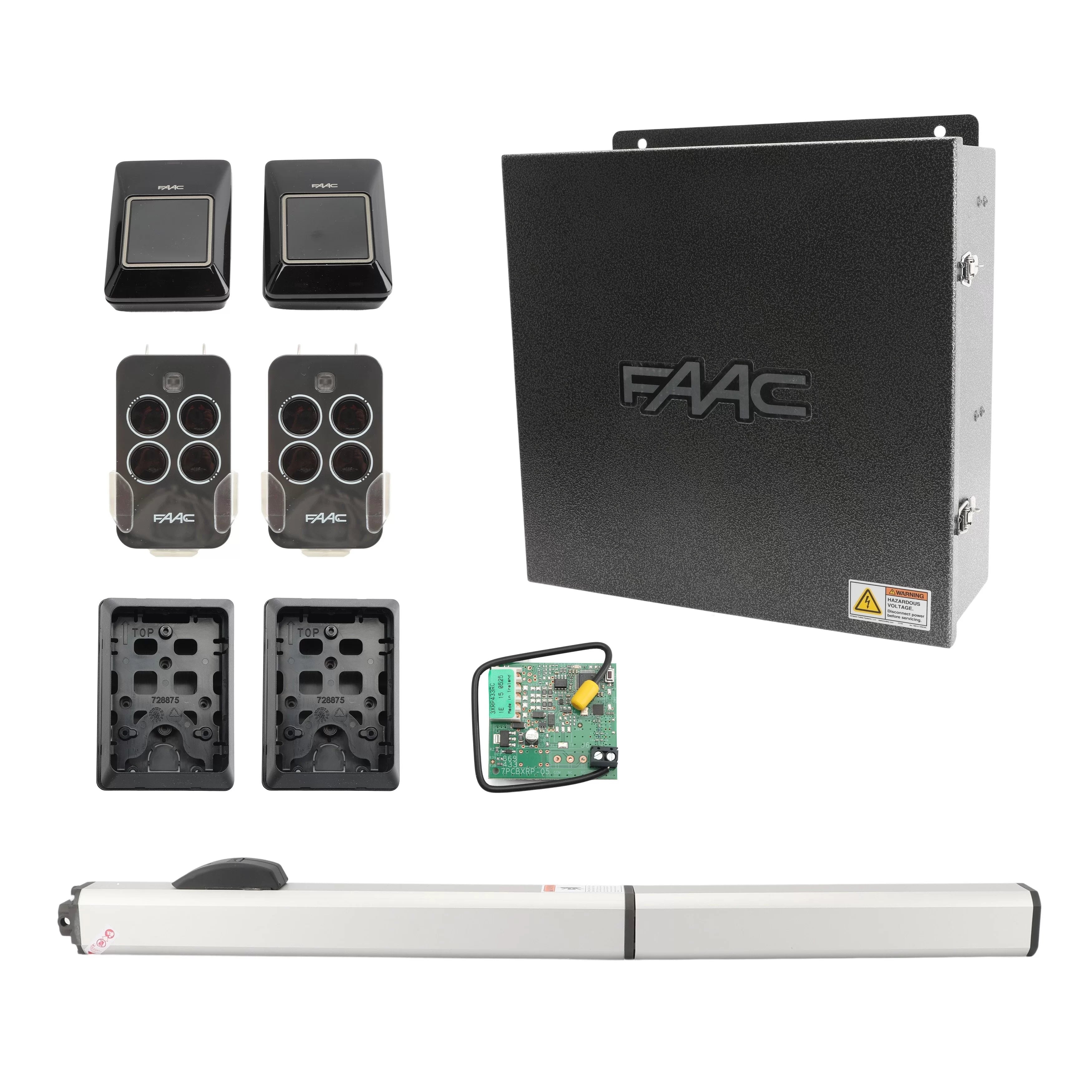

Kit Includes:

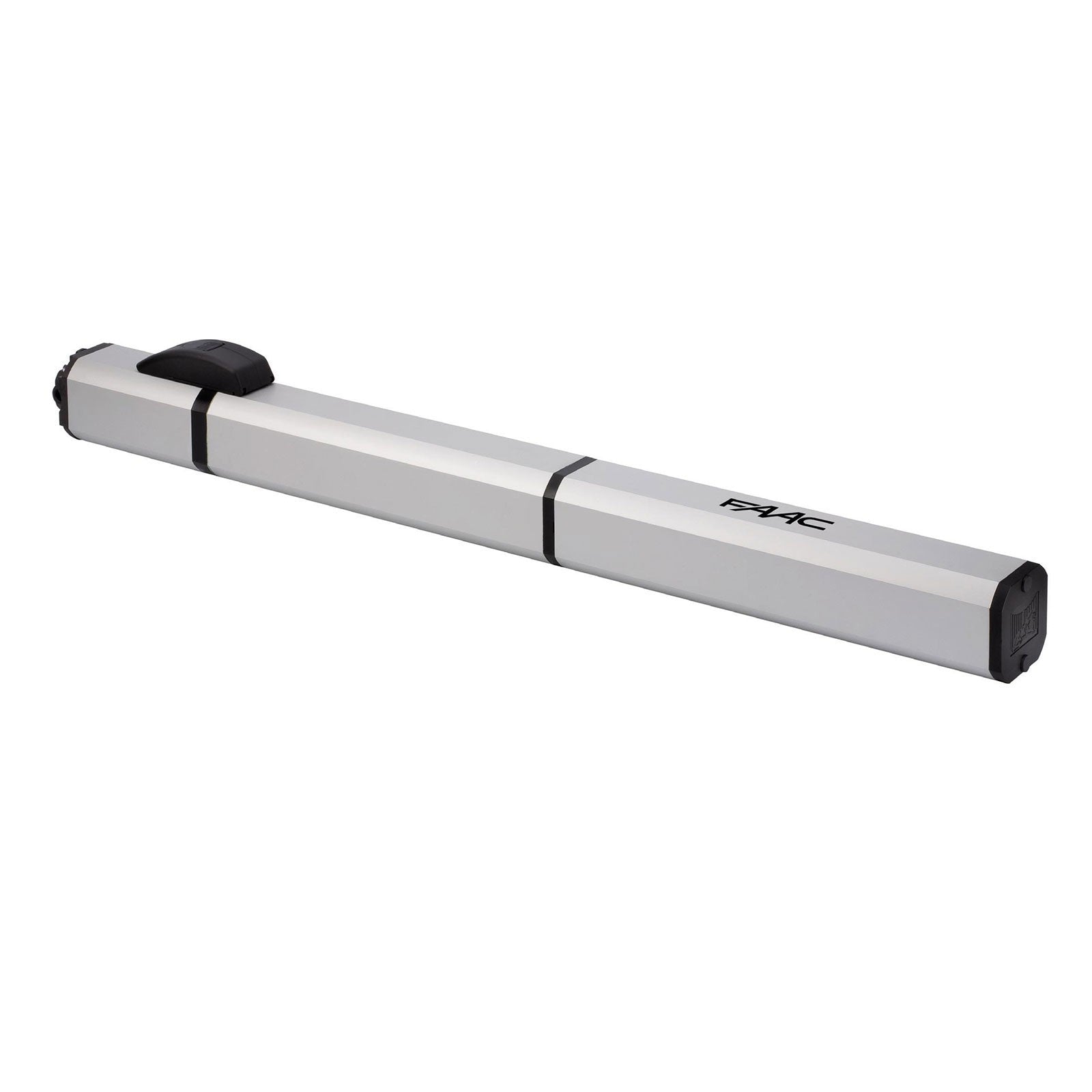

- (1) S450H CBAC Operator

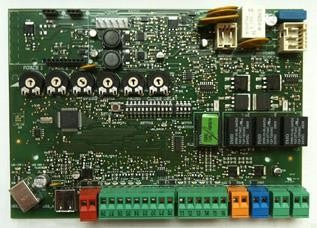

- (1) E024U Control Board

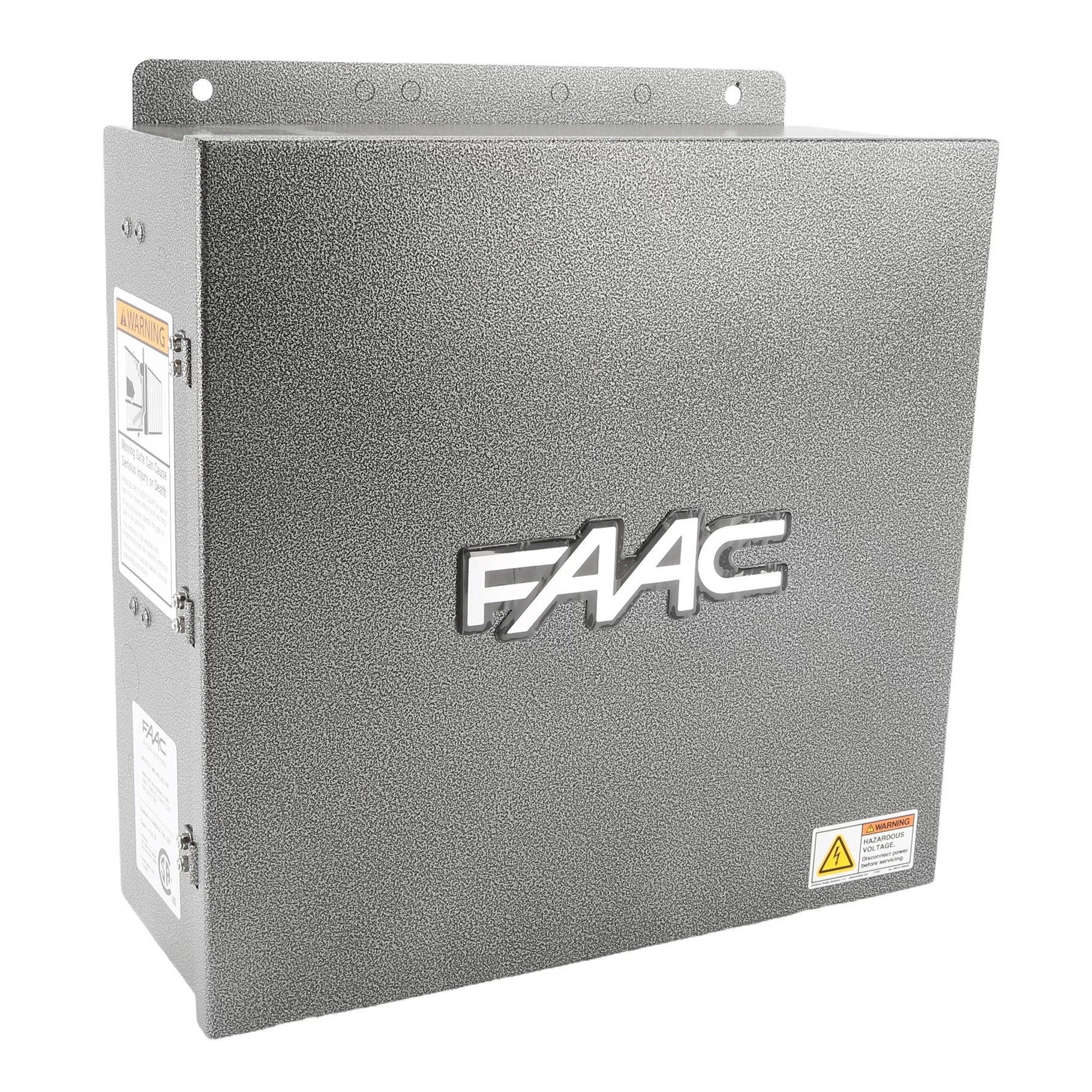

- (1) 18" x 16" Enclosure
- (2) Batteries 12V 8 Ah
- (1) Power Supply
- (1) Receiver 433 RC Plug-In
- (2) 4-Channel Transmitters XT4 433 RC
- Hybrid technology
- Integrated encoder to control operator position
- Useful stroke 12.2 in (311 mm)
- New "multi-position" bracket for non-welded applications
- Opening/Closing mechanical stops included
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in the event of a power outage
- UL325 Listed
- Model: CBAC
- Input Voltage: 24 VDC
- Power: 60 W
- Current: 7 A
- Max Thrust: 1124 lbf (500 daN)
- Rod Stroke: 12.2 in (311 mm)
- Max Rod Extension Speed: 1 in/s (2.5 cm/s)
- Max. Leaf Width: 14 ft (4.3 m)
- Max. Leaf Weight: 1100 lb (500 Kg)
- Operating Ambient Temperature: -4°F ÷ 131°F (-20°C ÷ +55°C)
- Use Frequency: Continuous
- Operator Dimensions: 43.8 x 3.3 x 4.7 in (1113x85x119 mm)
- Projection Class: IP 55
- Hydraulic Locks: Installed
