FAAC 10420012 - 422 CBAC Operator Only w/ Regular Oil - 115V
FAAC 10420012 - 422 CBAC Operator Only w/ Regular Oil - 115V
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

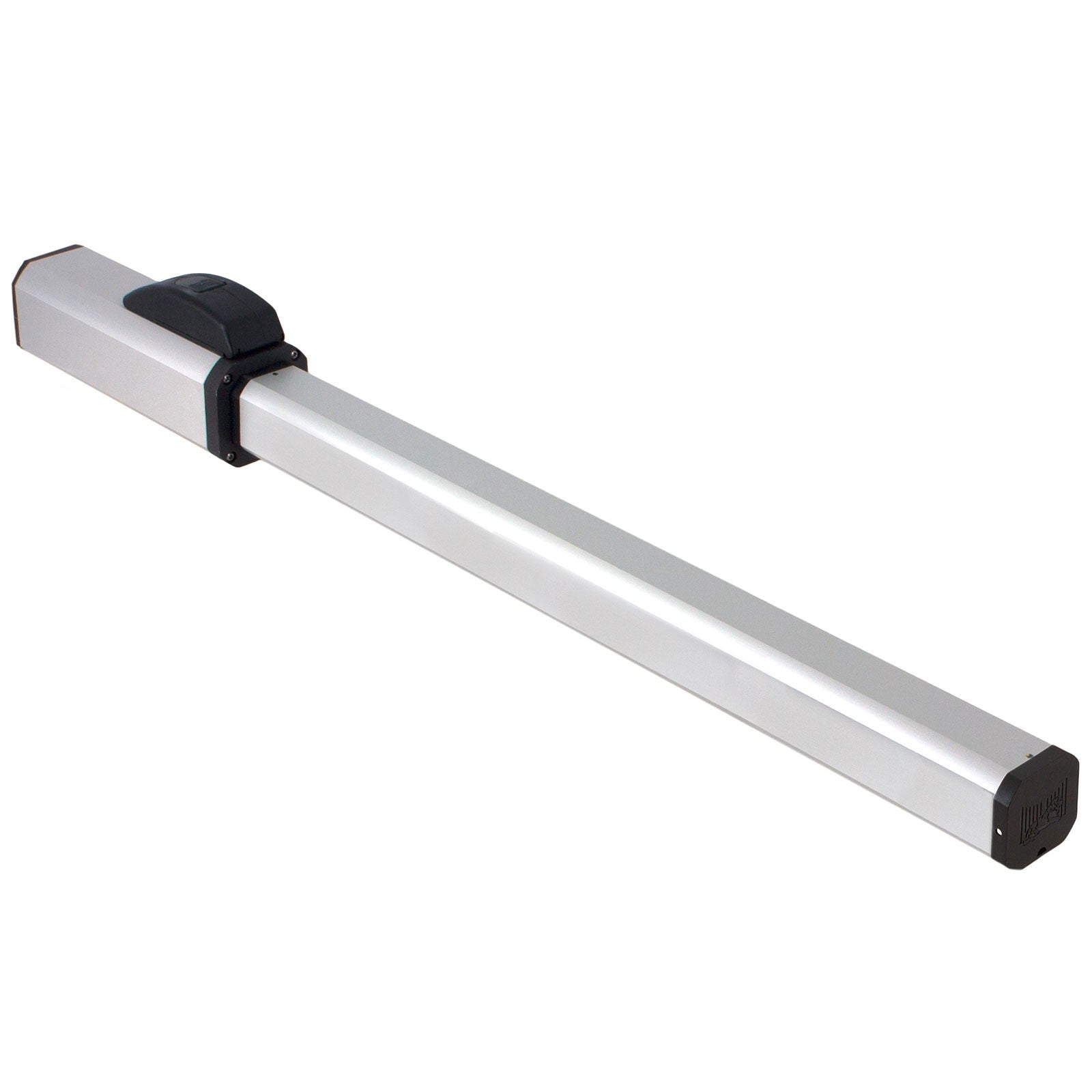

The FAAC 422 CBAC, part 10420012, is a 115 VAC single-phase hydraulic swing gate operator for residential and light commercial gates up to 10 ft and 900 lb per leaf. It is filled with regular FAAC hydraulic oil.

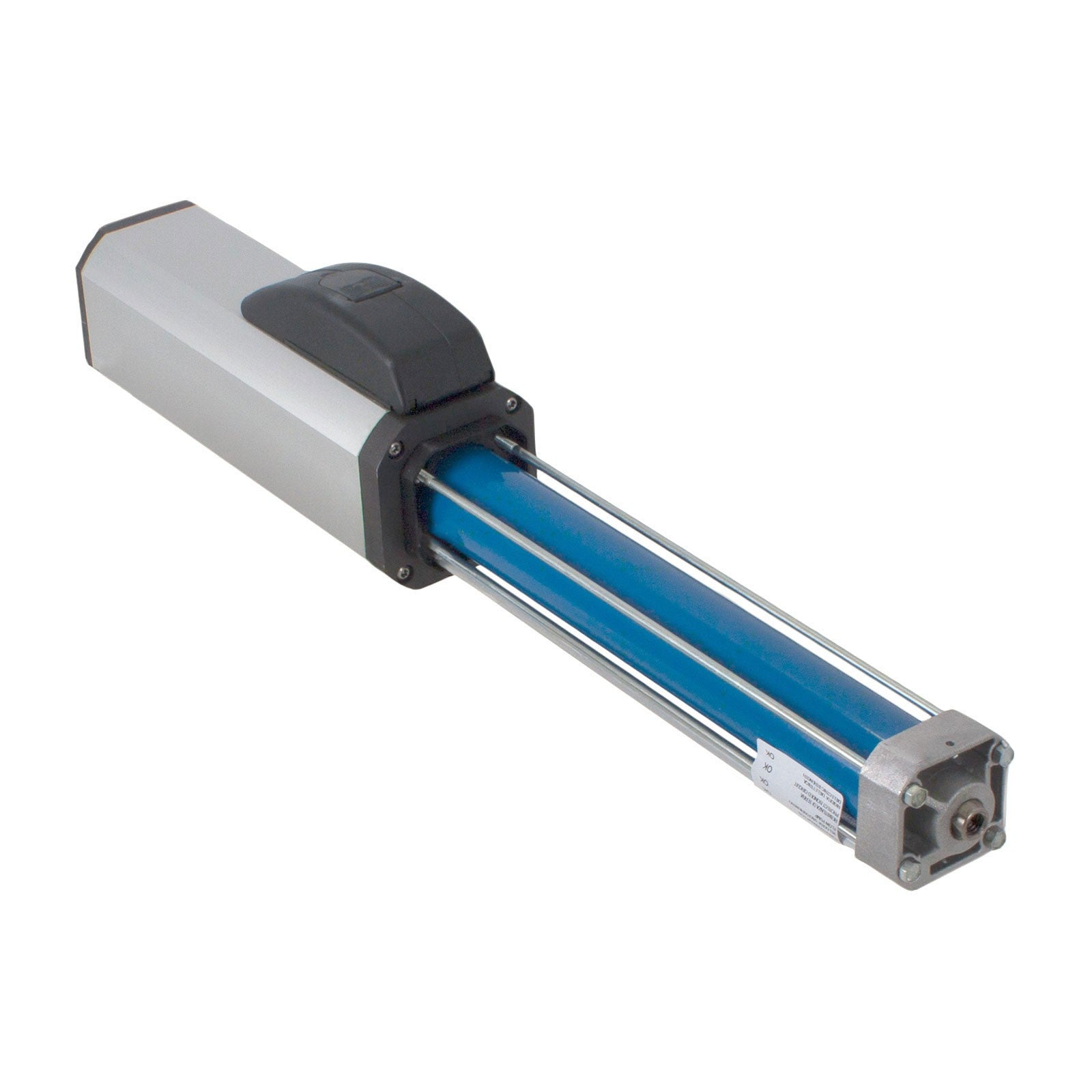

220 W motor driving a hydraulic pump and ram, 1,124 lbf thrust, about 0.5 in/s rod speed. Hydraulic lock holds the gate in the open and closed positions. Key-protected manual release, self-lubricating, IP55 rated. Up to 55 cycles per hour.
What's Included

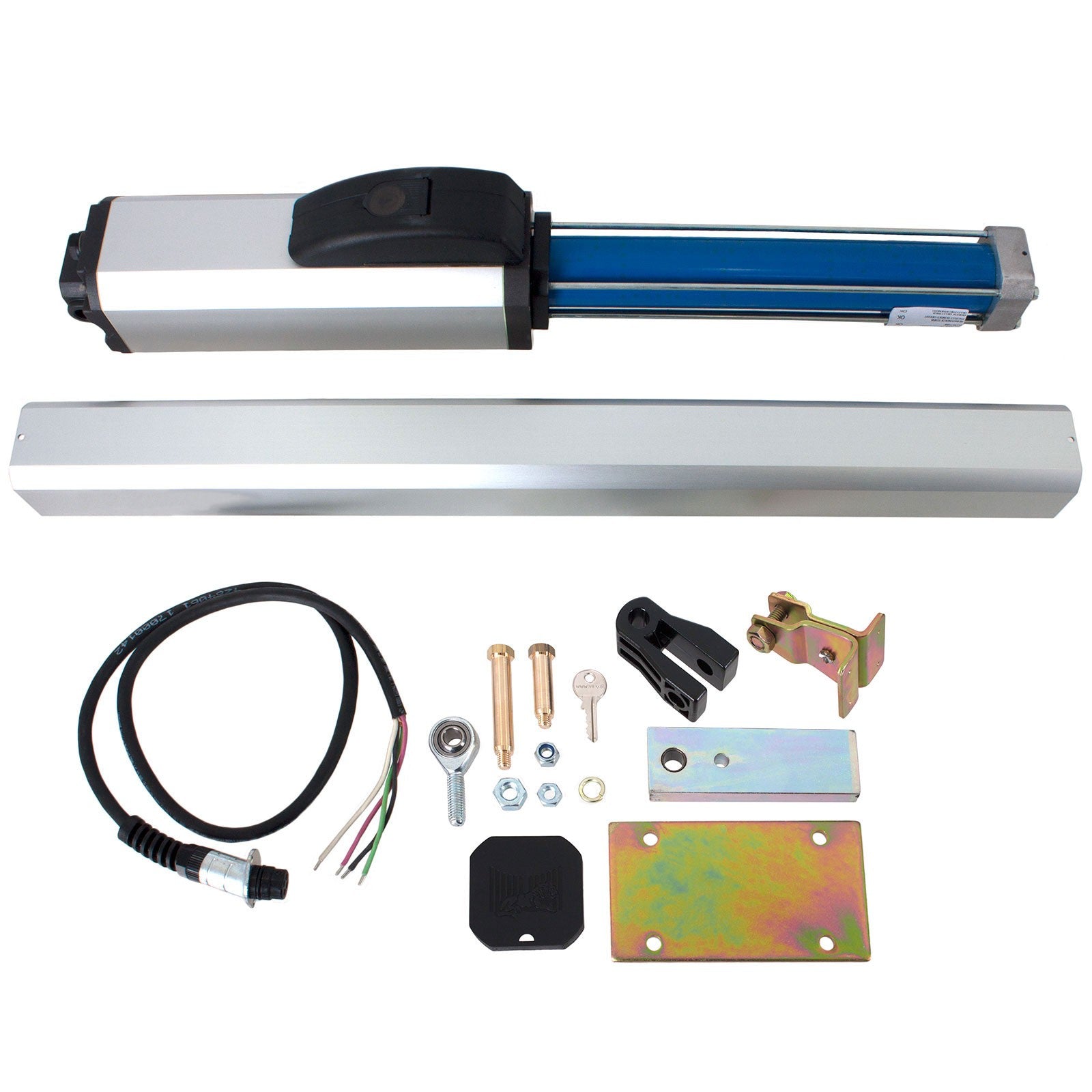

- (1) 422 CBAC operator with regular oil, 115 VAC
- Operator only: no control board, enclosure, radio or safety devices.
Before You Order
- Requires a 115 VAC FAAC control board such as the 455D.
- Use as the second operator to turn a 422 CBAC single kit into a dual (bi-parting) system, or as a replacement operator. Match the voltage and oil type of the existing operator.
- No battery backup option on this AC system.
- For cold-climate sites, an Arctic oil version is available.
- Versatile hydraulic operator for residential and light commercial application
- Hydraulic lock of the gate in opened and closed positions

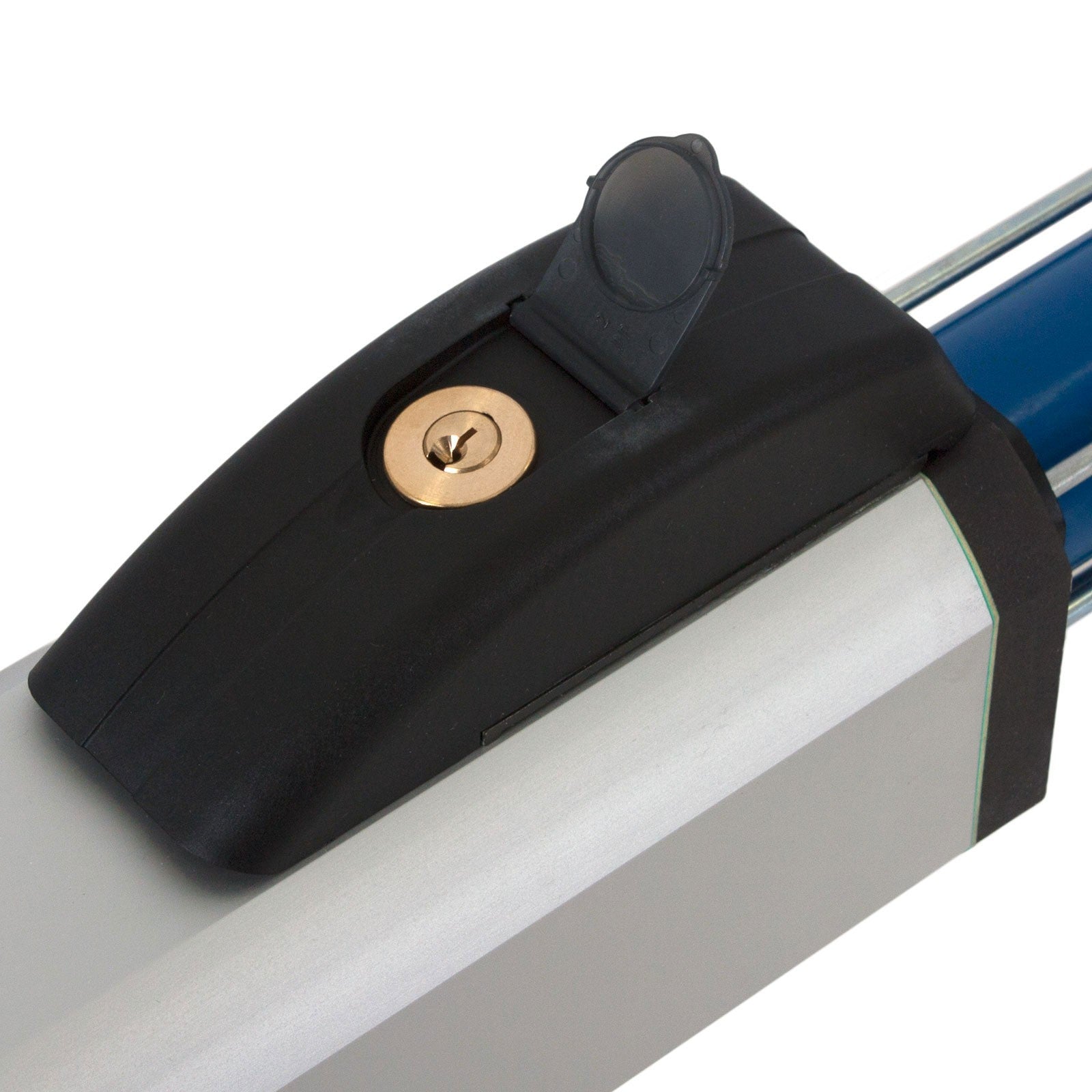

- Key protected manual release
- Quiet operation
- Self lubricating for long life
- Input Voltage: 115 VAC (+10% -6%)
- Power: 220 W
- Current: 2 A
- Motor Rotation Speed: 1400 r.p.m.
- Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
- Pump Flow Rate: 1 l/min
- Traction and Thrust Force: 1124 lbf (500 daN)
- Leaf Max. Width: 10 ft (3 m)
- Leaf Max. Weight: 900 lb (410 Kg)
- Usage Frequency (cycles per hour): 55
- Operating Ambient Temperature: -4°F to 131°F (-20 °C to +55 °C)
- Thermal Protection on Motor Winding: 248 °F (120 °C)
- Protection Class: IP 55
- Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)
