FAAC 10420012.5

422 CBAC 115V Std Basic Single Kit

Are you in the market for a durable swing gate opener that can cycle up to 55 times an hour? The 422 CBAC hydraulic swing gate opener from FAAC features quiet operation, manual release, and is self-lubricating to ensure long life.

This gate opener kit is perfect for residential homes, including entrances and exits at condominiums. Operates swing gates up to 10 feet long and 900 lbs.

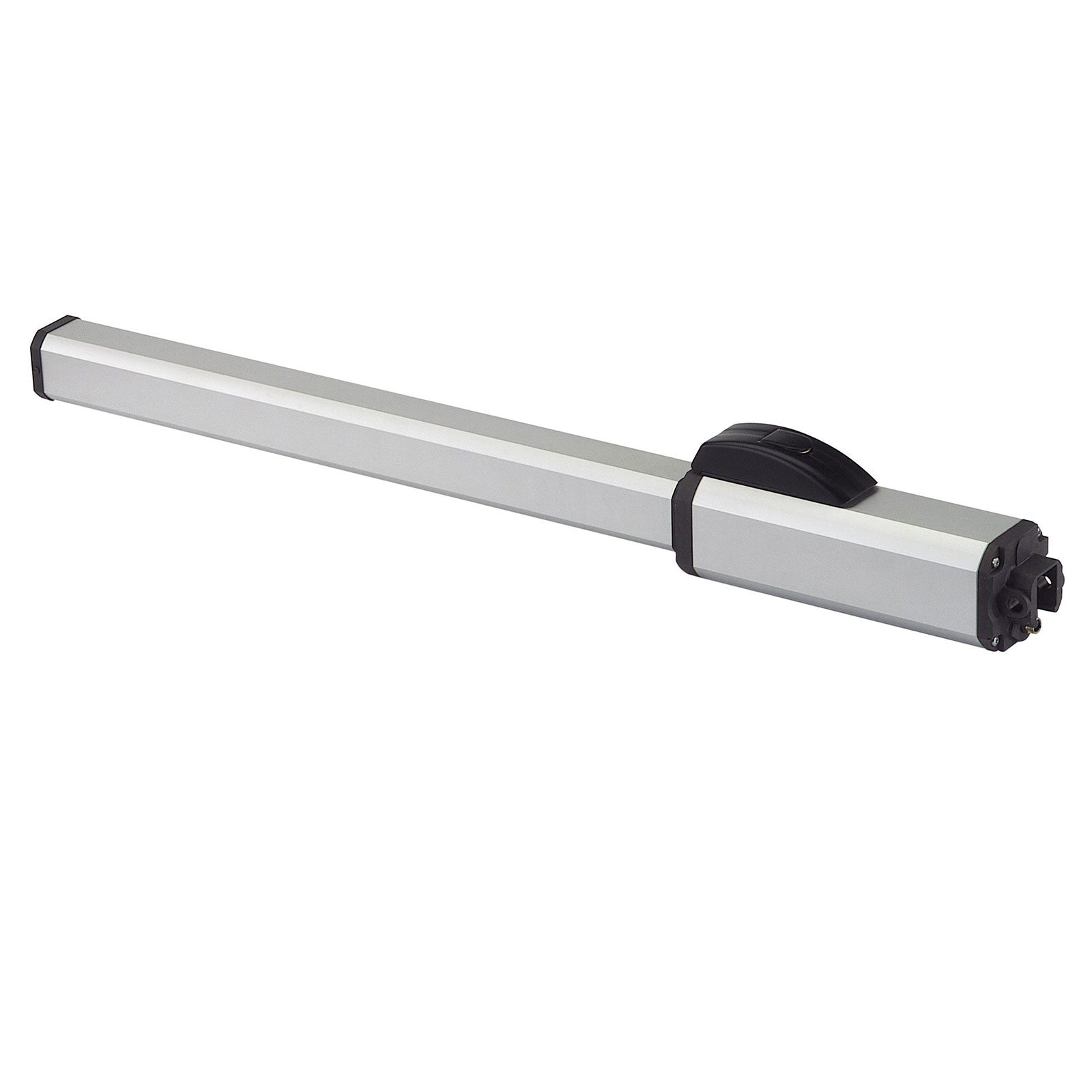

  • (1) 422 CBAC Operator

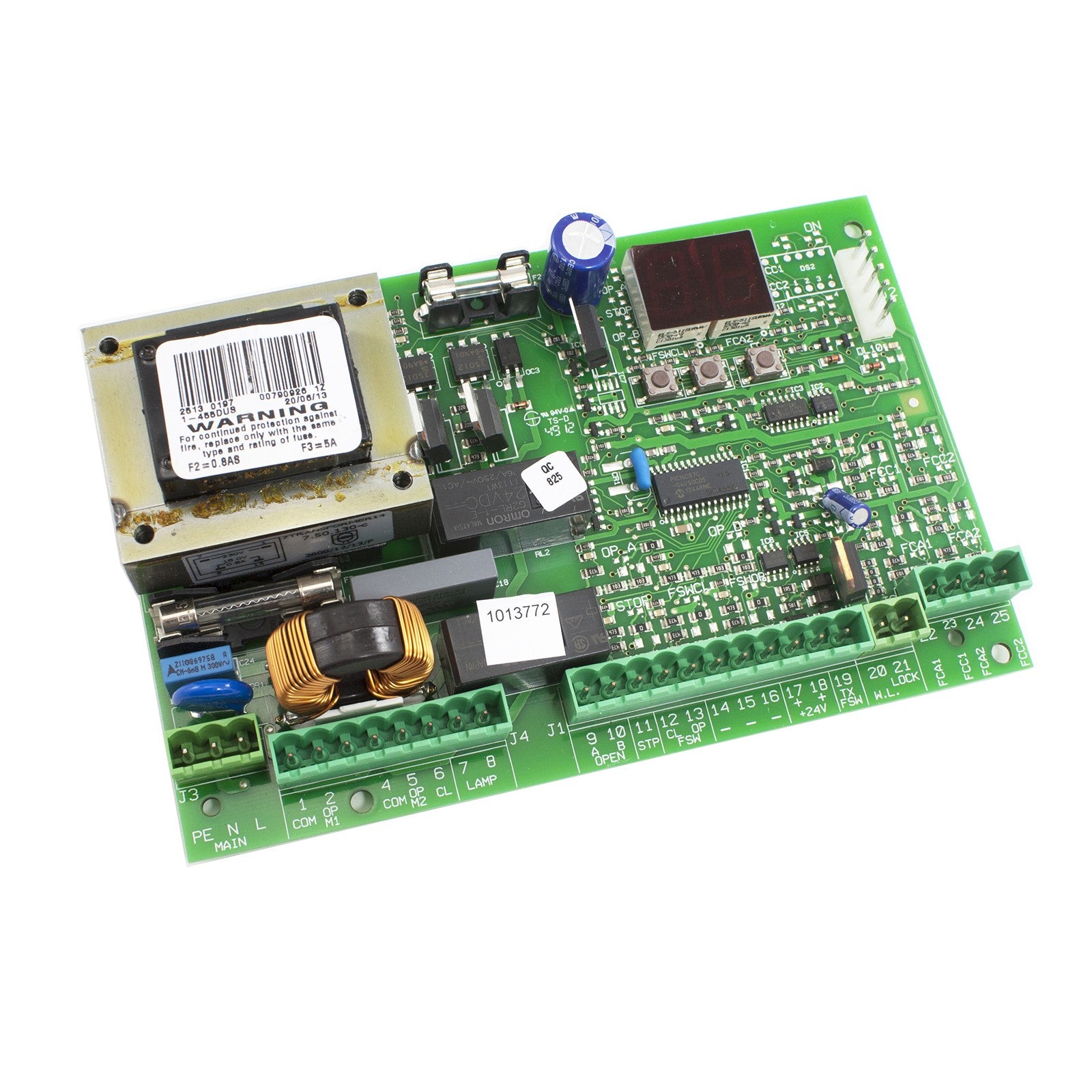

  • (1) 455D Control Board - 115V
  • (1) 14" x 16" Pre-Wired Enclosure
  • (1) Receiver - 433 RC Plug-In
  • (2) 4-Channel Transmitters - XT4 433 RC
  • Versatile hydraulic operator for residential and light commercial application
  • Hydraulic lock of the gate in opened and closed positions
  • Key protected manual release
  • Quiet operation
  • Self lubricating for long life
  • Input Voltage: 115 VAC (+10% -6%)
  • Power: 220 W
  • Current: 2 A
  • Motor Rotation Speed: 1400 r.p.m.
  • Rod Extension Speed: 0.5 in/sec (1.3 cm/sec)
  • Pump Flow Rate: 1 l/min
  • Traction and Thrust Force: 1124 lbf (500 daN)
  • Leaf Max. Width: 10 ft (3 m)
  • Lead Max. Weight: 900 lb (410 Kg)
  • Usage Frequency (cycles per hour): 55
  • Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
  • Thermal Protection on Motor Winding: 248 °F (120 °C)
  • Protection Class: IP 55
  • Dimensions (L x D x H): 38.8 x 4.7 x 3.3 in (987x120x85mm)
