FAAC 108757 - 750 Drive Unit - 100°
FAAC 108757 - 750 Drive Unit - 100°
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description
The Model 750 hydraulic swing gate operator is designed specifically for underground installation in residential applications. Because of It’s power and invisibility, the 750 is ideal for large, ornamental gates.
Hydraulic swing gate operators are inherently safer than other types of operators because they have fewer “pinch points.” In addition, the FAAC 750 operator is equipped with a hydraulic bypass valve for extra entrapment protection and a manual release that allows you to operate your gate if there is a power failure. A battery back-up unit is also available.
The 750 hydraulic system can hydraulically lock your gate in the opened and/or closed positions.
Includes:

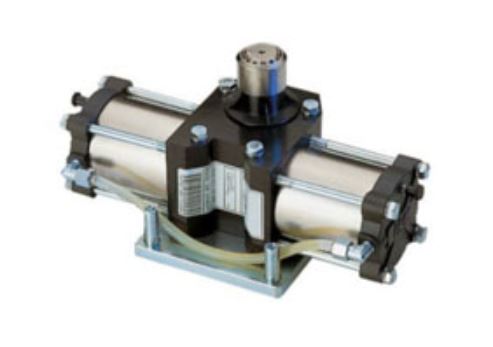

- Drive unit
- Installation accessories

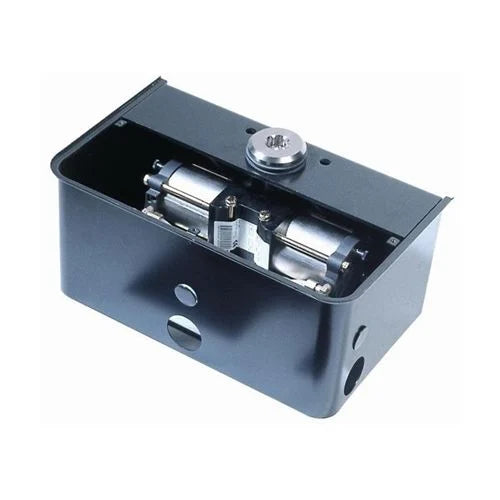

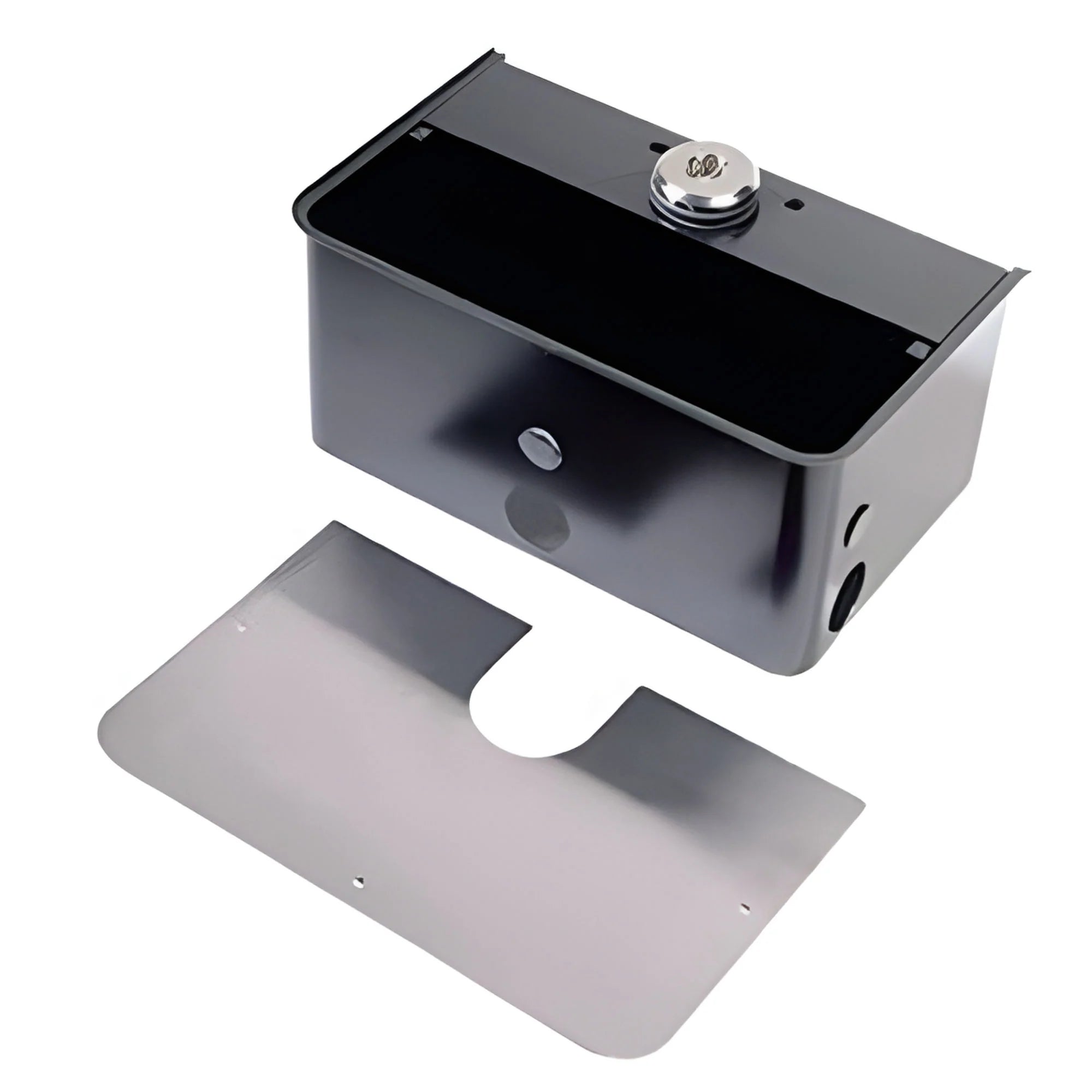

- Metal enclosure with stainless steel cover
- Extra oil
- Invisible, quiet operator with separate drive unit and pump motor
- The ideal solution for artistic gates
- Wide and versatile range from residential to commercial
- Hydraulic lock of the gate in open and closed positions
- Quiet operation
- Self lubricating for long life
- Input Voltage: 115VAC (+6% -10%)
- Power: 220 W
- Current: 2A (120V) - 1 A (230V)
- Motor Rotation Speed: 1400 r.p.m.
- Pump Flow Rate: 0.75 l/min
- Operating Ambient Temperature: 4°F ÷ 131°F (-20 °C to +55 °C)
- Protection Class: IP 55
- Thermal Protection on Motor Winding: 248 °F (120 °C)
- Use Frequency (cycles per hour): 45
- Dimensions: 9.6 x 13.9 x 5.5 in (245x353x141mm)
