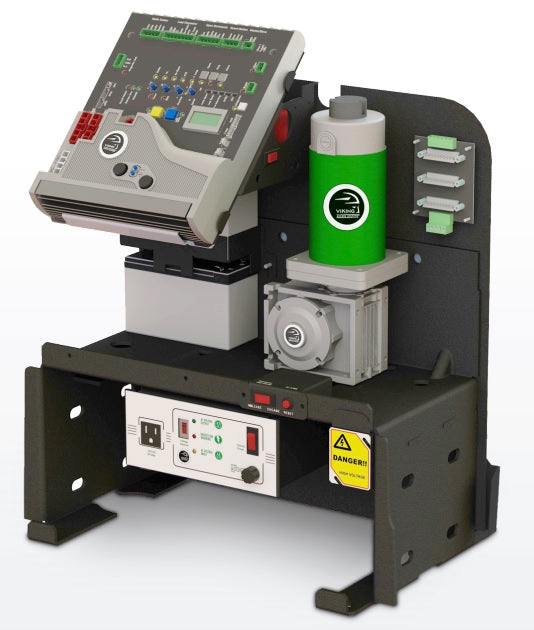

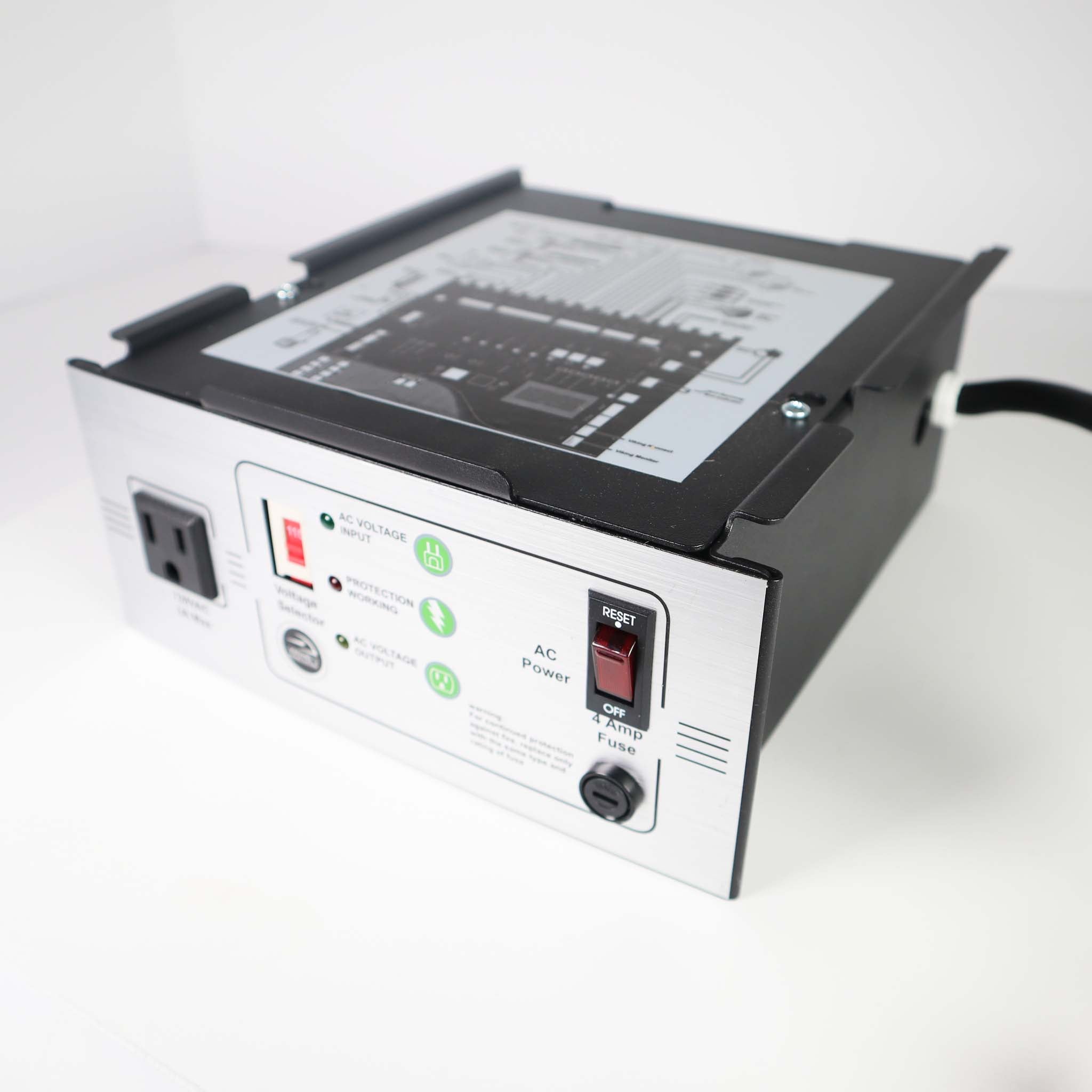

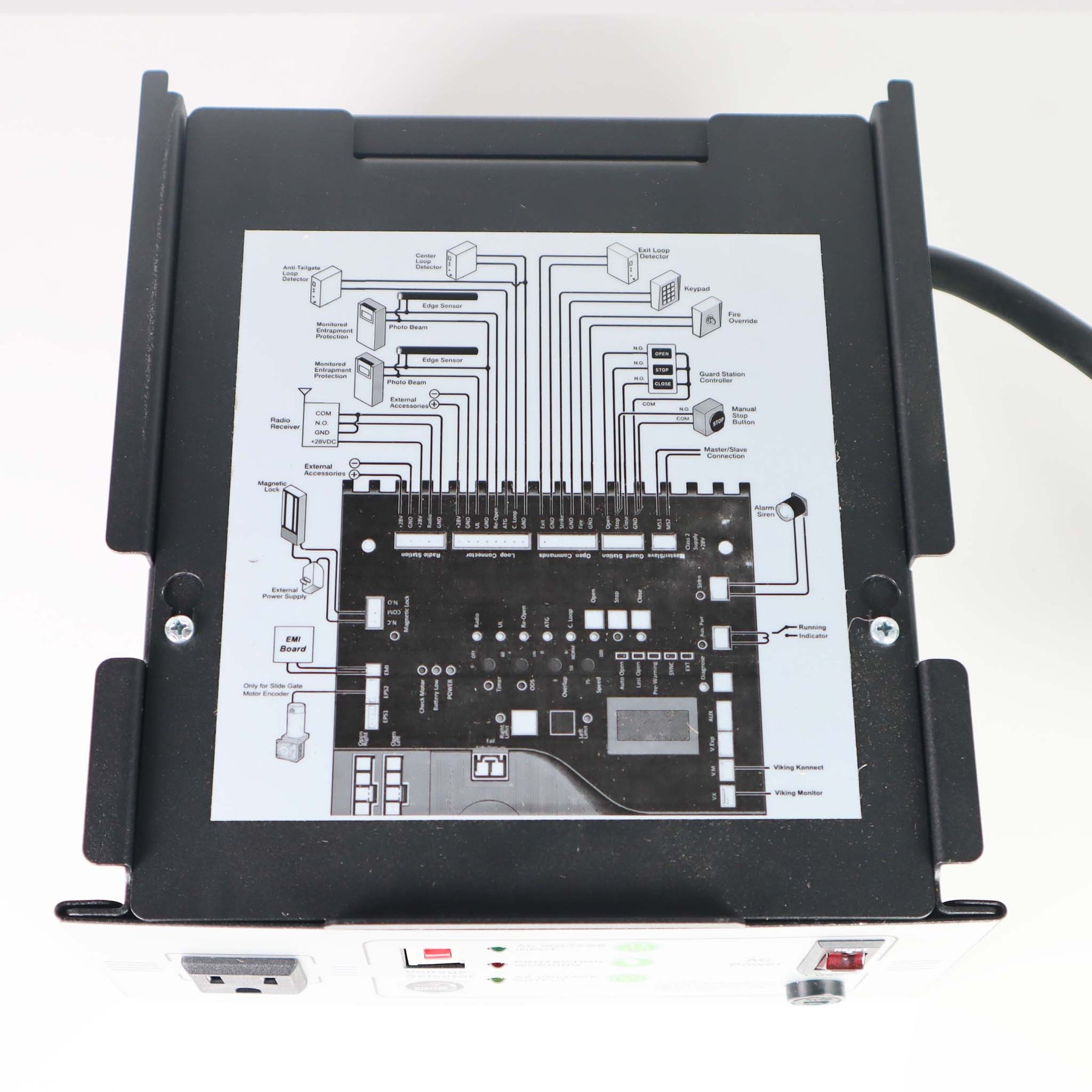

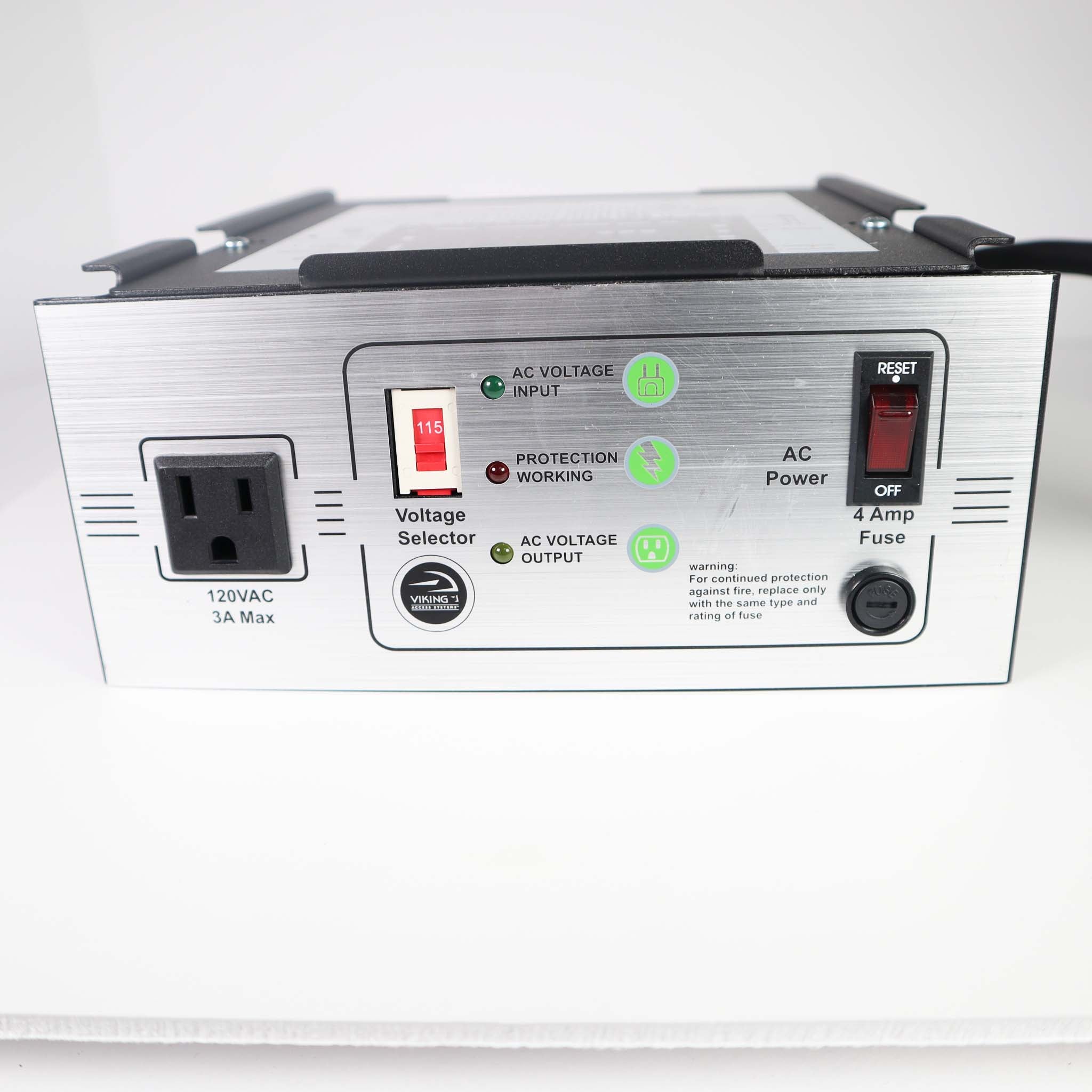

Viking part number VNXMPB is the modular power box assembly for the H-10 and L-3 slide gate operators built after 2013. It takes 115 or 230 VAC single-phase input (selectable) and supplies 24 VAC to the operator. It includes a 120 VAC receptacle for plug-in transformers.
The box is removable. For a low-voltage install, mount it at the nearest 115 or 230 VAC single-phase source and run its 24 VAC output to the green and white wires of the operator power harness. Maximum run is 400 ft with 10 AWG wire. Viking also lists the VNXMPB as the 24 VAC source for the low-voltage option on G-5, X-9, i-8, K-2 and R-6 operators.
