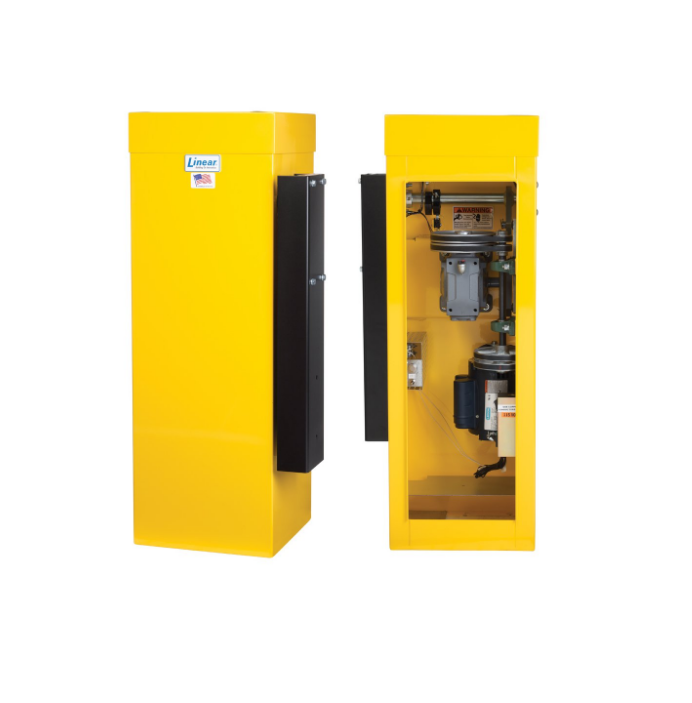

Linear OSCO BGUS-14-221 Barrier Gate Operator

Linear OSCO BGUS-14-221 Barrier Gate Operator

  • Manufacturer: Linear
  • Item Number:

  Add to cart to see price

Comes with 14ft wood arm

  • Integral APeX Controller
  • Power on/off switch
  • Duplex receptacle (115 VAC units only)
  • 24 VDC permanent magnet motor (BGUS-D only)
  • 115 VAC supply converted to 24 VDC for motor and controls (BGUS-D only)
  • Dual batteries charged by 115 VAC or optional solar panels (BGUS-D only)
  • On-board APeX Controller three-button control station
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches
  • Lockable and removable front cover for easy access
  • Built-in maximum run timer and auto close timer
  • Master/second with simple 3-wire connection
  • Quad V-belt
  • Heavy-duty right angle gear reducer
  • Heavy-duty harmonic link with oil impregnated bronze bushings
  • Motor has manually-resettable overload
  • Full system capable for access control and reversing devices
  • Weather resistant galvanized steel cabinet with powder coat finish
Warranty 5 yrs
Max. Duty Cycle Continous
Arm Options 14 ft. wood arm
Arm Options 16 ft. wood arm
Arm Options 18 ft. wood arm
Model HP Voltage & Phase Arm Size Application
BGUS-14-211 1/2 115-1 14 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-14-211 1/2 115-1 16 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-14-211 1/2 115-1 18 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-14-221 1/2 230-1 14 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-14-221 1/2 230-1 16 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-14-221 1/2 230-1 18 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-D-14-211 1/2 DC Battery Backup, 115-1 Supply or DC Solar 14 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-D-14-211 1/2 DC Battery Backup, 115-1 Supply or DC Solar 16 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
BGUS-D-14-211 1/2 DC Battery Backup, 115-1 Supply or DC Solar 18 ft Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC and accessories
