LINEAR OSCO HSLG-443 3/4HP SLIDE GATE OPERATOR

LINEAR OSCO HSLG-443 3/4HP SLIDE GATE OPERATOR

  • Manufacturer: Linear - OSCO
  • Item Number:

  Add to cart to see price

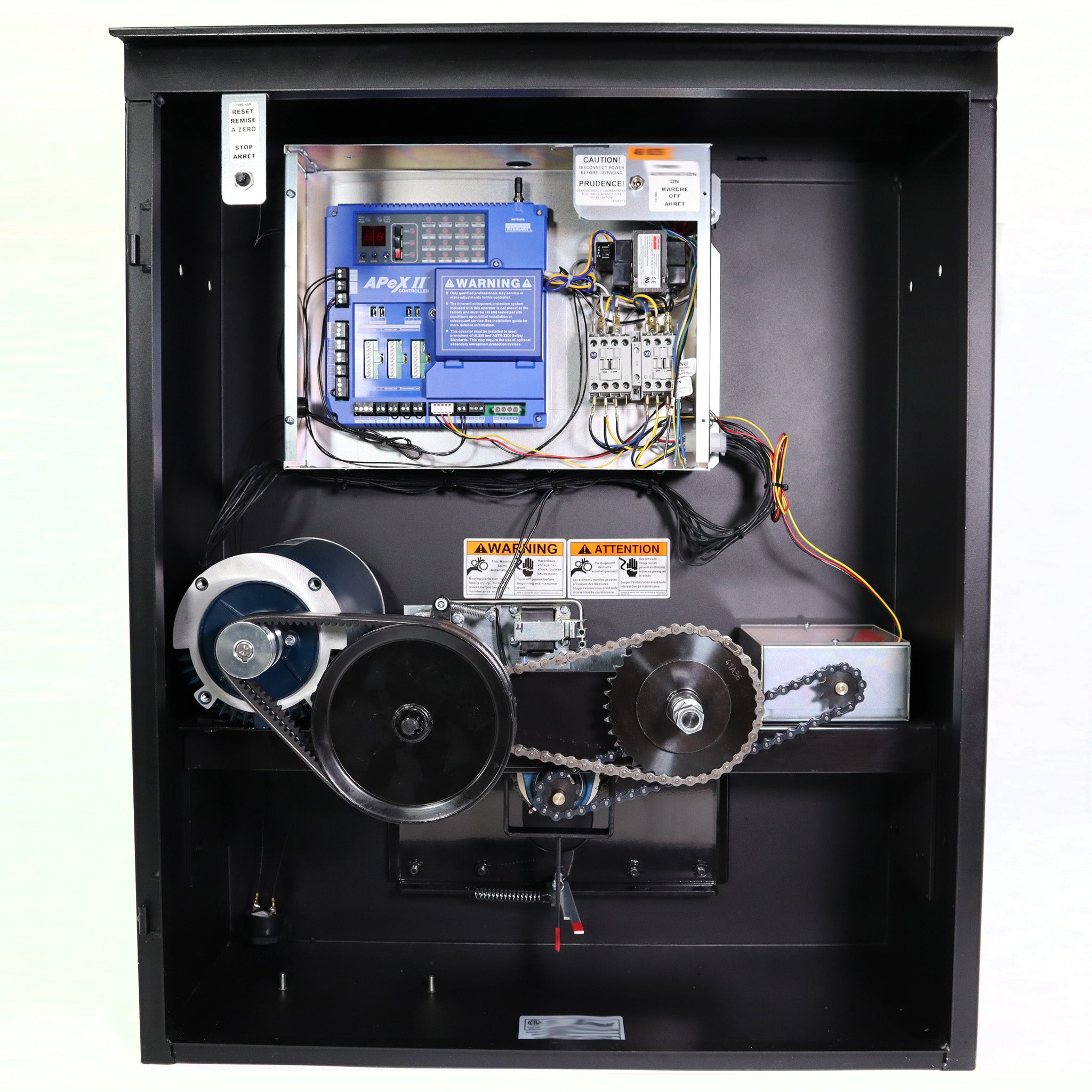

Linear OSCO HSLG-443 3/4HP Slide Gate Operator

  • Integral APeX Controller
  • Double V-belt to chain reduction
  • #40 roller chain
  • 1/2, 3/4, or 1 HP motor
  • All voltages, single or three-phase
  • Emergency manual disconnect handle

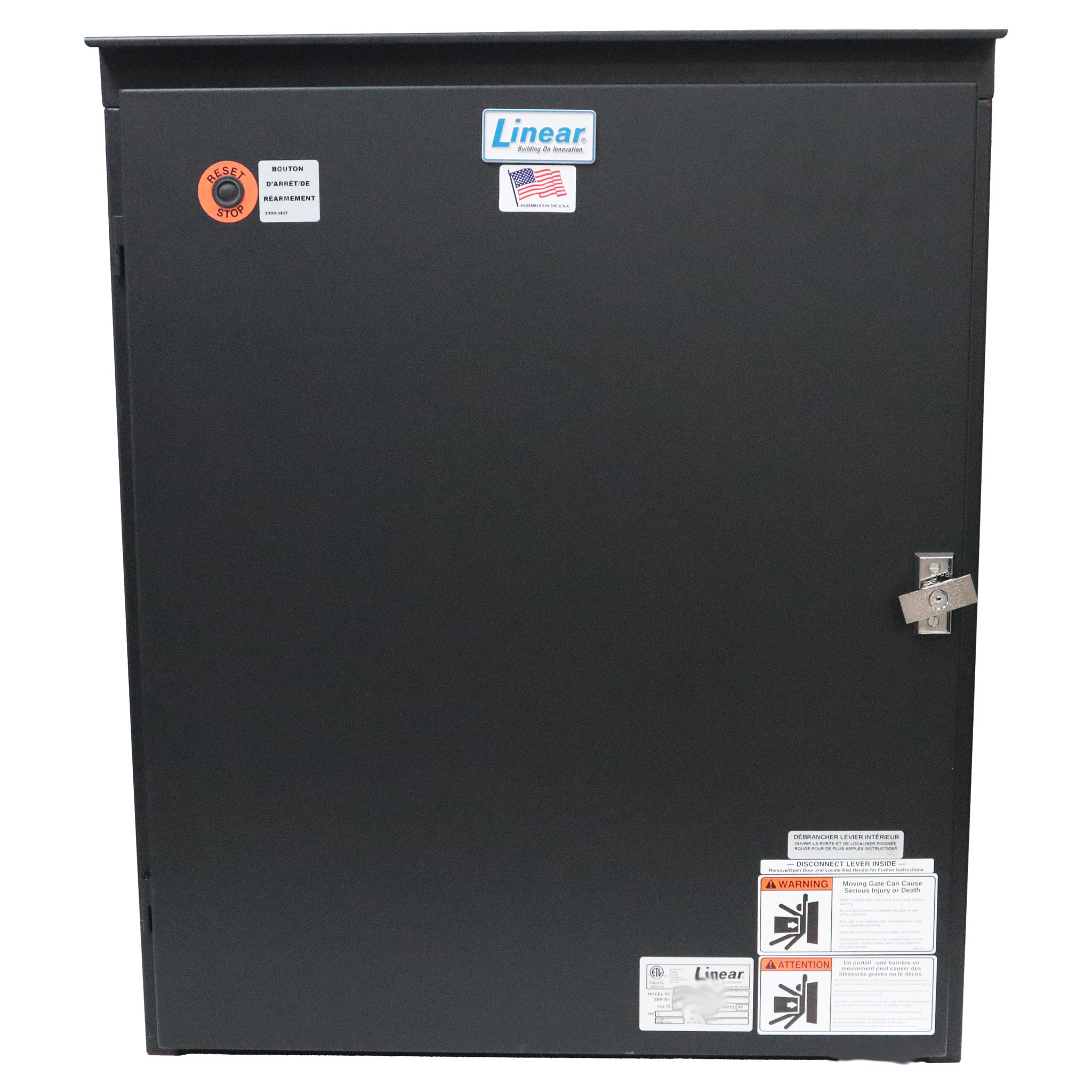

  • Powder coat finish
  • Post mount standard; pad mount optional

Electrical

  • Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • Integrated warning beeper during gate movement
  • 15 diagnostic LEDs on board for ease of setup and troubleshooting
  • Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm

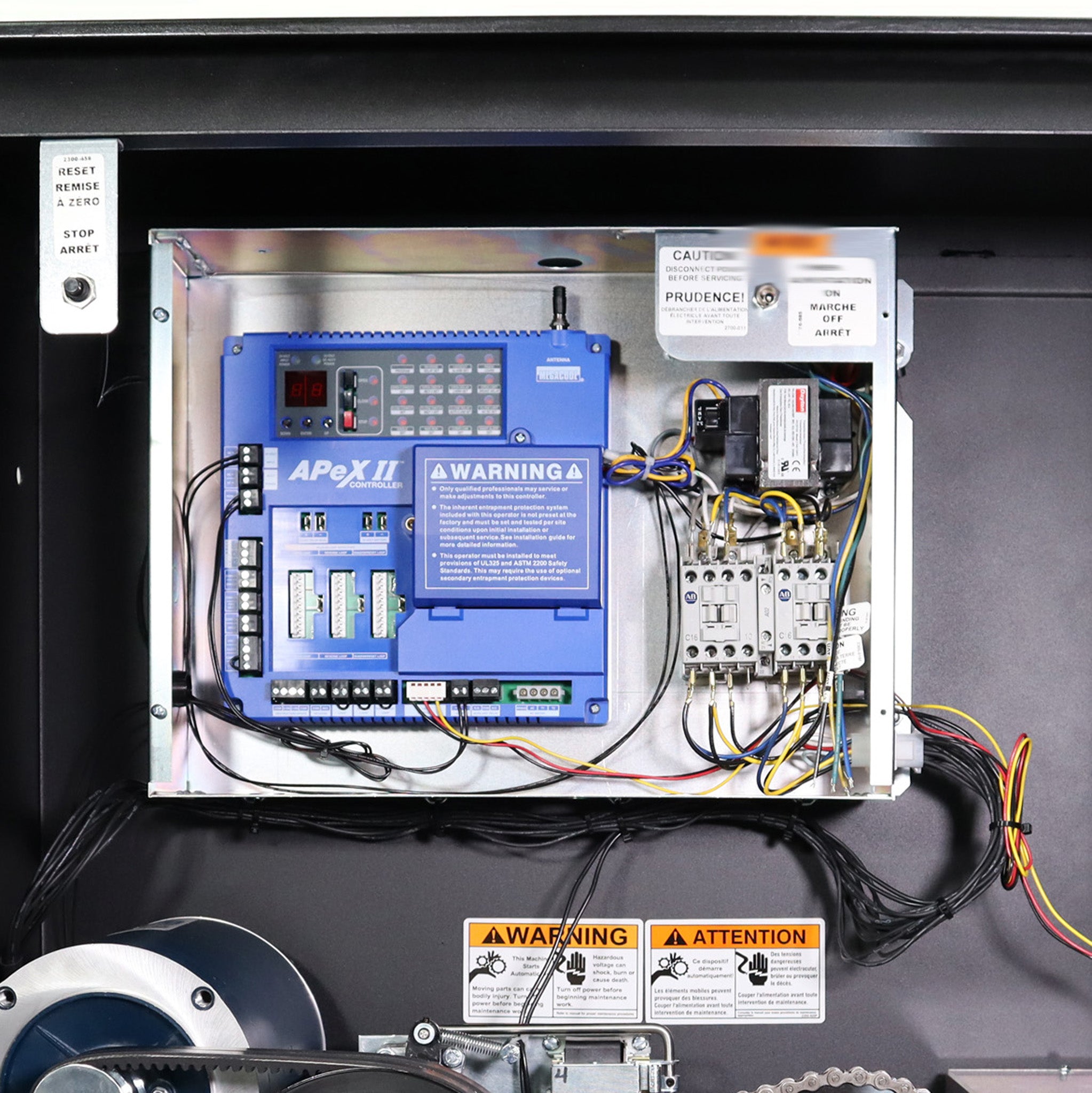

  • On-board APeX Controller three-button control station
  • AC and DC power available for access control accessories
  • All accessory connections 24 VDC
  • Solenoid disc brake
  • Duplex receptacle on 115 VAC units
  • Built-in master/slave capability using 3-wire shielded cable

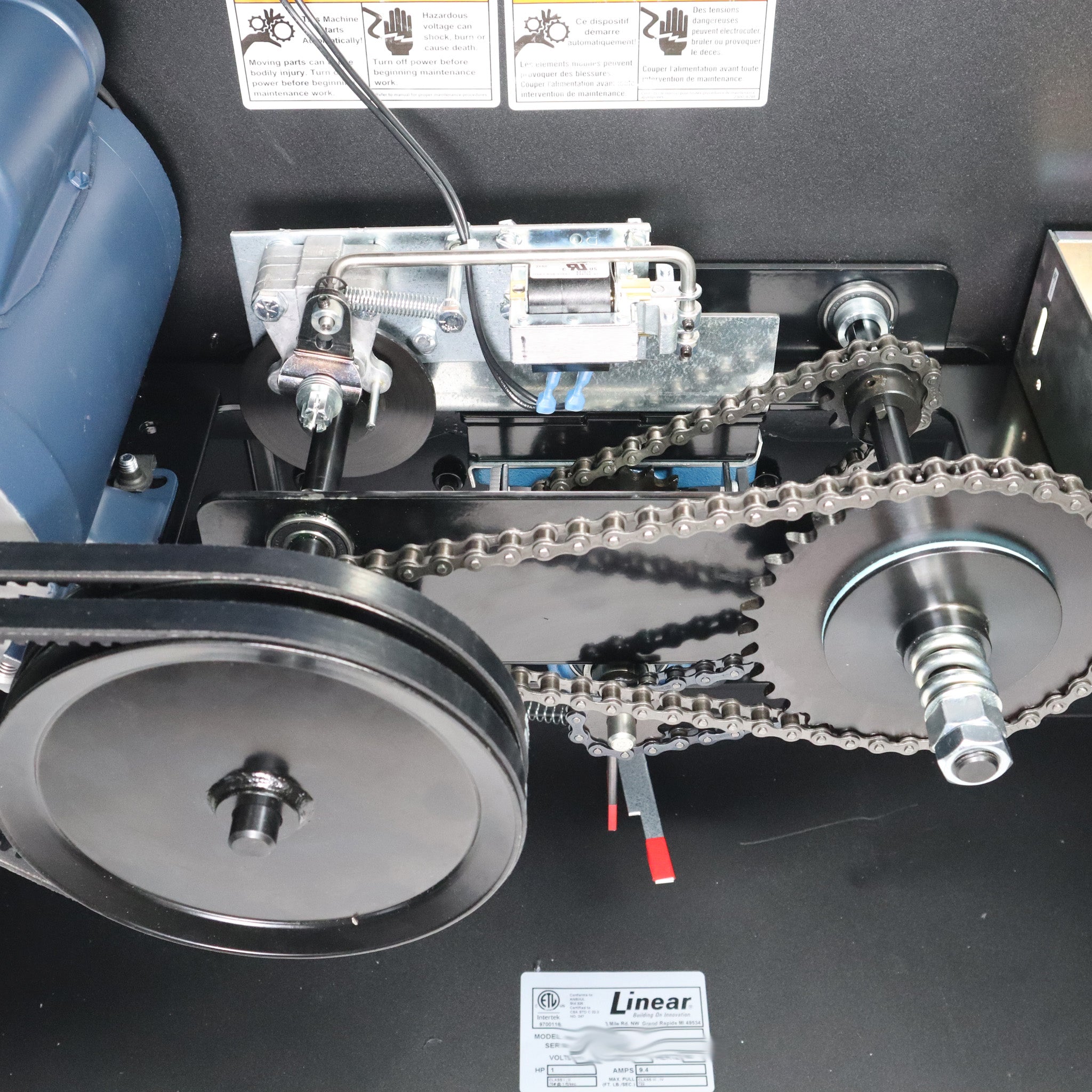

Mechanical

  • Heavy-duty steel chassis

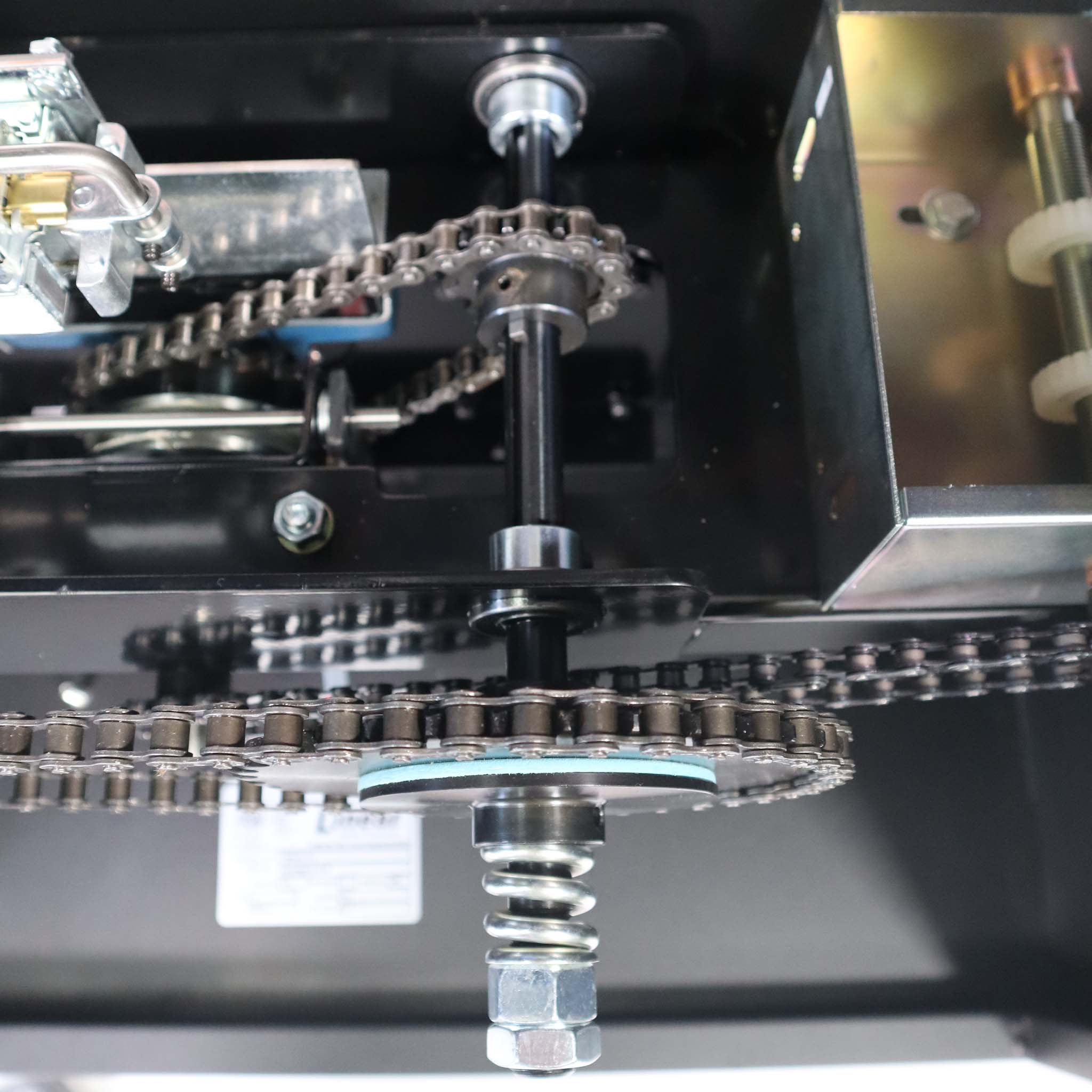

  • Adjustable torque limiter

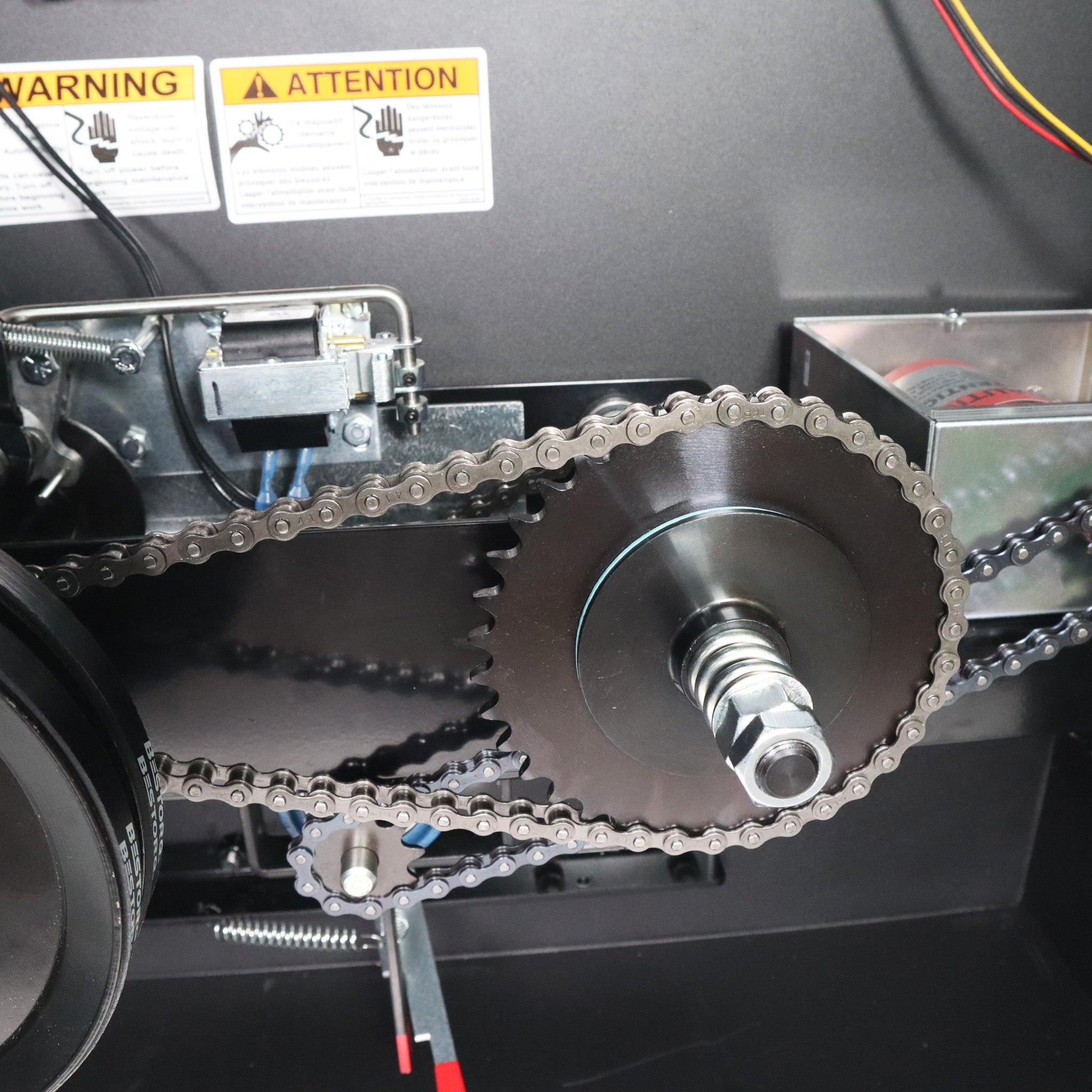

  • #40 roller chain and sprockets
  • Efficient double V-belt drive
Model HP Voltage & Phase Max Gate Length Max Gate Weight
HSLG-443 3/4 460 Three-Phase 35 ft 1000 lbs

Schematic Diagram(s)


Order Replacement Parts
