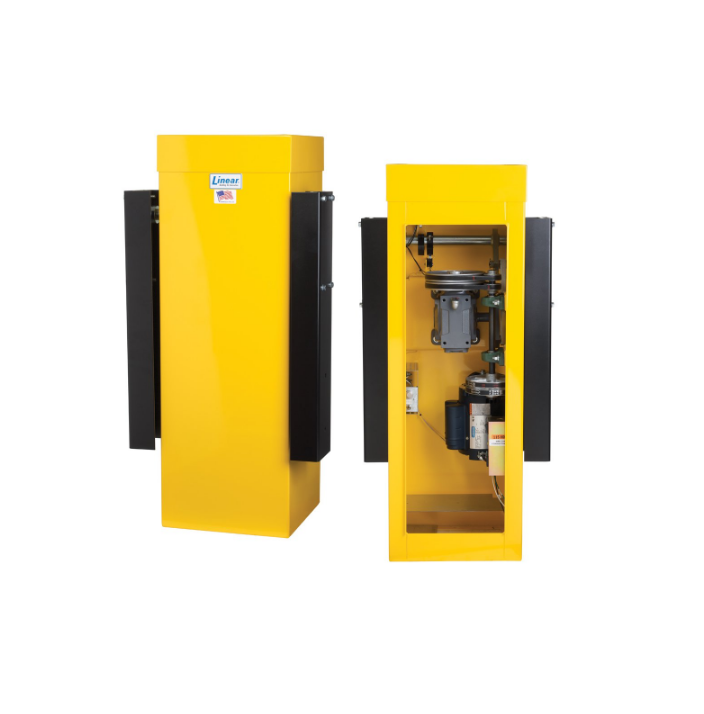

Linear OSCO SG-D-25-211 Barrier Gate Operator
Add to cart to see price
Comes with 25ft wood arm
- Integral APeX Controller
- Power on/off switch
- Duplex receptacle (115 VAC units only)
- 24 VDC permanent magnet motor (SG-D only)
- 115 VAC supply converted to 24 VDC for motor and controls (SG-D only)
- Dual batteries charged by 115 VAC or optional solar panels (SG-D only)
- On-board APeX Controller three-button control station
- All accessory connections 24 VDC
- Easily adjustable cam-operated limit switches
- Lockable and removable front cover for easy access
- Built-in maximum run timer and auto close timer
- Master/second with simple 3-wire connection
- Quad V-belt
- Heavy-duty right angle gear reducer
- Heavy-duty harmonic link with oil impregnated bronze bushings
- Motor has manually-resettable overload
- Full system capable for access control and reversing devices
- Weather resistant galvanized steel cabinet with powder coat finish
| Model | HP | Voltage & Phase | Arm Size | Application |
| SG-TB-25-211 | 1/2 | 115-1 | 25 ft | Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC accessories |
| SG-TB-25-221 | 1/2 | 230-1 | 25 ft | Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC accessories |
| SG-D-25-211 | 1/2 | DC Battery Backup, 115-1 Supply or DC Solar | 25 ft | Slower operating, counter balanced arm, provision for single-button, detector, radio, 3-button controls, 24VAC accessories |
| SG-MANUAL | - | - | 25 ft | - |
