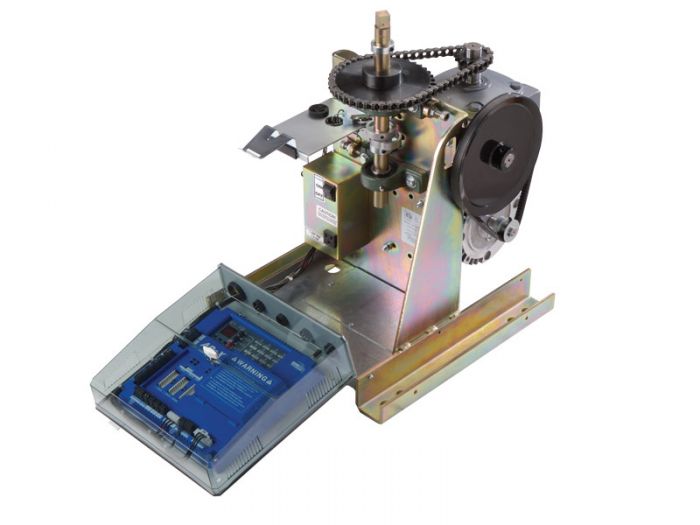

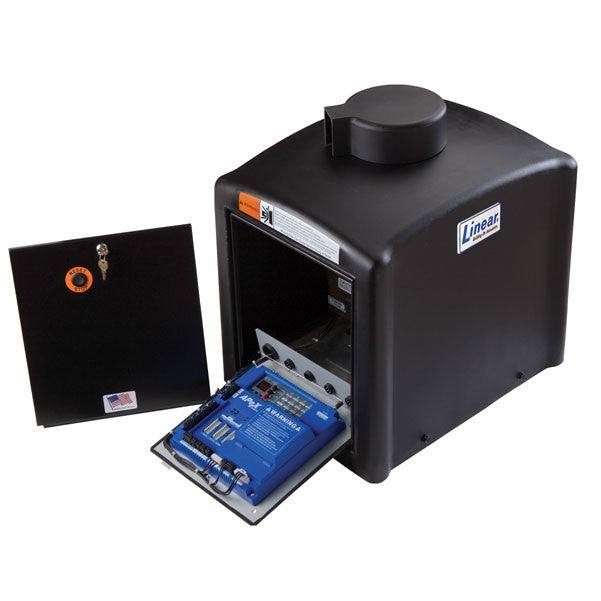

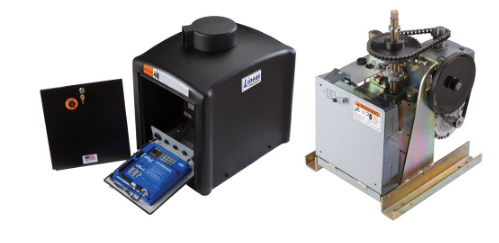

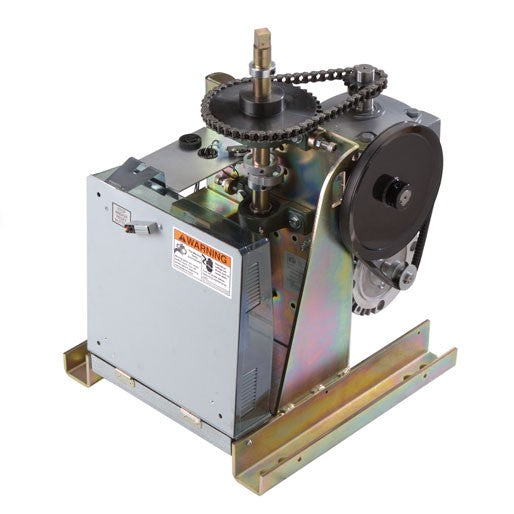

LINEAR OSCO SWC-221 1/2HP SWING GATE OPERATOR
Add to cart to see price
LINEAR OSCO SWC-221 1/2HP SWING GATE OPERATOR
General
- APeX Controller
- Black polyethylene cover
- Built-in MegaCode receiver
- Gear reducer, size 60 (1/2 HP), size 70 (1 HP)
- Quick disconnect crank assembly
- Exterior reset button
- Pad mount standard - optional post mount kit available
- High starting torque - heavy duty PSC motor
- ETL Listed for UL 325 (Class I-IV) for U.S. and Canada
Electrical
- Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
- Continuous-tone entrapment alarm with reset button
- LED diagnostic display for ease of setup and troubleshooting
- Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
- Regulated 24 Volt DC power available for access control accessories
- Integrated maximum run and auto close timer (0-9 minutes)
- Built-in networked dual gate capability using 3-wire shielded cable
Mechanical
- Heavy-duty, zinc-plated, steel chassis
- Lockable steel access door
- Universal pad mount standard; optional post mount kit
Model | HP | Voltage & Phase | Max Gate Length | Max Gate Weight |
SWC-221 | 1/2 | 230V 1P | 17 ft | 600 lbs |
