LINEAR OSCO SWG-421 3/4HP SWING GATE OPERATOR

LINEAR OSCO SWG-421 3/4HP SWING GATE OPERATOR

  • Manufacturer: Linear - OSCO
  • Item Number:

  Add to cart to see price



LINEAR OSCO SWG-421 3/4HP SWING GATE OPERATOR

General

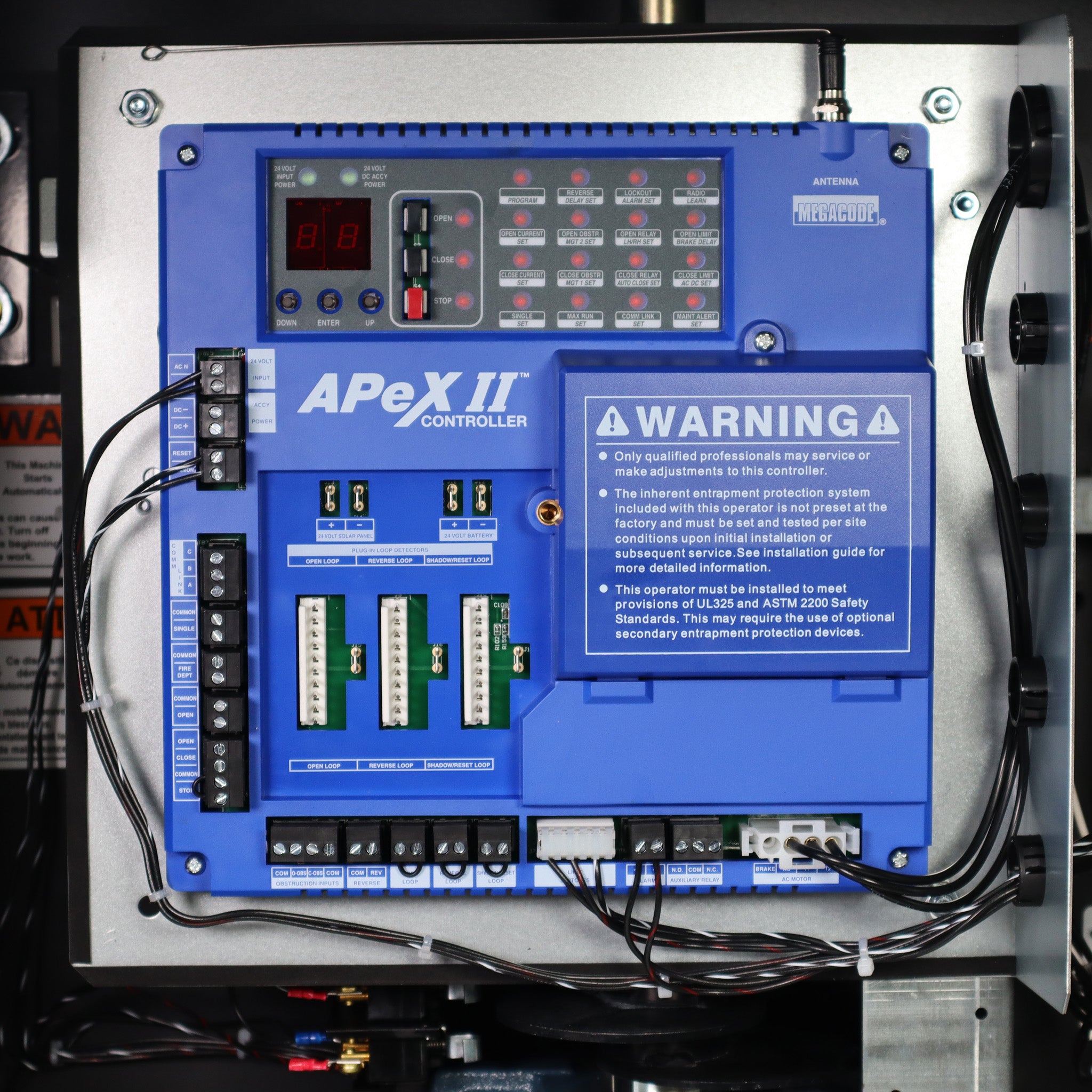

  • Integral APeX Controller
  • All voltages, single or three-phase
  • Emergency disconnect
  • Electrical power disconnect
  • Emergency stop/reset button on front cover
  • On-board APeX Controller three-button control station
  • Master/second built in
  • Durable powder coat finish
  • Right hand - left hand convertible
  • Timer to close
  • Post mount standard; pad mount optional
  • Powder coat finish
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

  • Duplex receptacle on 115 VAC units
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches

Mechanical

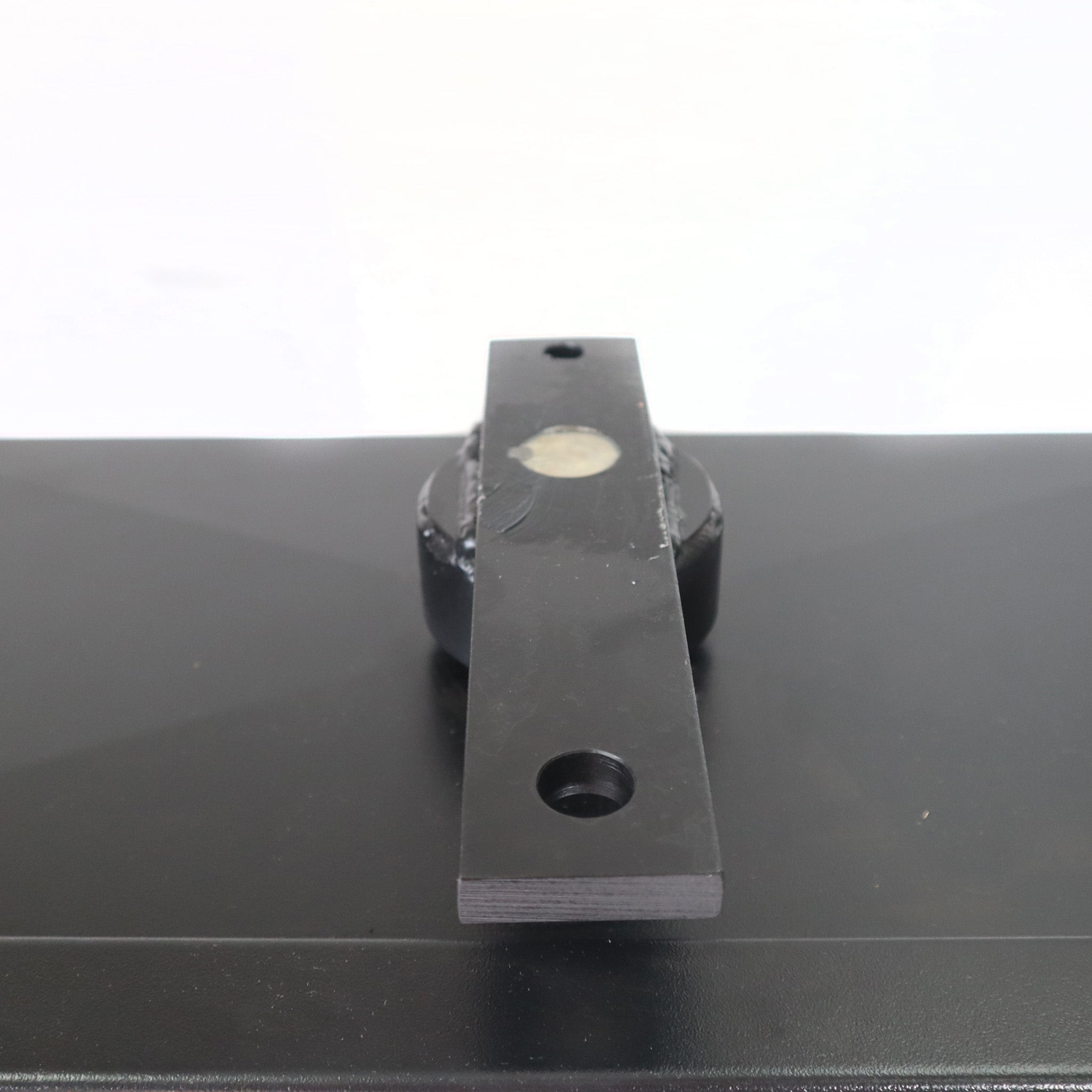

  • Heavy-duty gate arm assembly with harmonic design for smoother starts and stops
  • Over-center gate arm "locking" angle

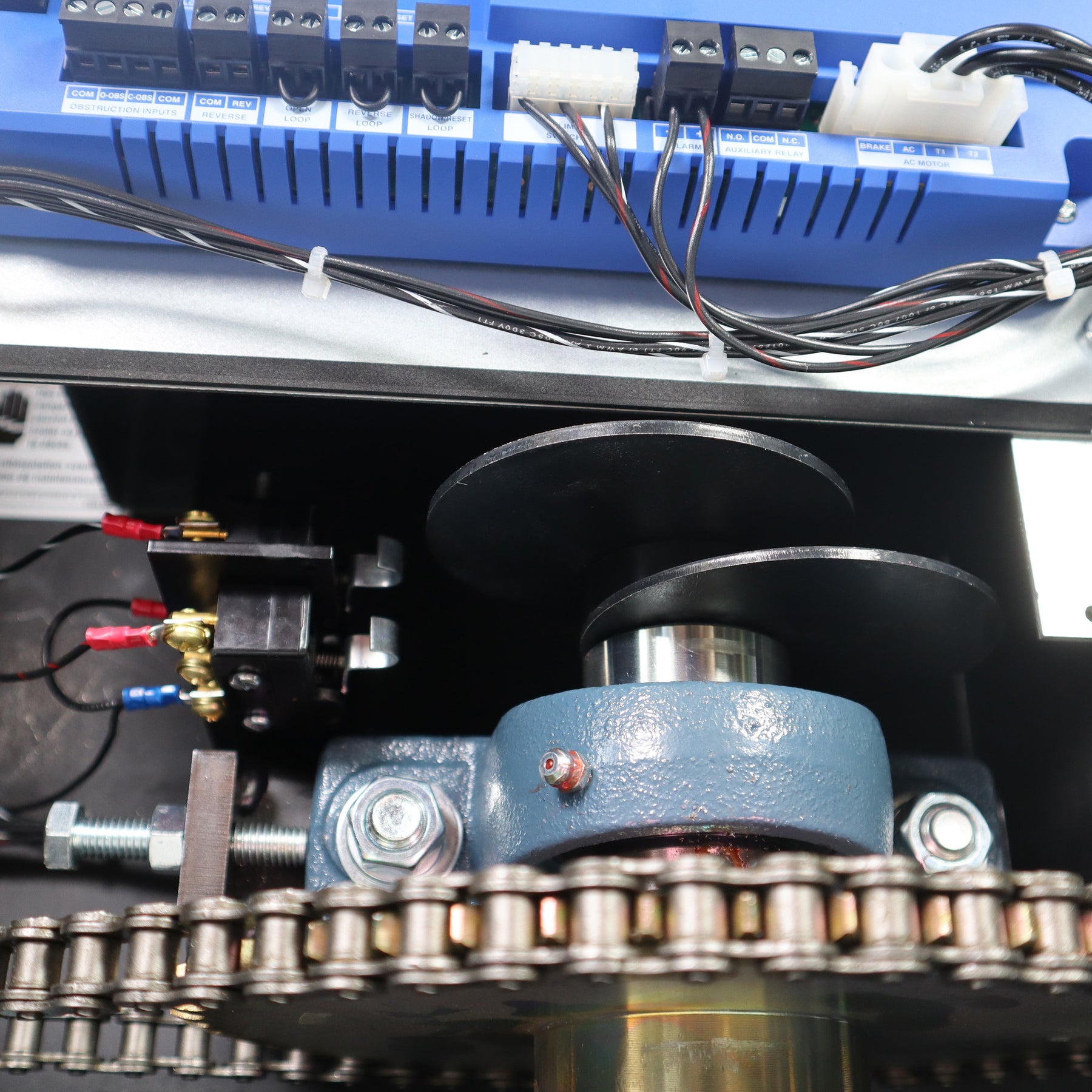

  • Heavy-duty 60:1 right-angle C-face gear reducer
  • #40 roller chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings
Model HP Voltage & Phase Max Gate Length Max Gate Weight
SWG-421 3/4 230V 1P 18 ft 700 lbs
