LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR

Linear ITEM: SWG-423
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR
LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR

LINEAR OSCO SWG-423 3/4HP SWING GATE OPERATOR

Linear ITEM: SWG-423
Regular price $3,210.00
/
  • Free shipping on most items over $200
  • We have 15+ years of industry experience
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

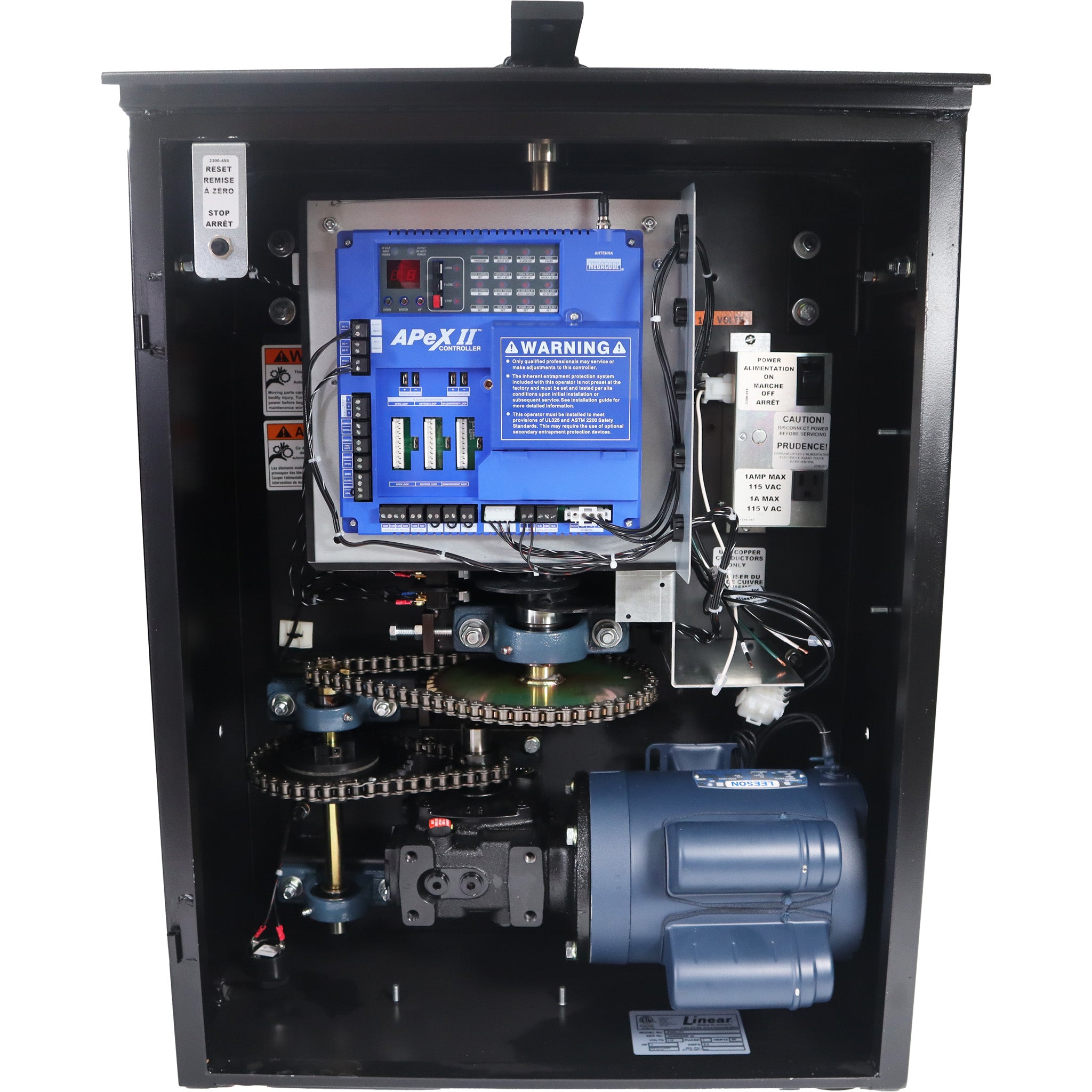

Linear Osco SWG-423 3/4HP, 208/230V, 3Phase Commercial/Industrial Swing Gate Operator rated for continuous duty with gates up to 22' and 900lbs and an opening speed of 15 seconds.

Post Mount or option pad mount pedestal available, part #2110-183-BT.

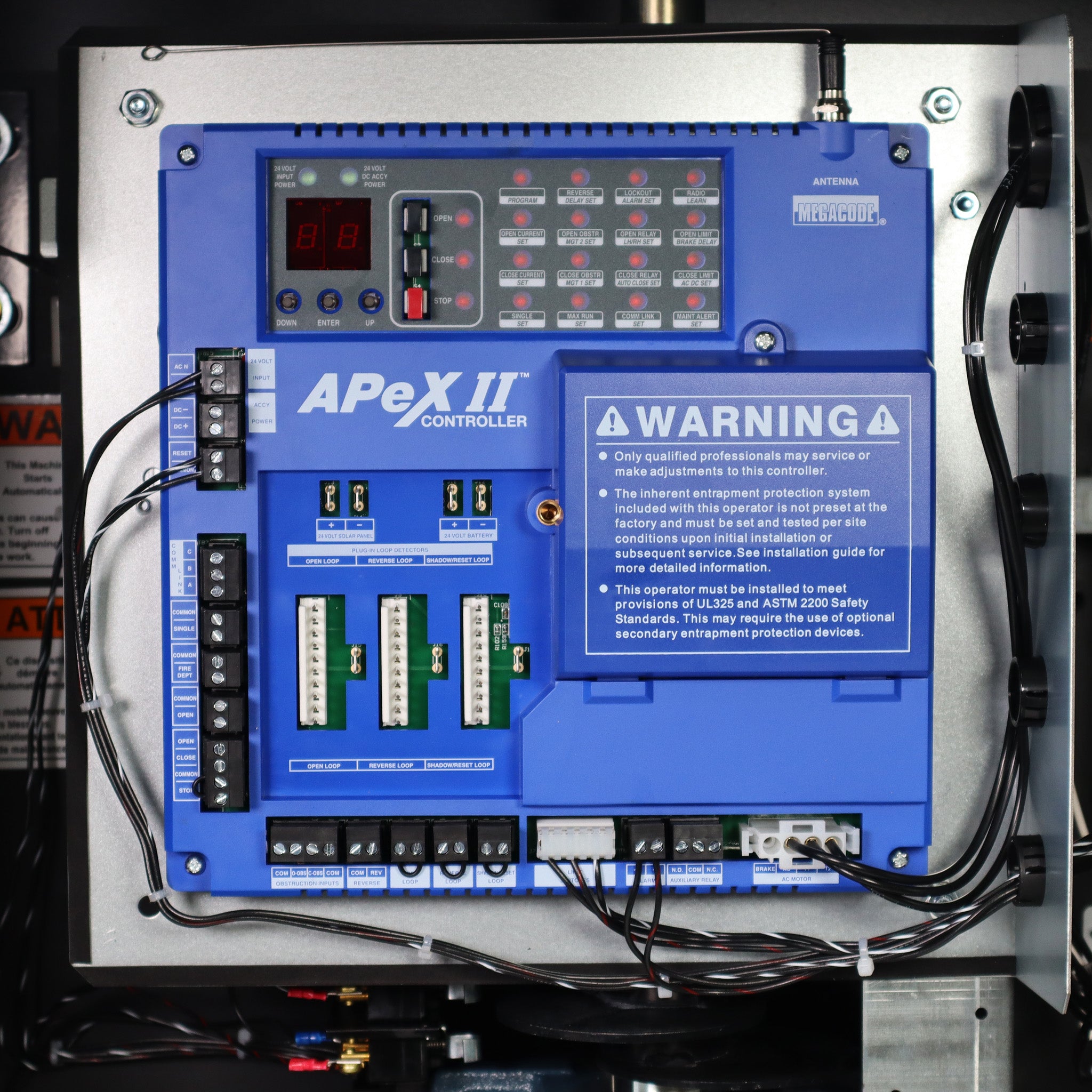

  • Integral APeX Controller
  • All voltages, single or three-phase
  • Emergency disconnect
  • Electrical power disconnect
  • Emergency stop/reset button on front cover
  • On-board APeX Controller three-button control station
  • Master/second built in
  • Durable powder coat finish
  • Right hand - left hand convertible
  • Timer to close
  • Post mount standard; pad mount optional
  • Powder coat finish
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

  • Duplex receptacle on 115 VAC units
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches

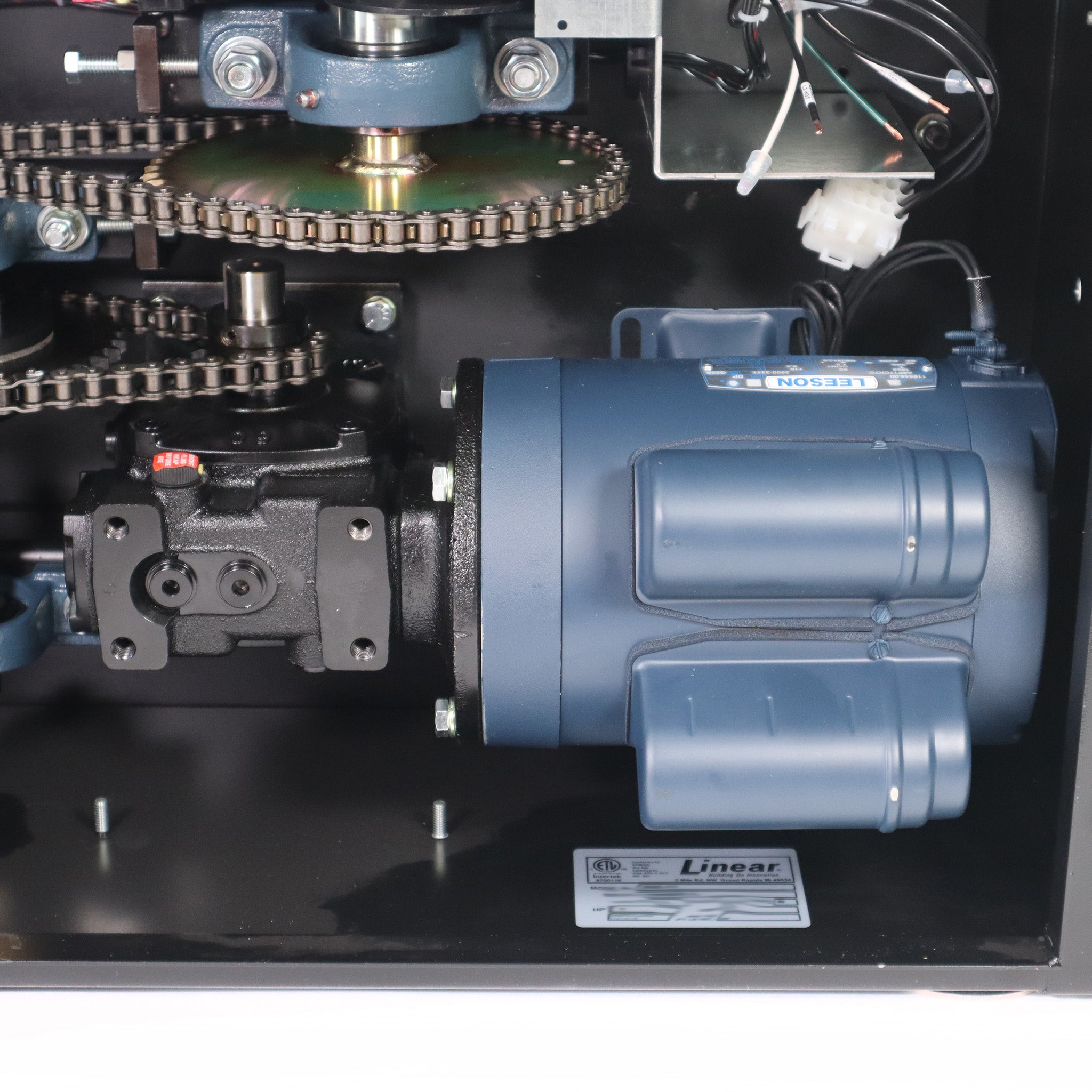

Mechanical

  • Heavy-duty gate arm assembly with harmonic design for smoother starts and stops
  • Over-center gate arm "locking" angle

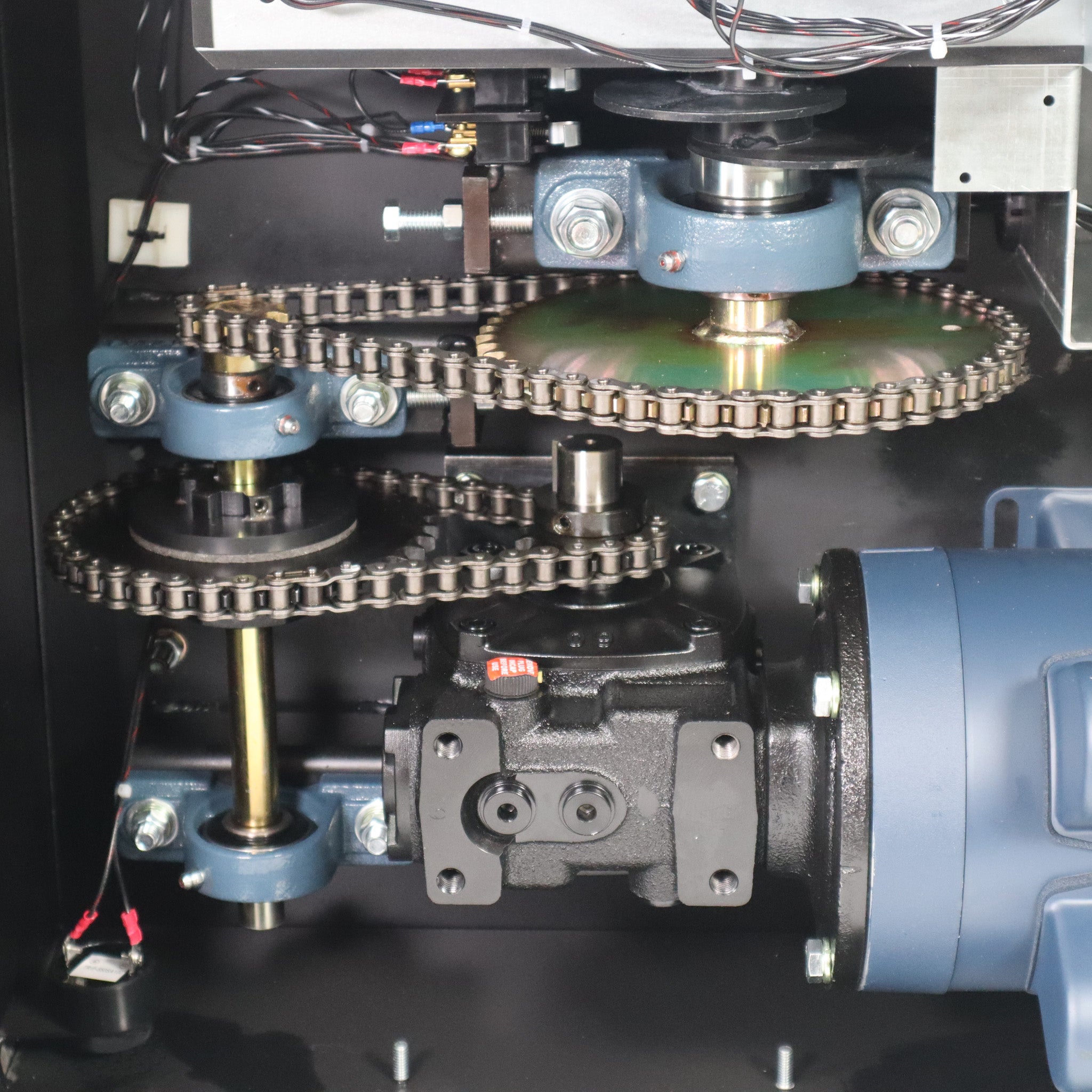

  • Heavy-duty 60:1 right-angle C-face gear reducer
  • #40 roller chain and sprockets
  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings
