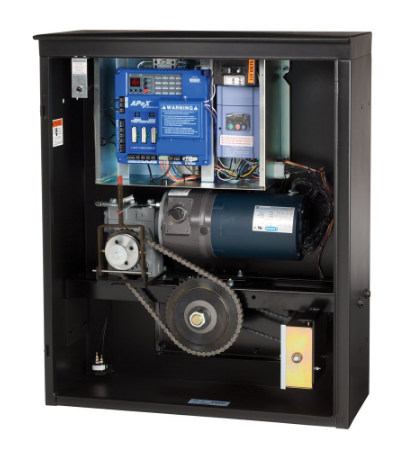

Linear OSCO VS-GSLG-121 1 HP Variable Speed Slide Gate Operator

• Integral APeX Controller
• Up to 24"/sec. gate speed
• Soft start/soft stop
• Programmable speed control
• Direct C-face drive with brake
• #50 roller drive chain

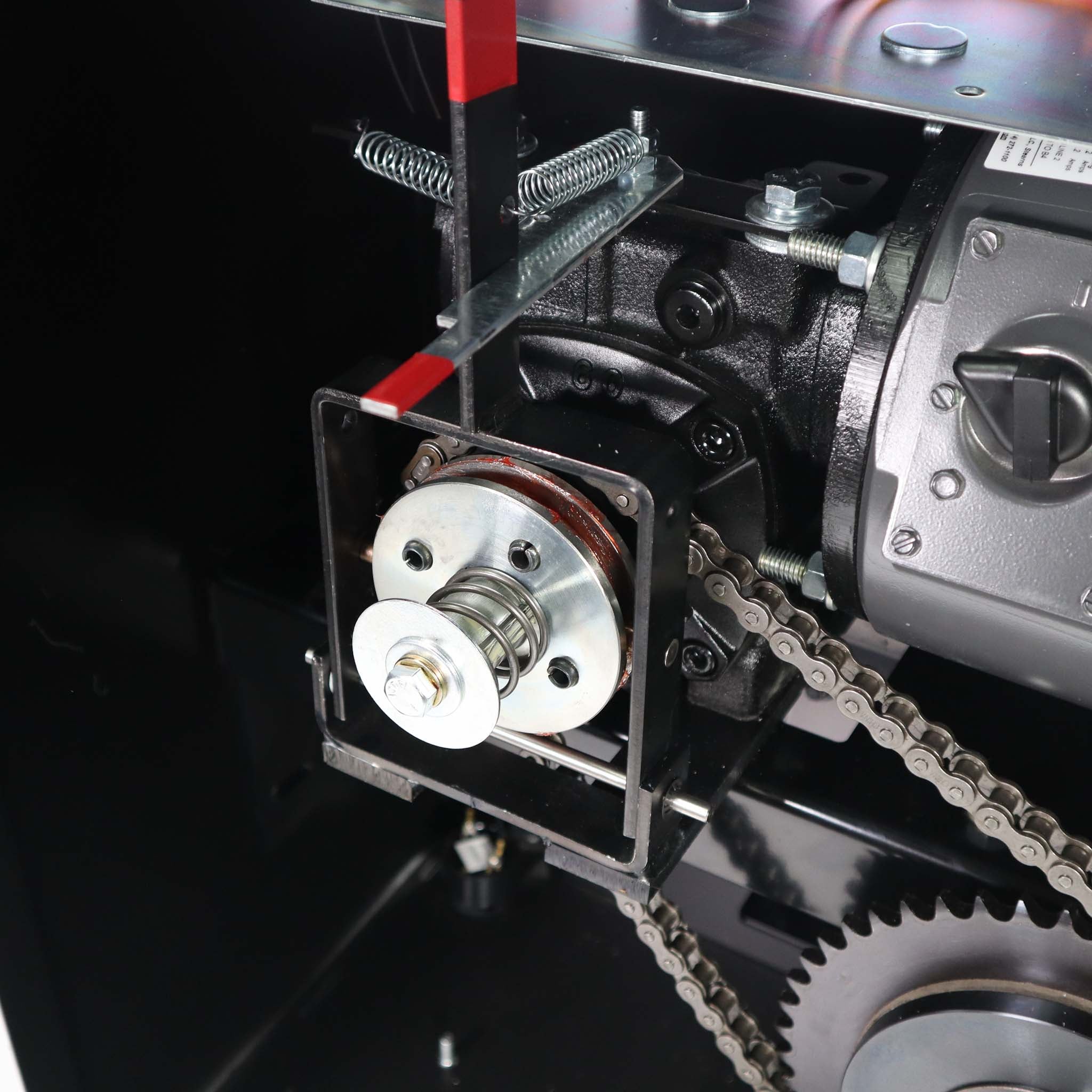

• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional

Electrical

• Variable speed - soft start/ stop programmable through variable frequency drive
• 1/2 to 2 HP industrial, continuous-duty, three-phase, 56-frame motors
• Double C-face brake
• Power on/off switch
• Duplex receptacle on 115 VAC units

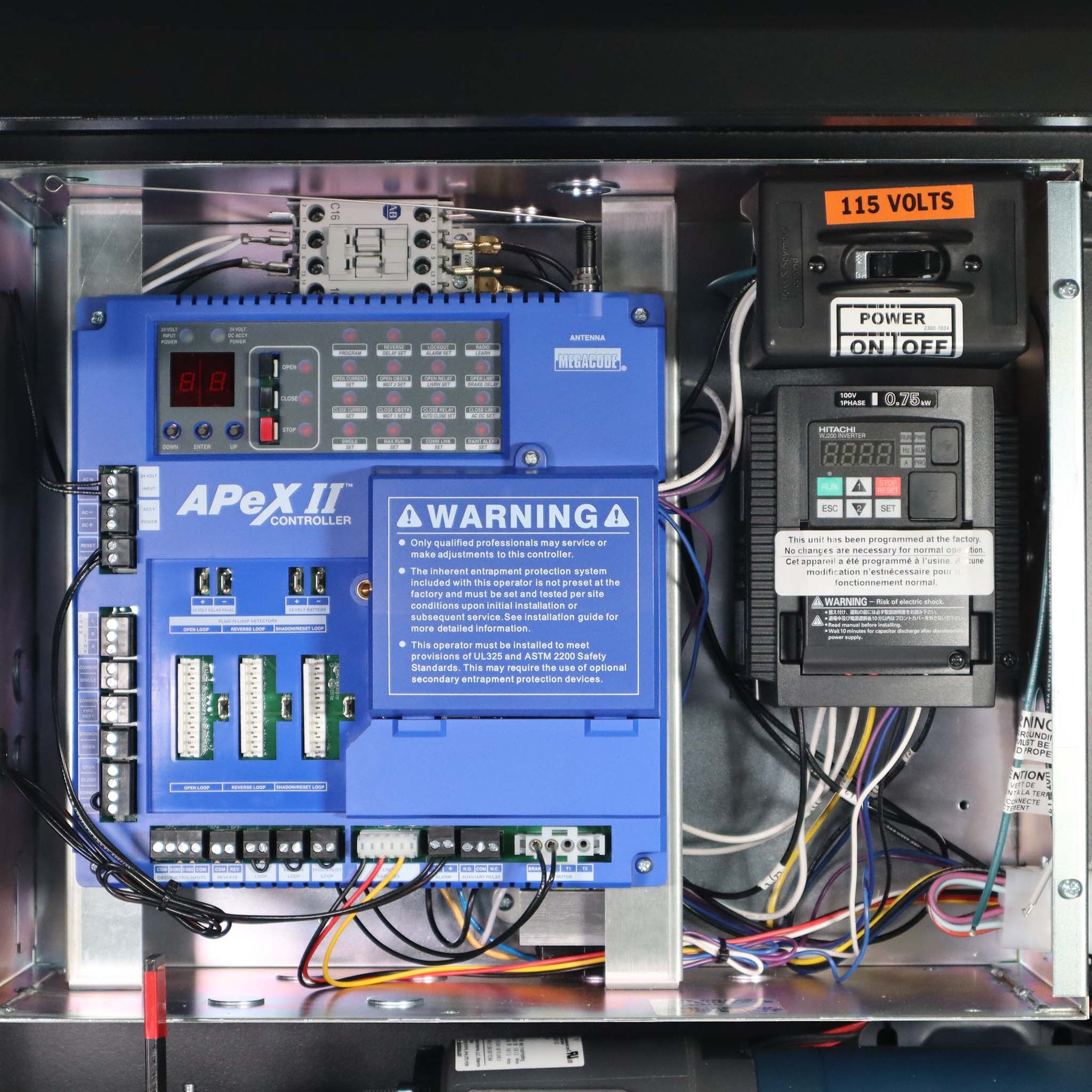

• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories and reversing devices
• All accessory connections 24 VDC

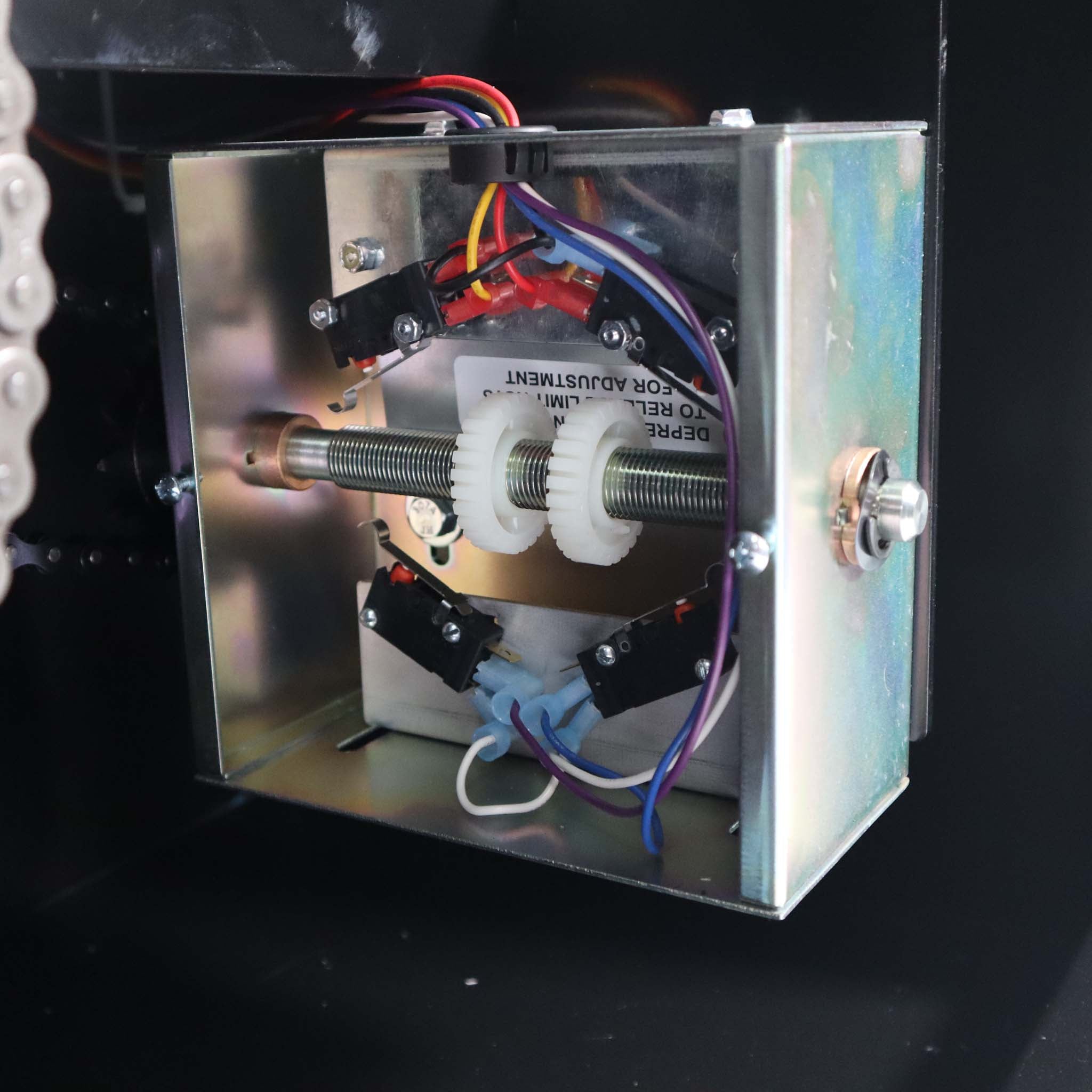

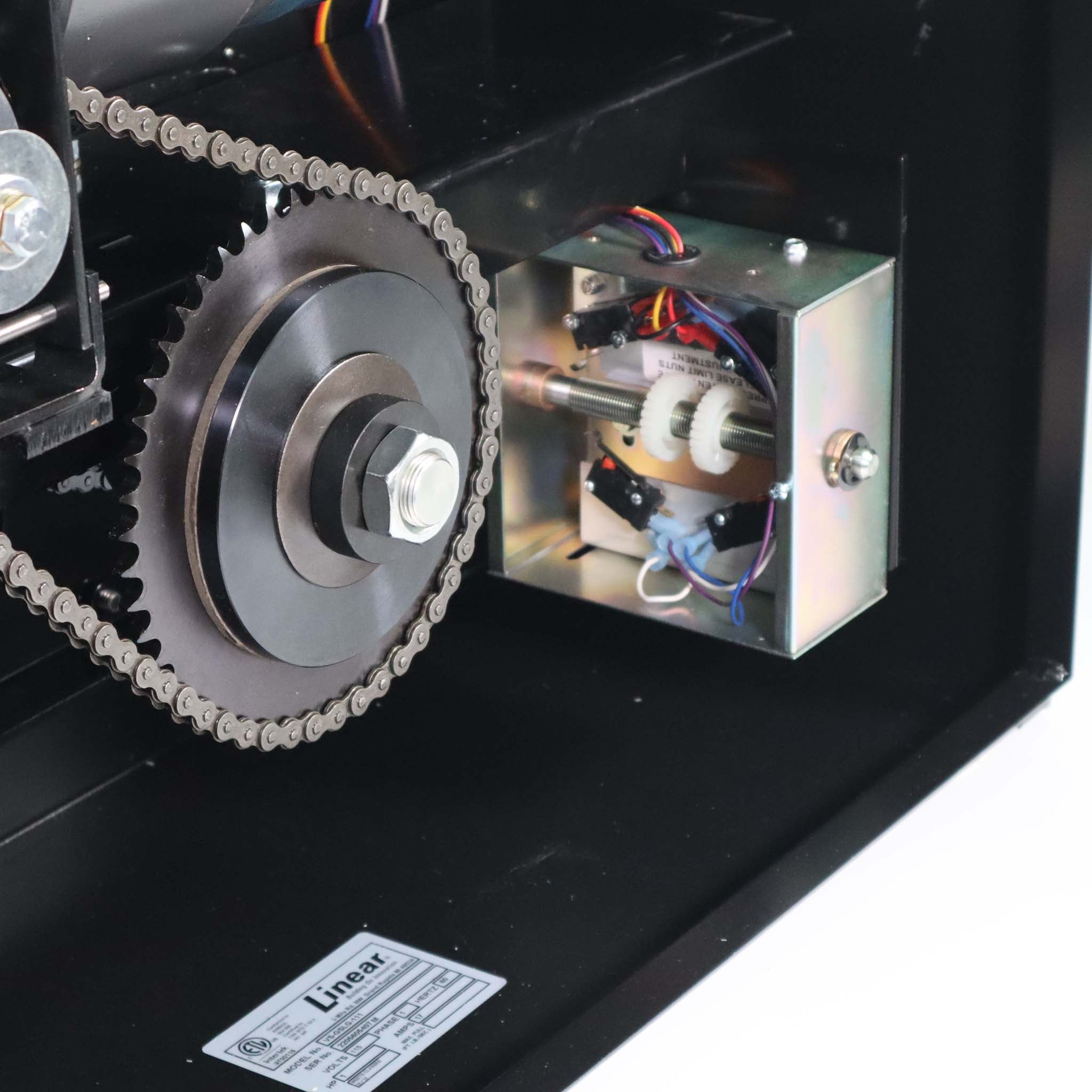

• Easily adjustable rotary limit switches

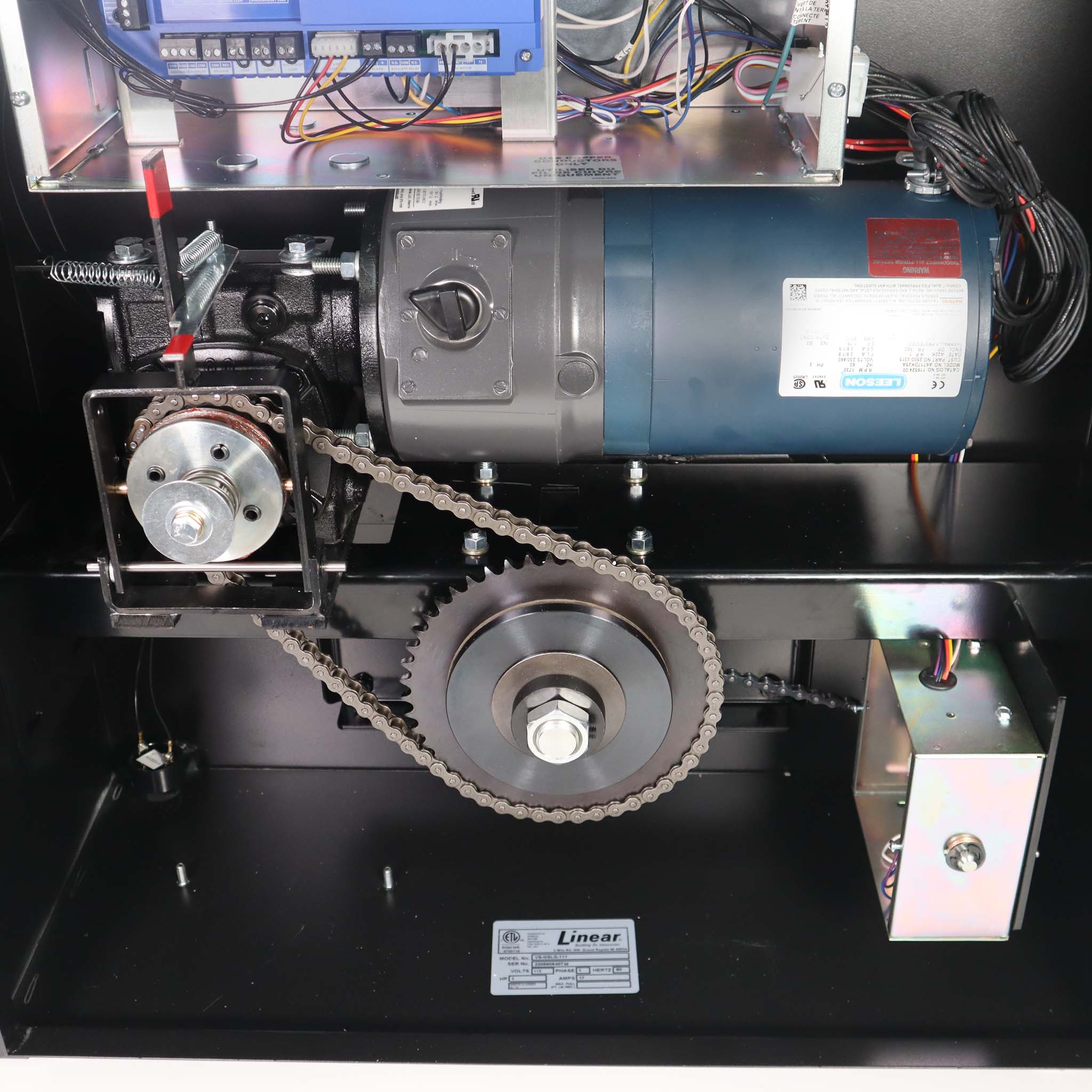

Mechanical

• Heavy-duty 10:1 right-angle C-face gear reducer

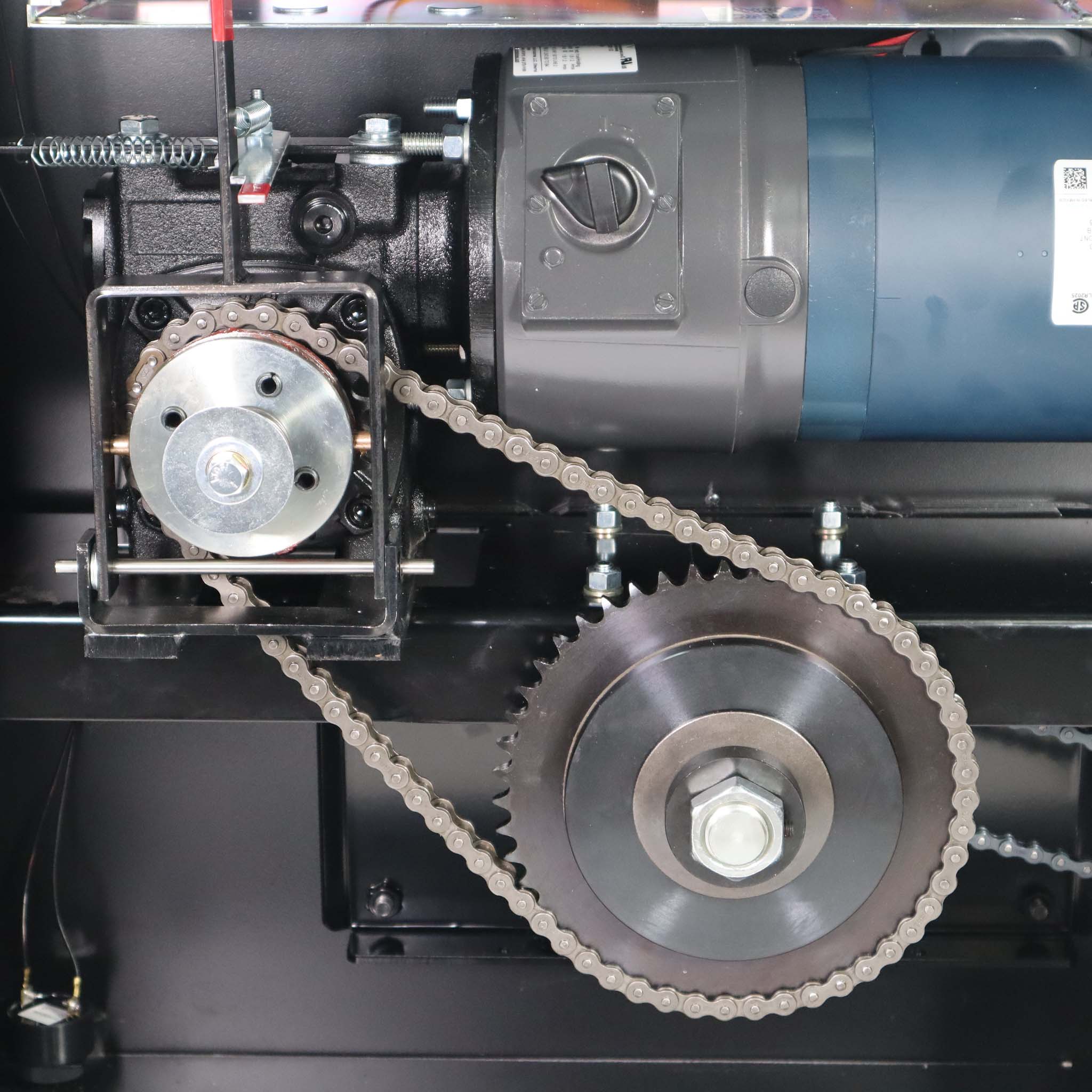

• #50 roller chain and sprockets

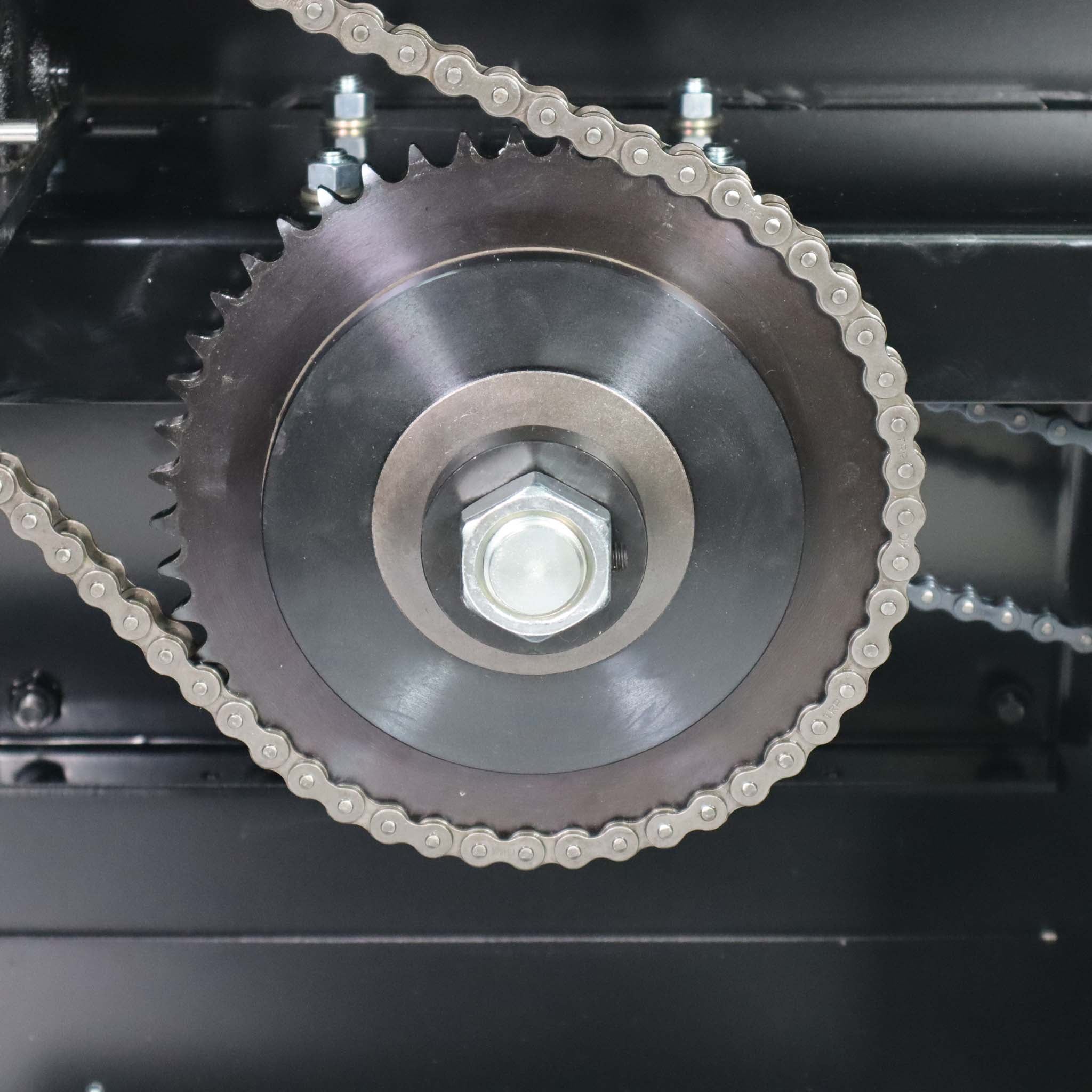

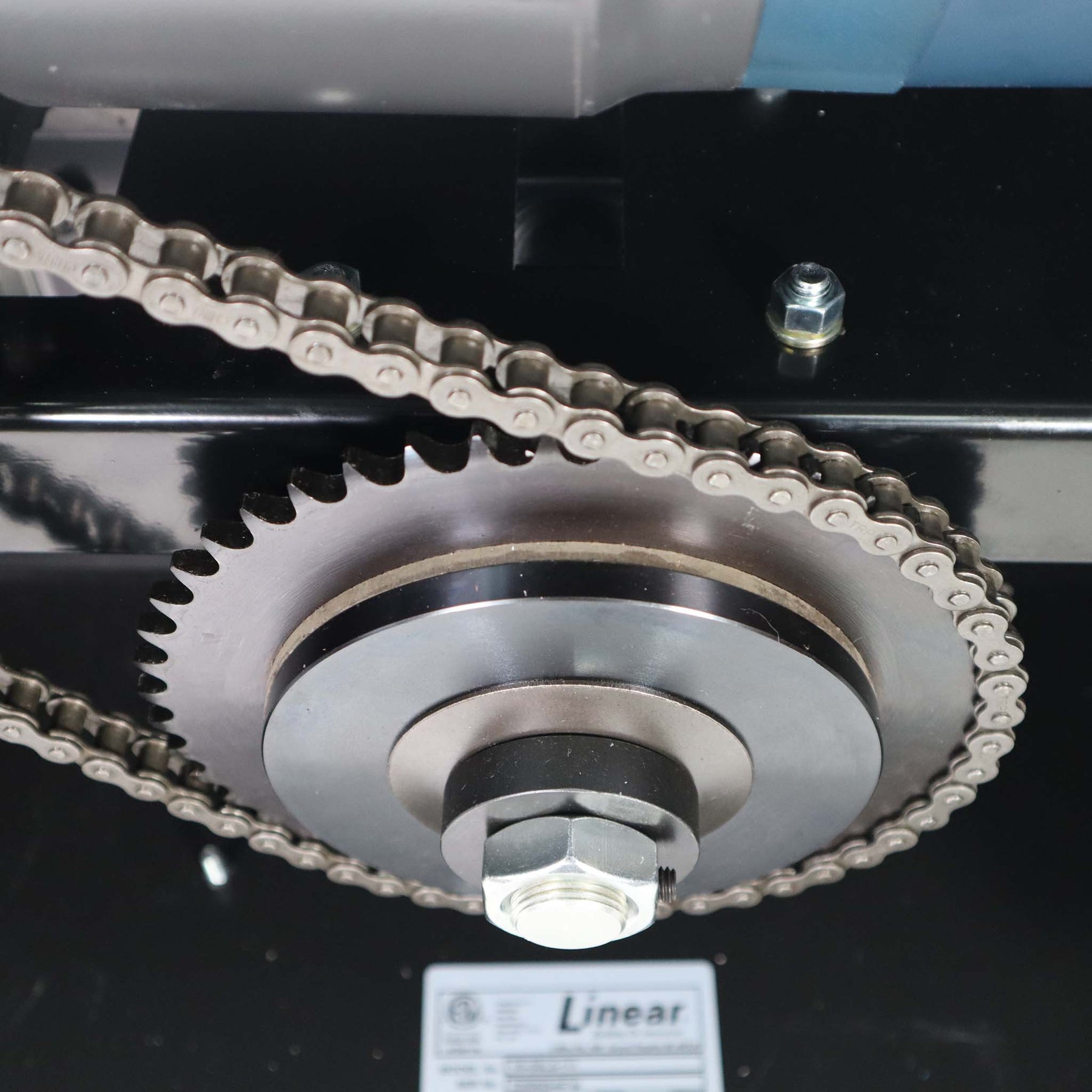

• Adjustable torque limiter
• Heavy-duty pillow-block bearings

• Max Gate Length: 78 ft
• Max Gate Weight: 2,500 lb
• Motor: 1 HP, three-phase 56-frame, variable frequency drive
• Input Power: 208/230 VAC single-phase
• Operating Voltage/Accessory Power: 24 VDC accessory power
• Duty Cycle: Continuous
• UL 325 Class: ETL listed, UL 325 compliant (class not stated)
• Battery Backup: Not available
• Solar Capable: No
• Drive: Direct C-face drive, 10:1 gear reducer, #50 roller chain, double C-face brake
• Gate Speed / Open Time: Up to 24 in per second, programmable
• Mounting: Post mount standard; pad mount optional
• Warranty: 5 years

Power Wiring

• Electrical Connections: All AC electrical connections to the power source and the operator must be made by a licensed electrician and observe all national and local electrical codes; use copper wire only
• Wire Run: Distance is measured in ft from the operator to the power source; do not exceed the maximum distance for the model, voltage, horsepower and wire gauge
• Basis: Based on standard 115 V and 230 V supplies with a 10% drop allowable, per National Electrical Code Article 430 (motor inrush, brake solenoids and operator requirements)
• Junction Box: A separate junction box (not supplied) may be needed when large-gauge wire is used
• Ground: The green ground wire must be properly connected

Mounting Pad Installation

• Mounting: Bolted to two 3 - 3-1/2 in OD galvanized posts secured in concrete footings (length per local codes, frost line depth and soil conditions); optional pad mounting per Linear drawing #2700-360
• Side Plates: Four 3/16 in side plates on the outside top and bottom, two 1/2 in side plates on the inside top, two 3/16 in side plates on the inside bottom; attached with the U-bolts and hardware provided
• Gate Preparation: Gate must roll or slide freely with exposed rollers covered; gate covered with fabric with openings no larger than 2-1/4 in to a minimum height of 72 in above ground (mesh optional on picket gates with pickets less than 2-1/4 in apart)
• Pedestrians: Operator is for vehicular gates only; a separate pedestrian access opening must be supplied
