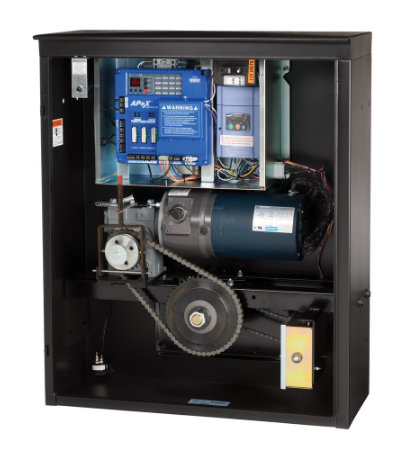

Linear OSCO VS-GSLG-721 2 HP Variable Speed Slide Gate Operator

Linear OSCO VS-GSLG-721 2 HP Variable Speed Slide Gate Operator

  • Manufacturer: Linear - OSCO
  • Item Number:

  Add to cart to see price



Linear OSCO VS-GSLG-721 2 HP Variable Speed Slide Gate Operator

VS-GSLG SERIES - Industrial variable speed slide gate operator series, available in 1/2, 1, and 2 horsepower, various supply voltages and phases, 24" per second speed.

General

  • Integral APeX Controller
  • Up to 24"/sec. gate speed
  • Soft start/soft stop
  • Programmable speed control
  • Direct C-face drive with brake
  • #50 roller drive chain
  • 1/2, 1, or 2 HP motor
  • All voltages, single or three-phase

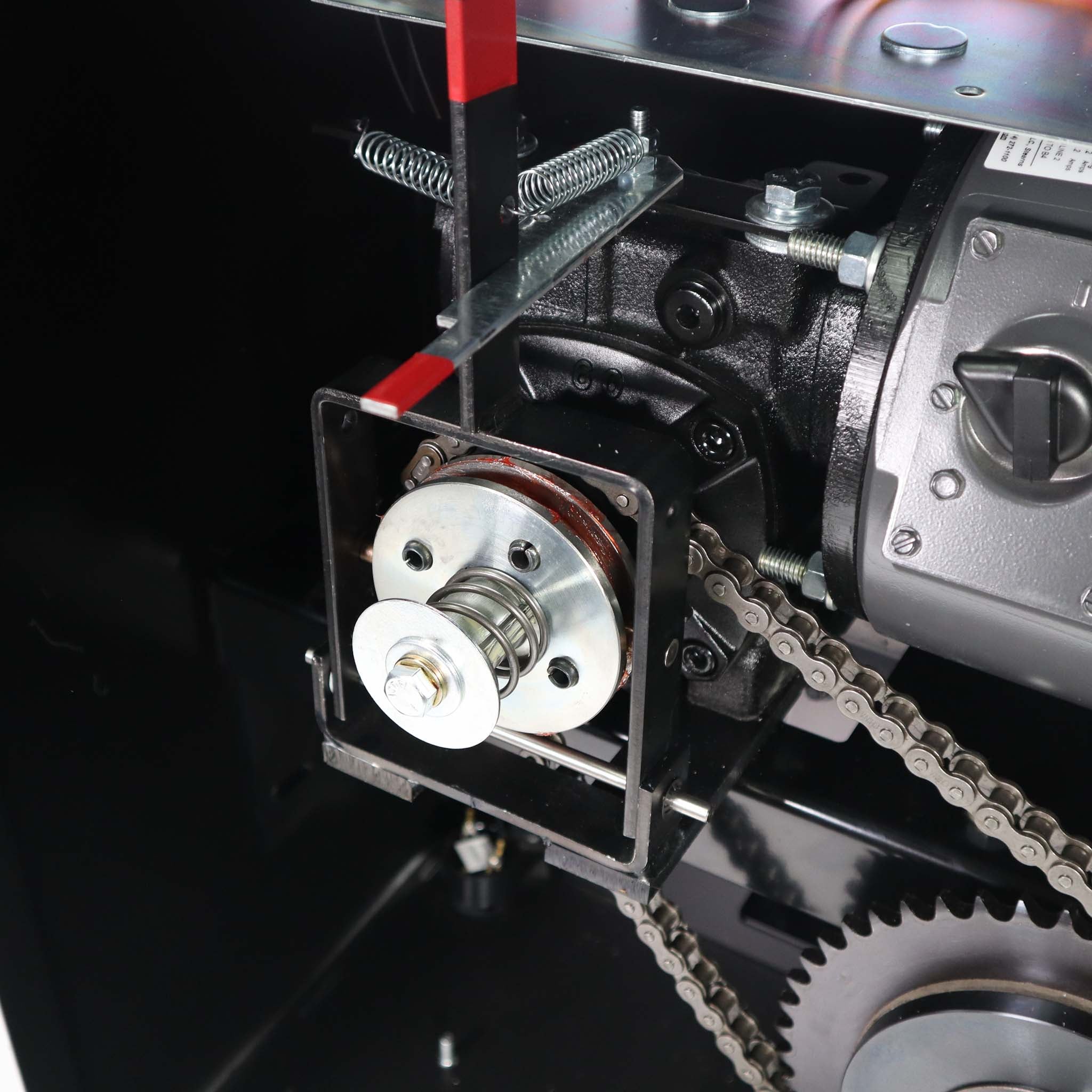

  • Emergency manual disconnect handle
  • Powder coat finish
  • Post mount standard; pad mount optional

Electrical

  • Variable speed - soft start/ stop programmable through variable frequency drive
  • 1/2 to 2 HP industrial, continuous-duty, three-phase, 56-frame motors
  • Double C-face brake
  • Power on/off switch
  • Duplex receptacle on 115 VAC units

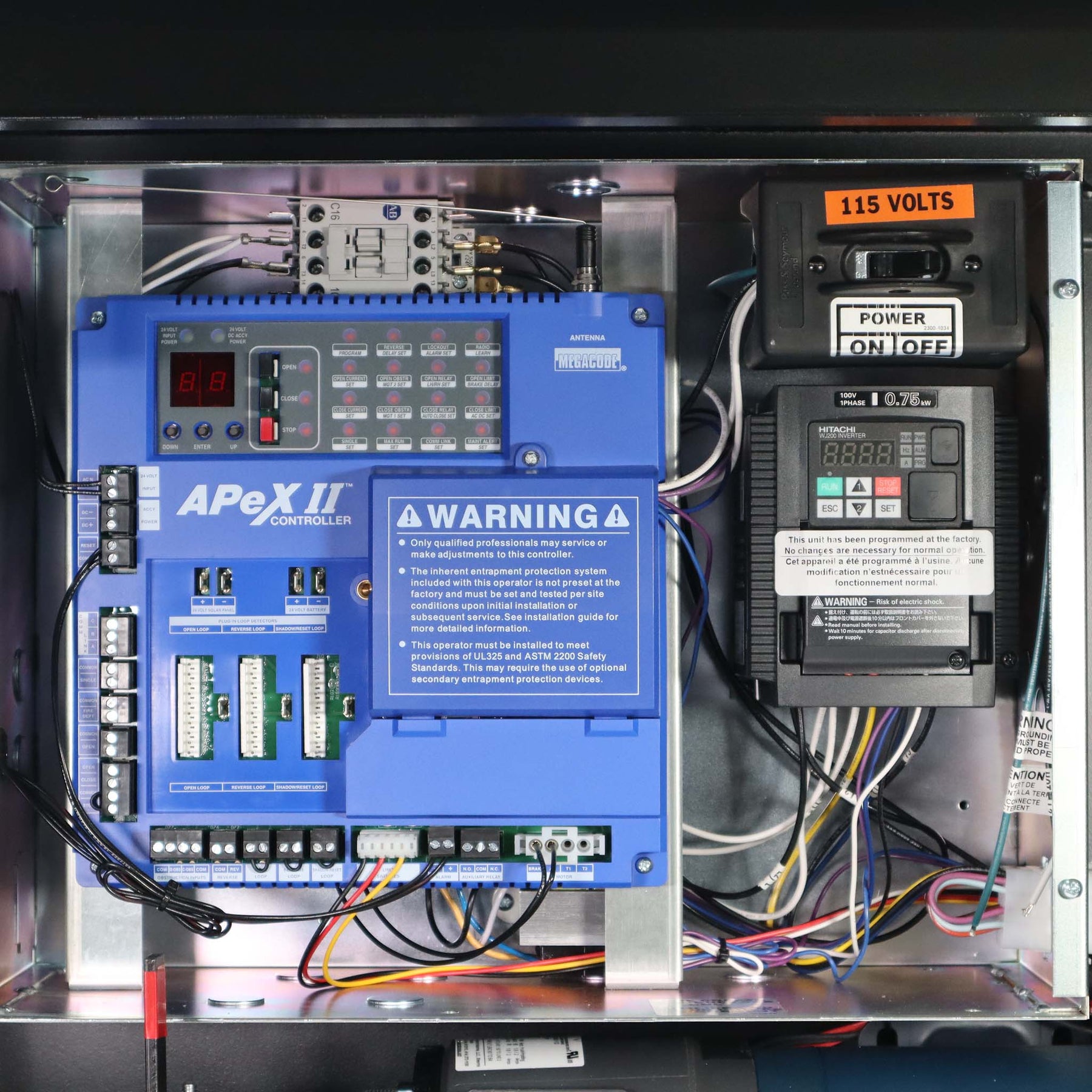

  • On-board APeX Controller three-button control station
  • AC and DC power available for access control accessories and reversing devices
  • All accessory connections 24 VDC

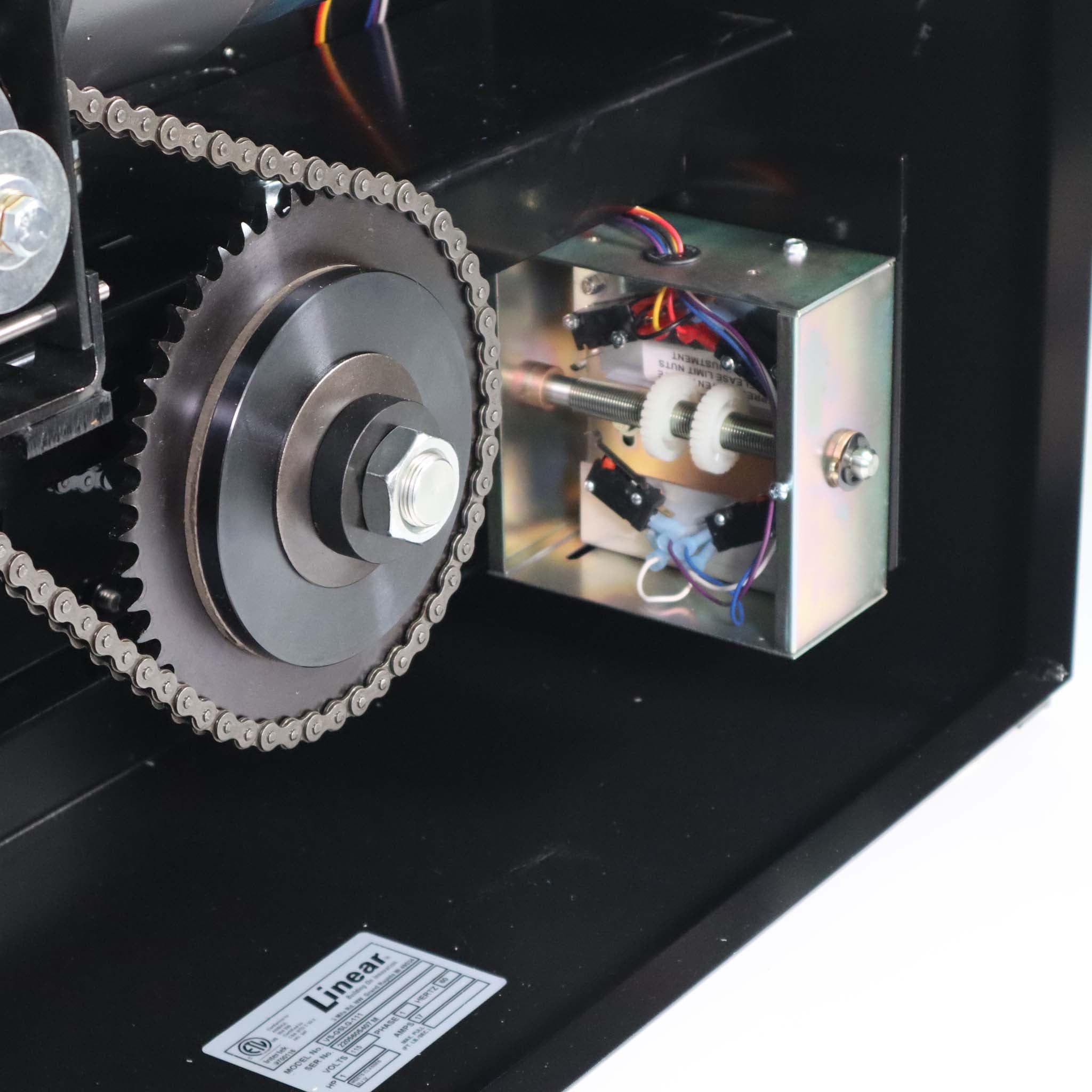

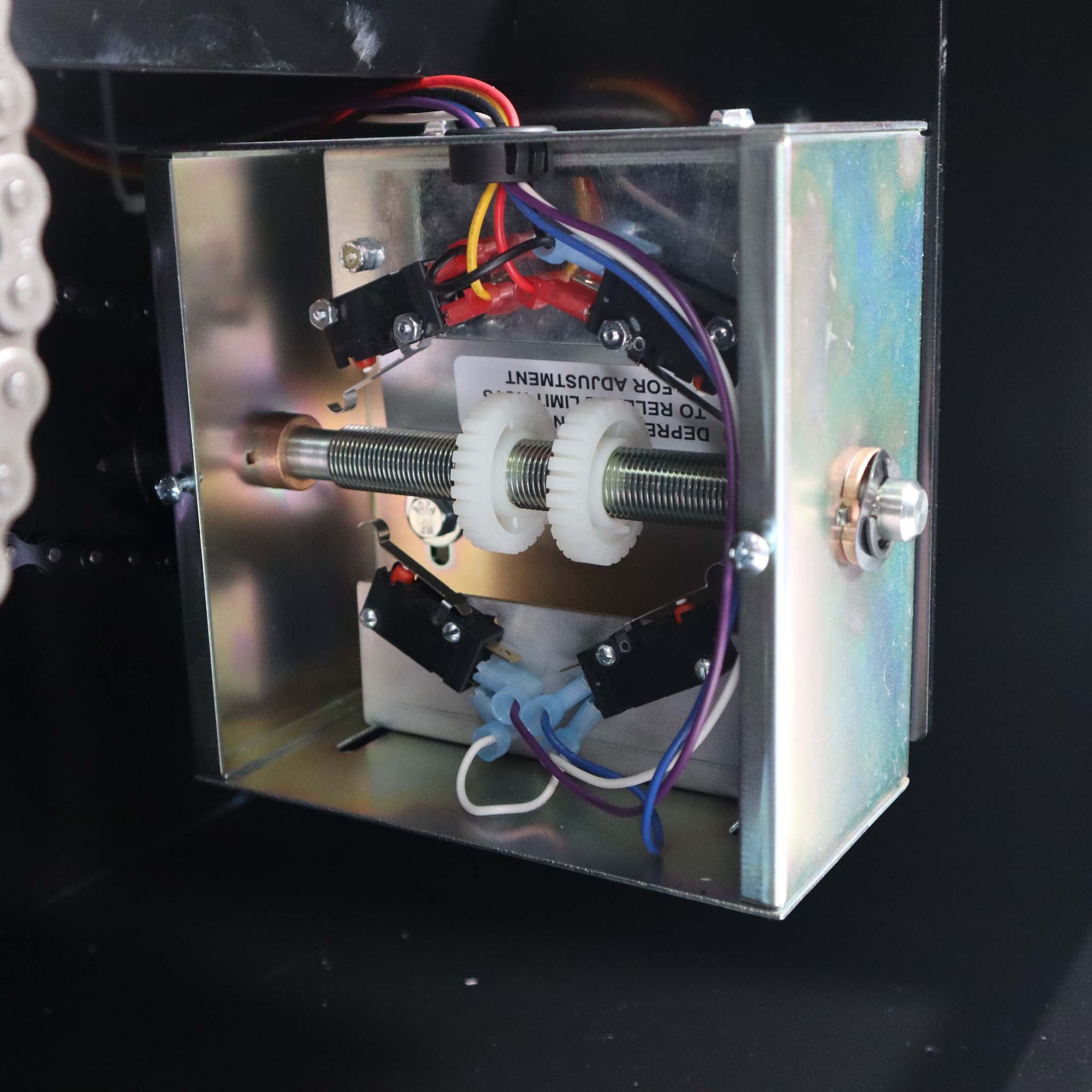

  • Easily adjustable rotary limit switches

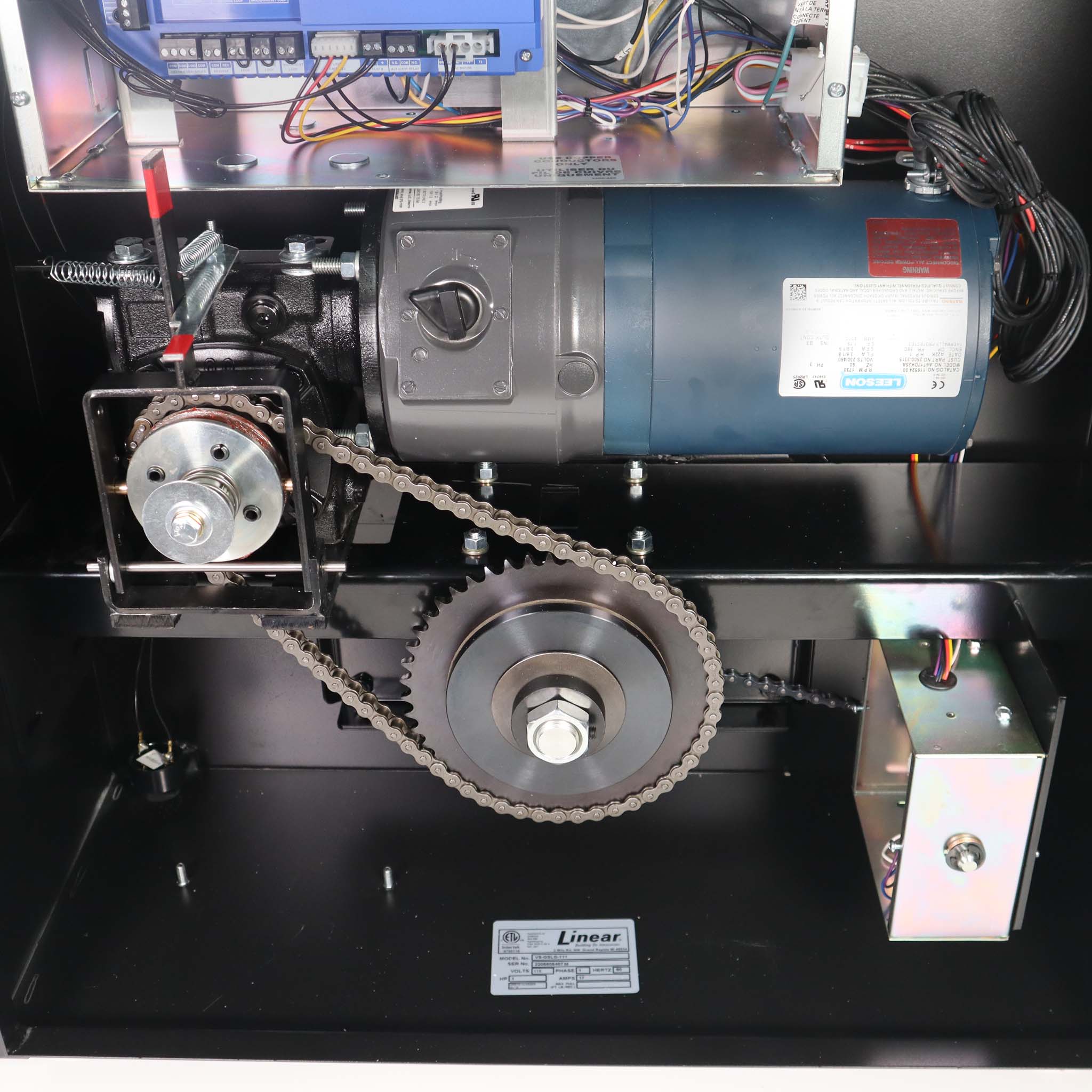

Mechanical

  • Heavy-duty 10:1 right-angle C-face gear reducer

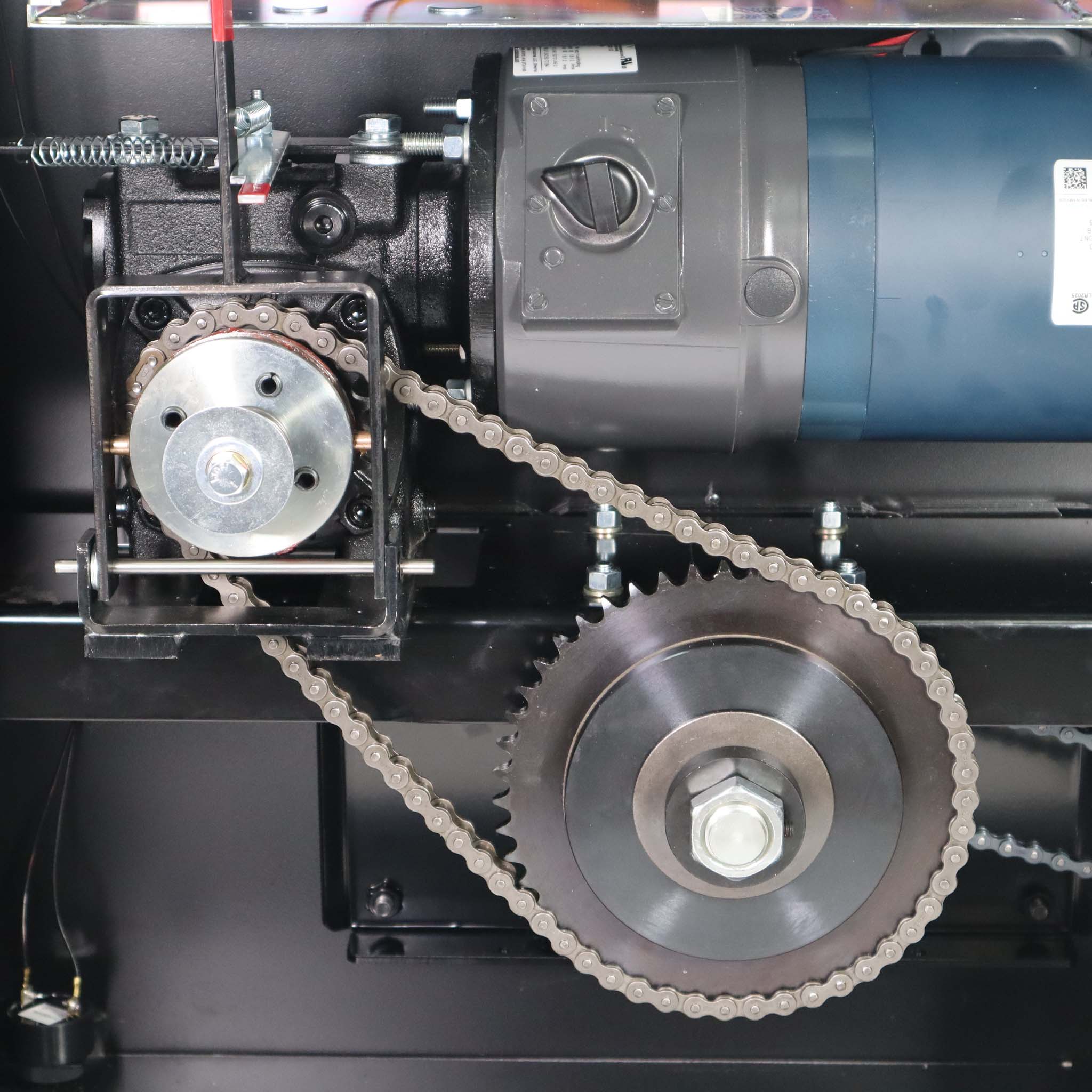

  • #50 roller chain and sprockets

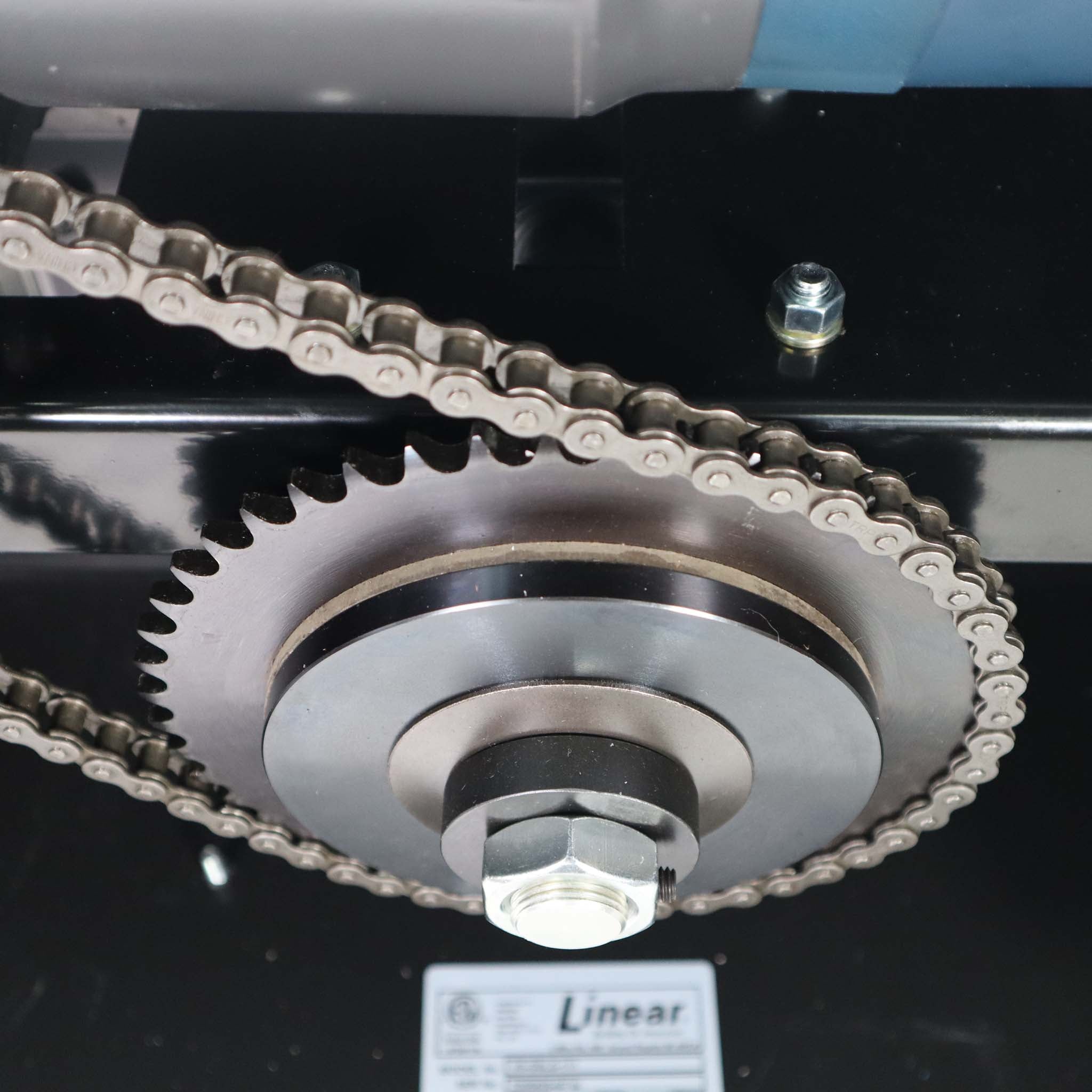

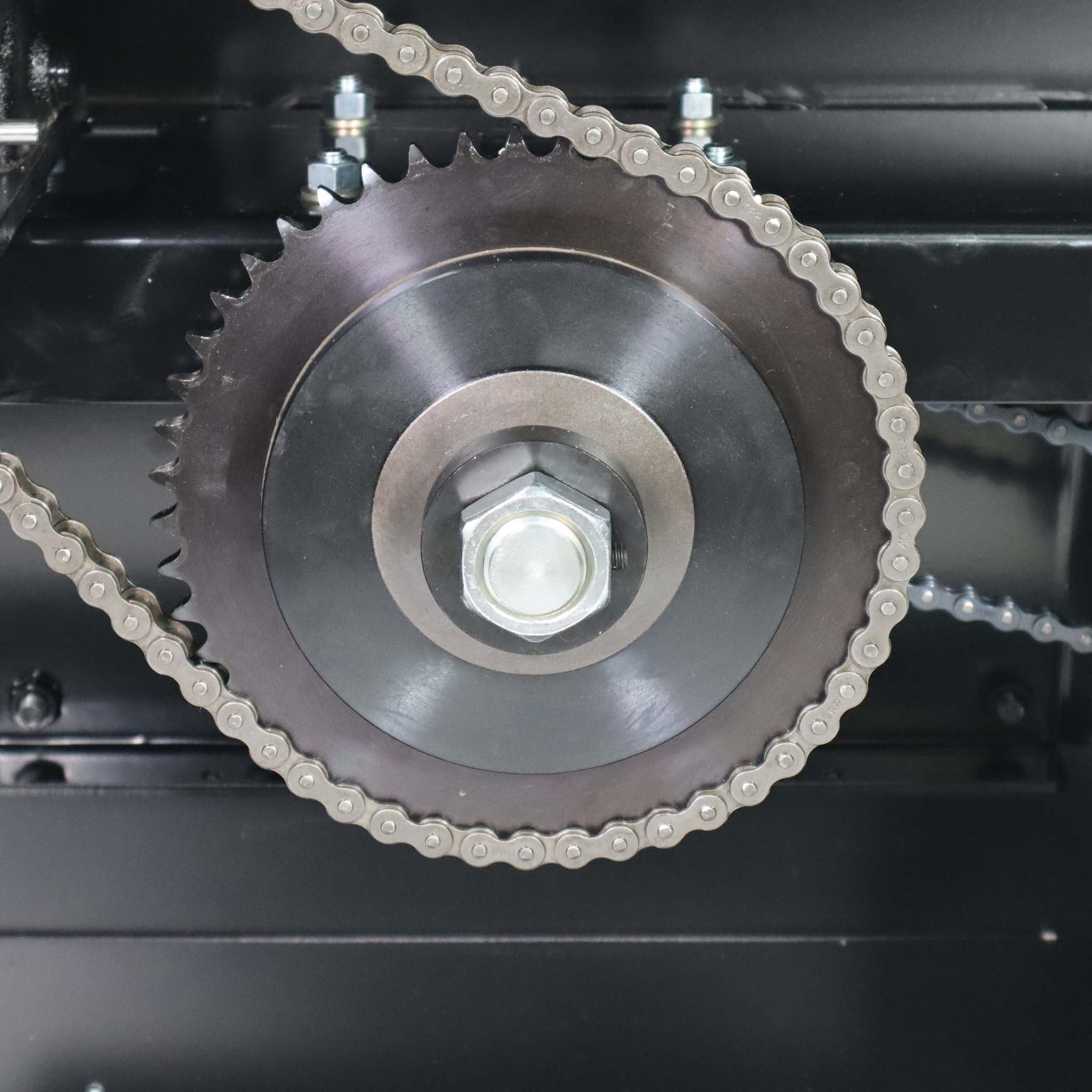

  • Adjustable torque limiter
  • Heavy-duty pillow-block bearings
Model HP Voltage & Phase Max Gate Length Max Gate Weight
VS-GSLG-721 2 230 Single-Phase 45 ft

1100 lbs
