MX002599 XtremeDrive Rack Kit, 25 inch

HySecurity ITEM: MX002599
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

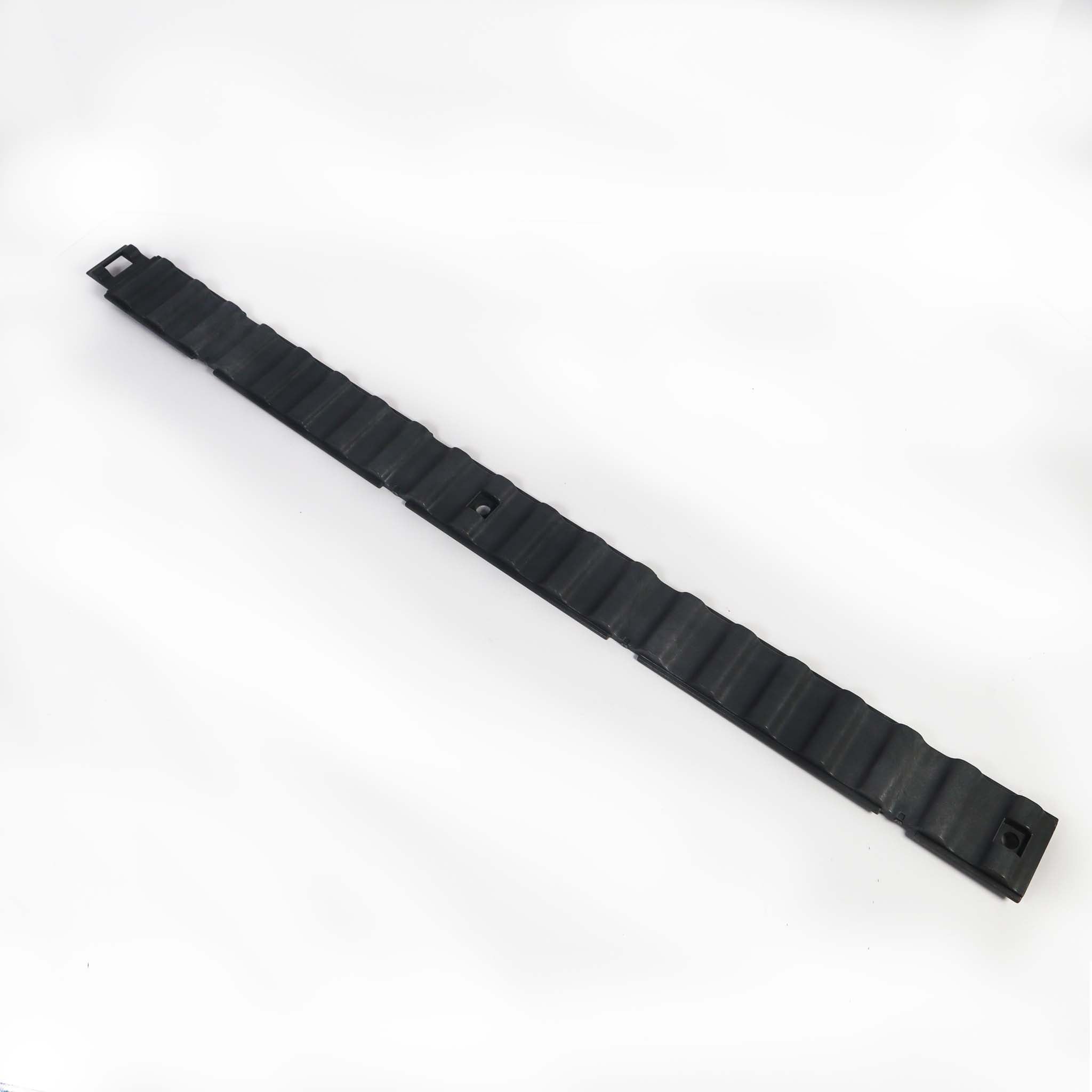

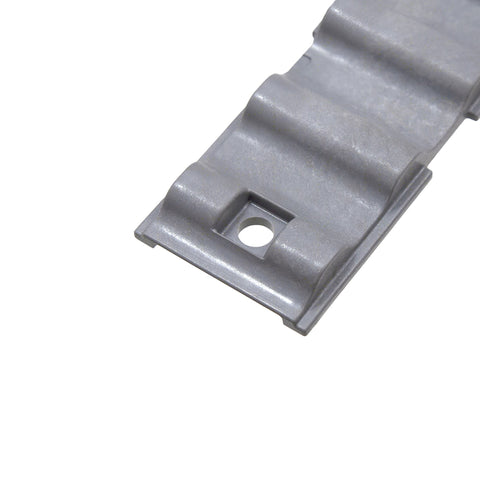

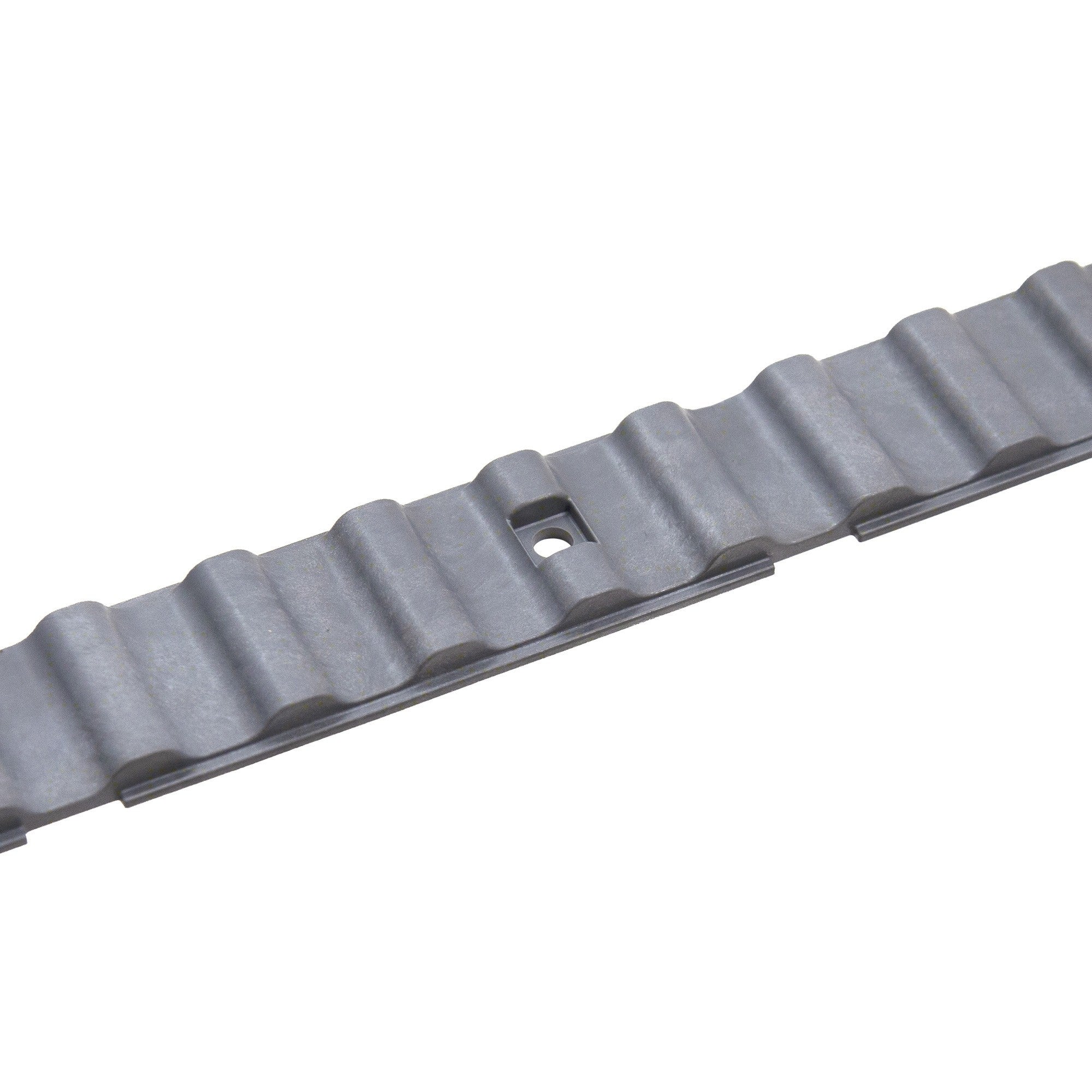

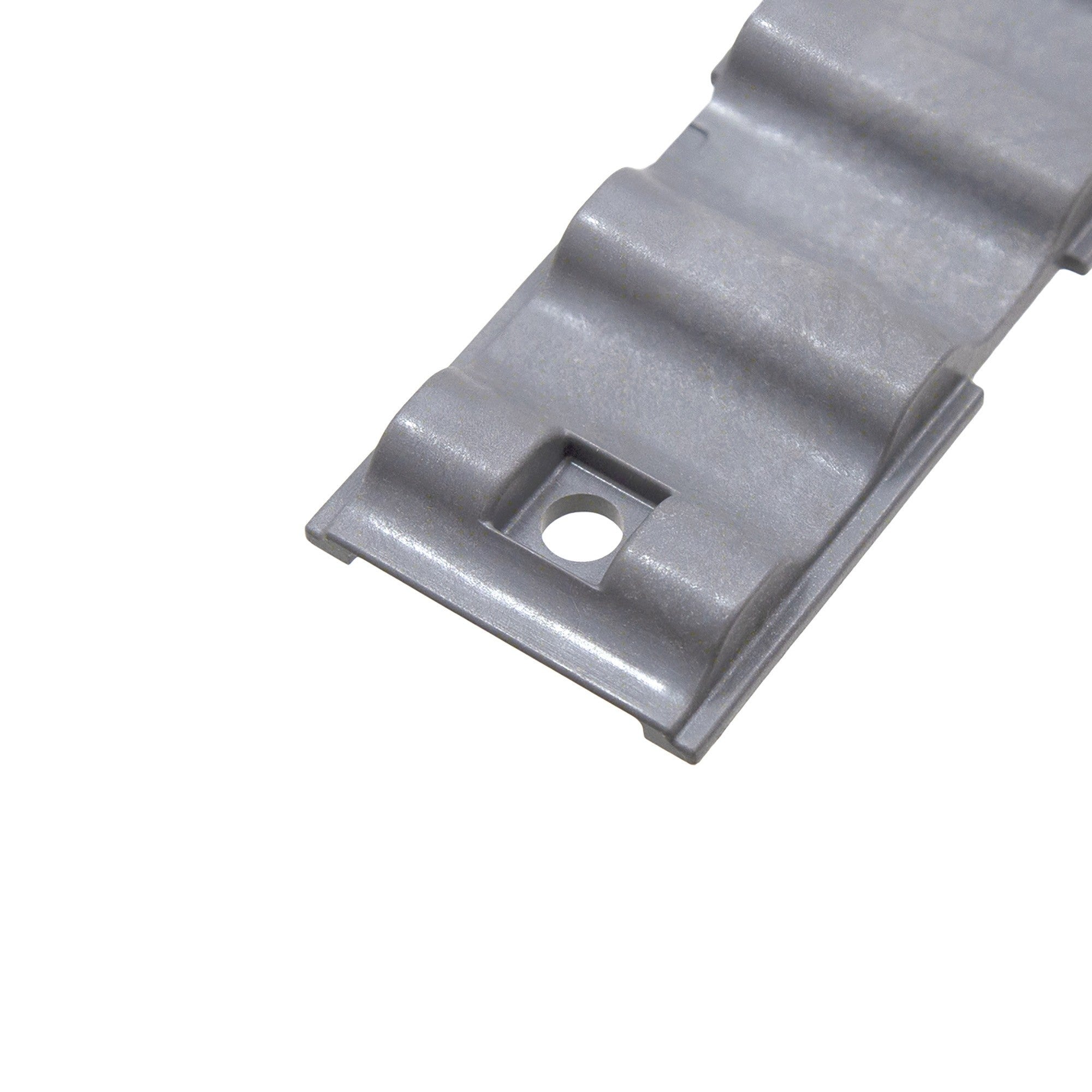

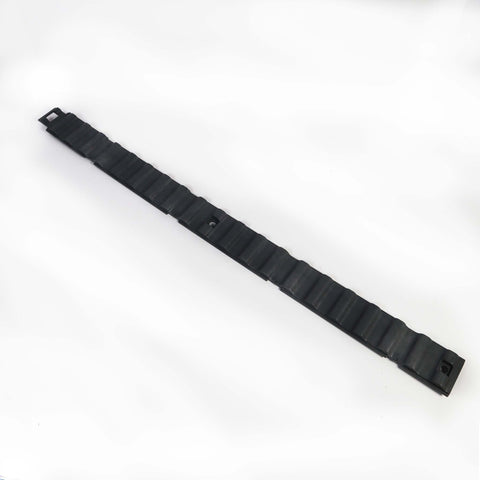

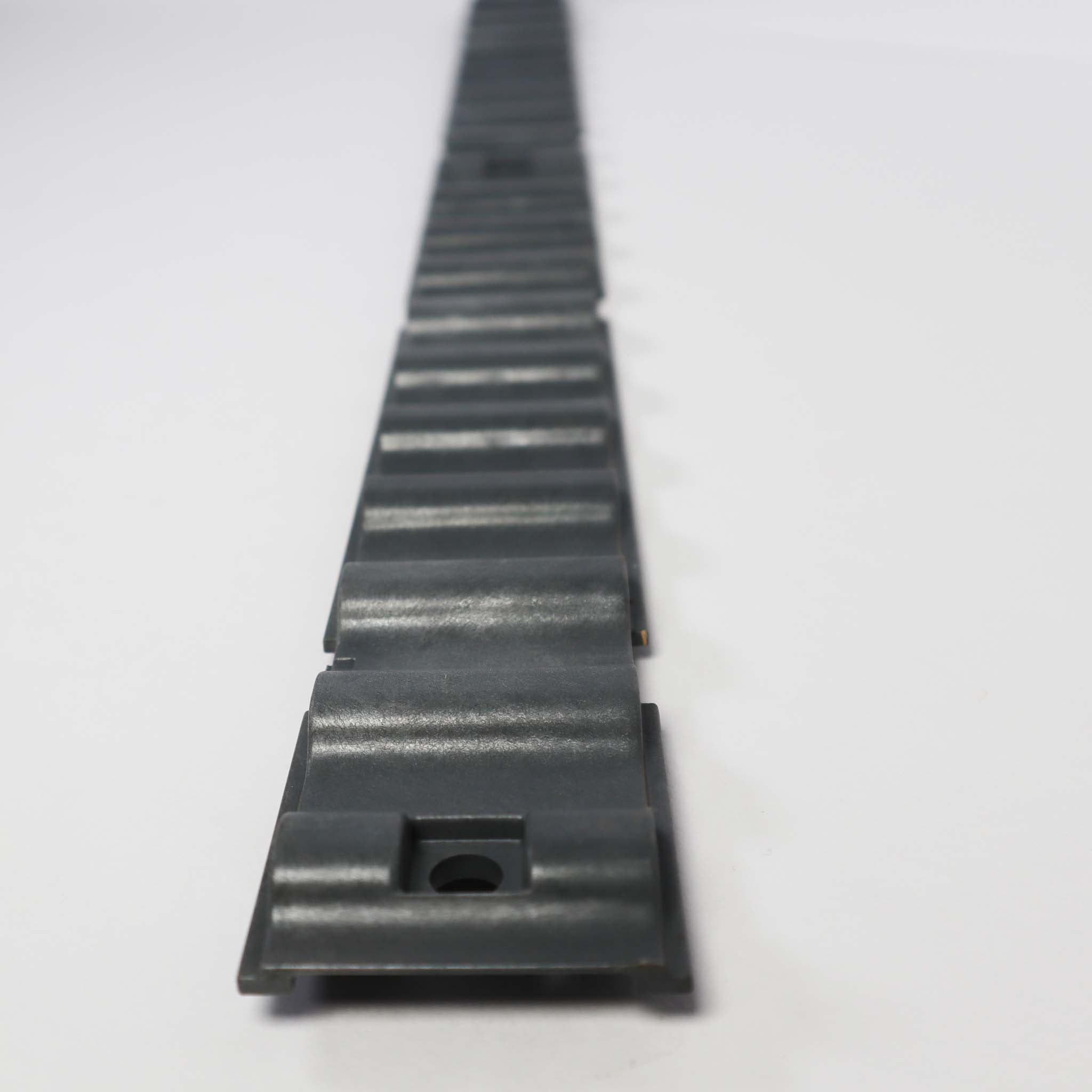

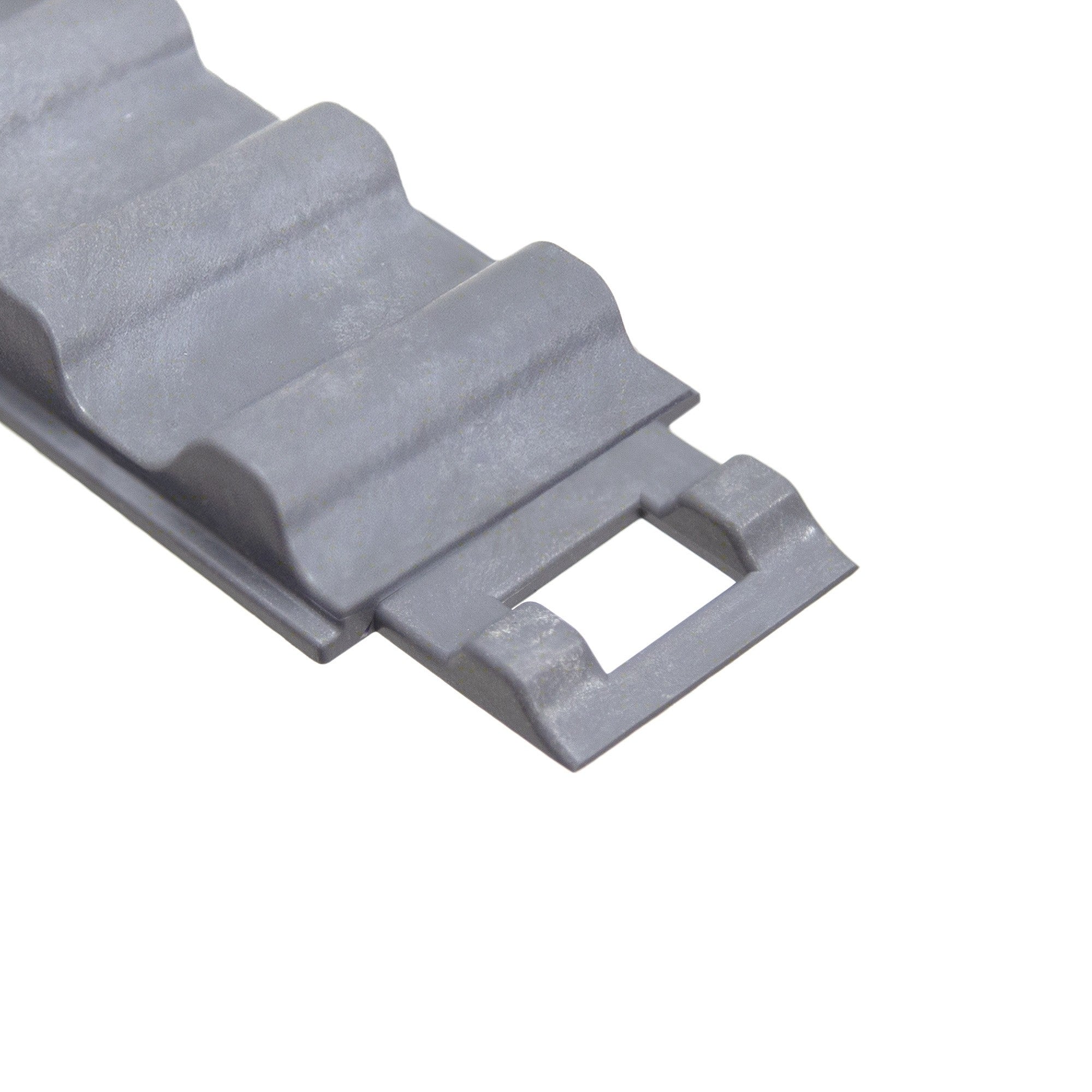

HySecurity MX002599 is the XtremeDrive rack kit for SlideDriver hydraulic slide gate operators. The kit includes one 25 in section of cogged rack and mounting hardware.

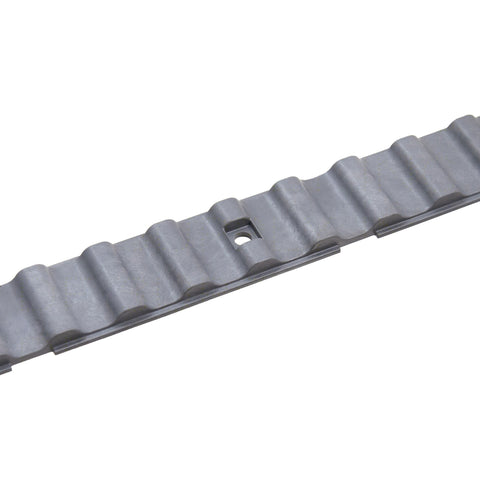

The rack mounts under the drive rail. A cogged XtremeDrive bottom wheel replaces the smooth bottom drive wheel and engages the rack, adding traction for heavy or hard-to-move gates and for rail exposed to ice, snow, salt, sand or dust. The rack is engineered polymer, 0.4 in thick, and needs no lubrication.

Fits

  • SlideDriver 15, 30F, 40, 80, 200
  • SlideDriver 50VF series

What's Included

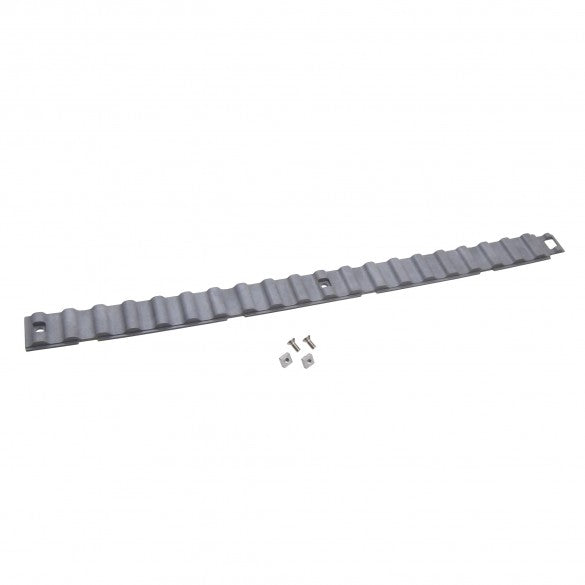

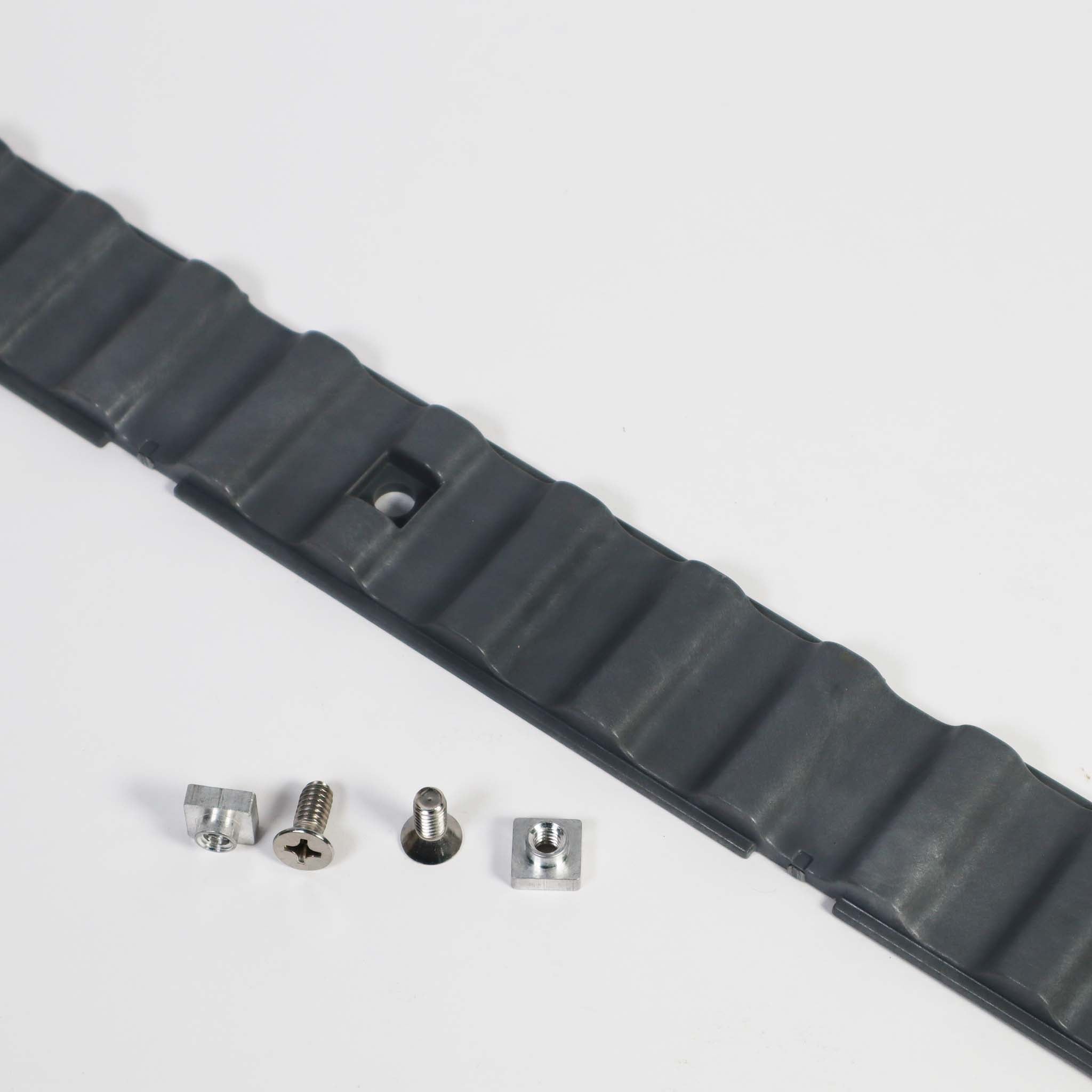

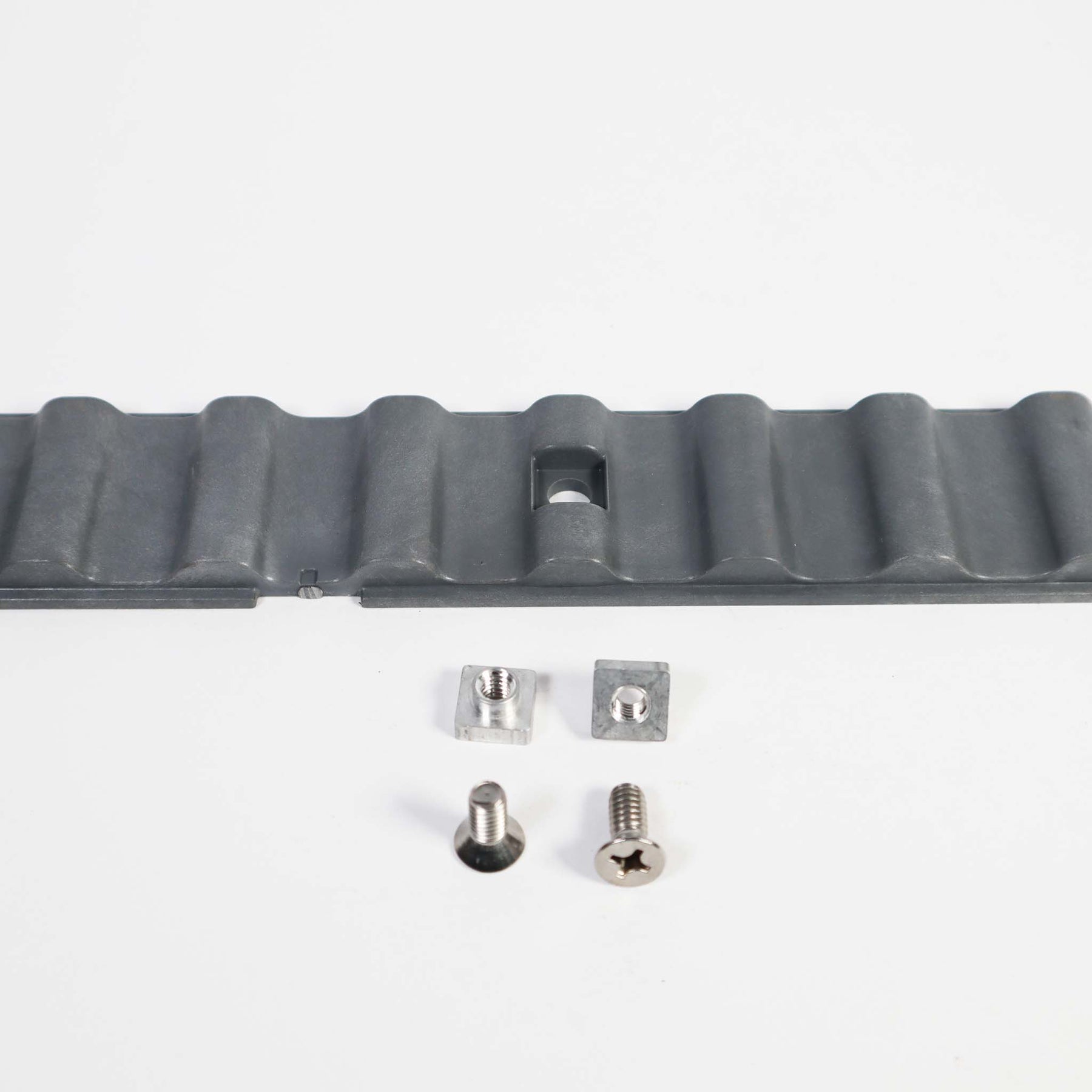

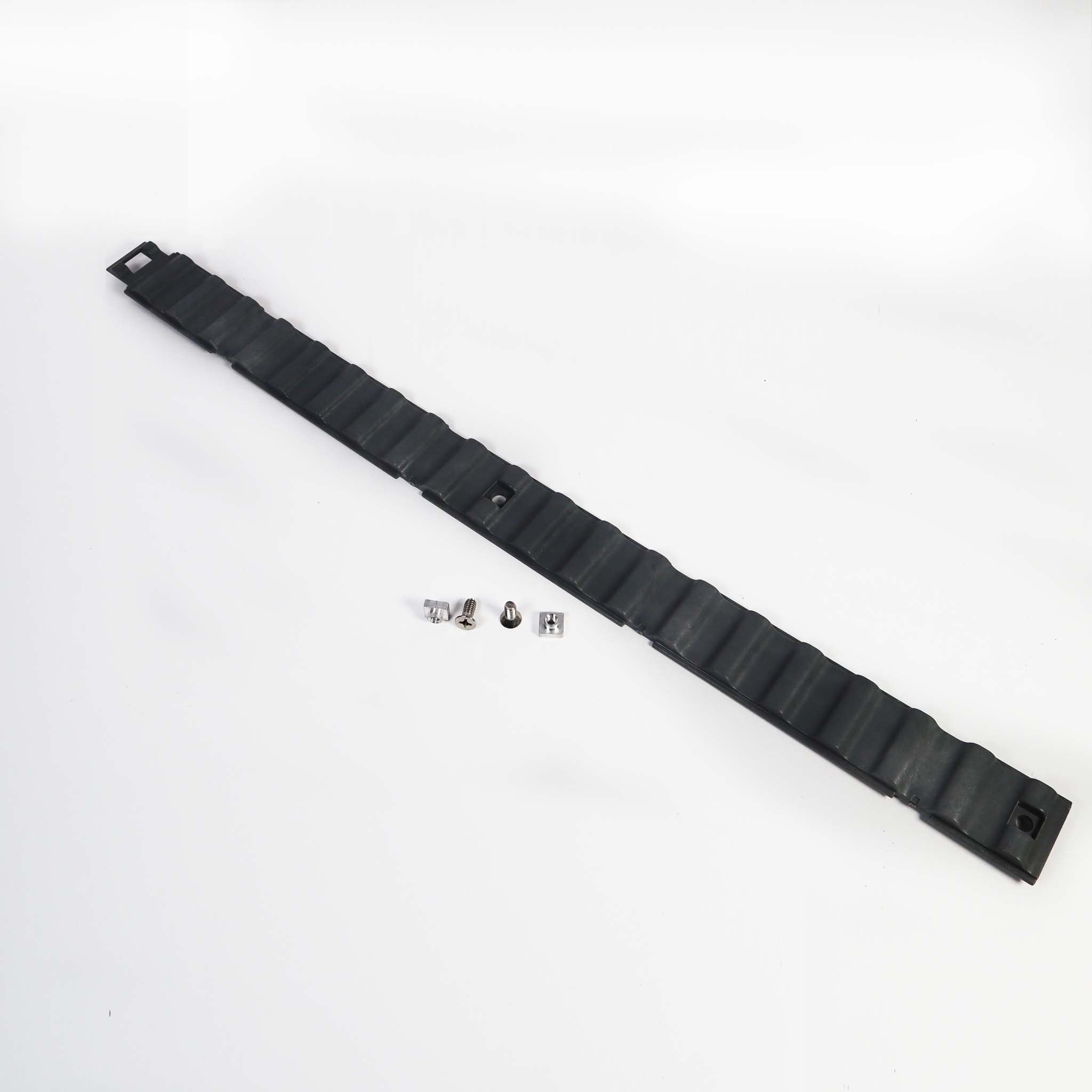

  • One 25 in section of XtremeDrive cogged rack

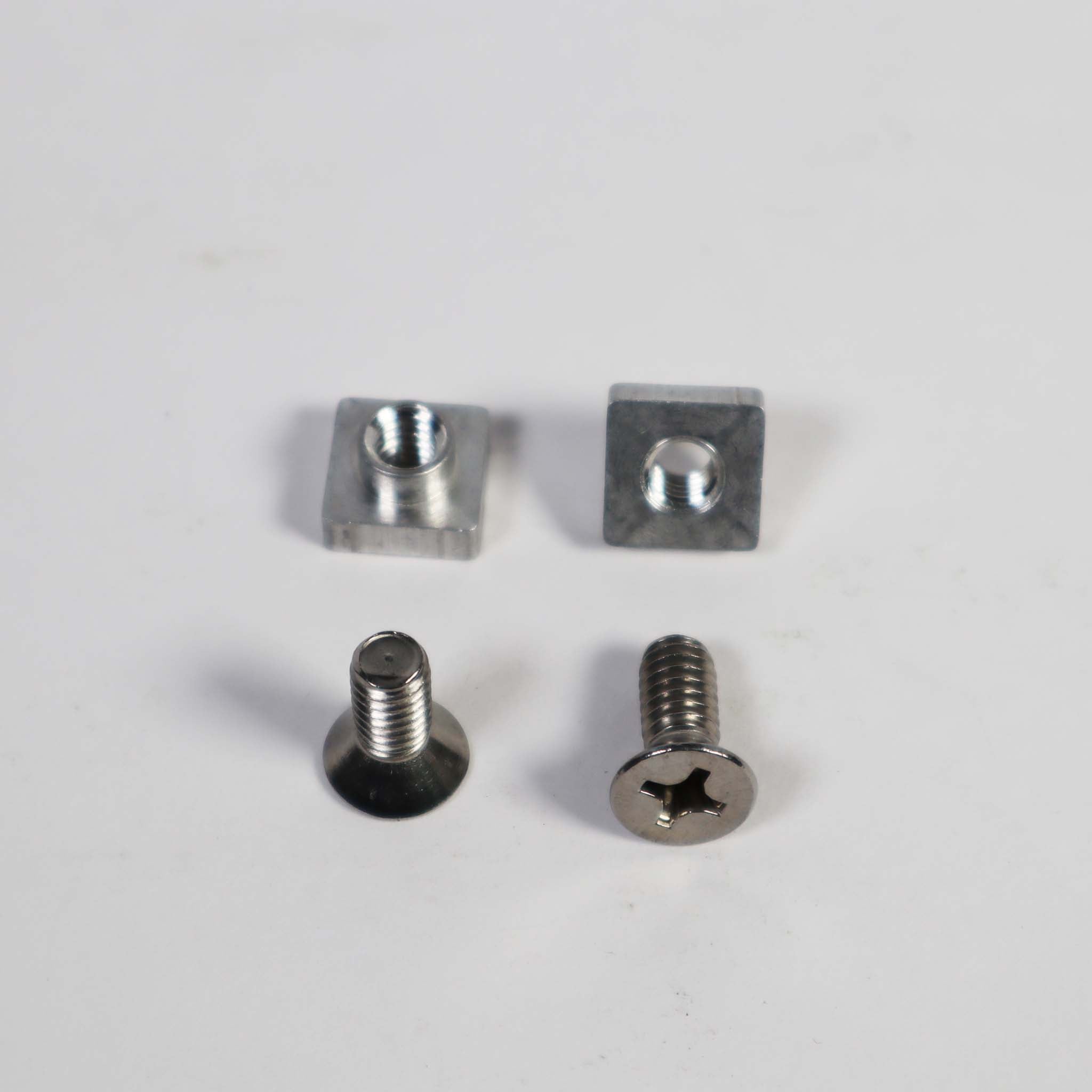

  • Mounting hardware

Before You Order

  • Order enough sections to cover the drive rail. The end section may need to be cut to fit.
  • An XtremeDrive wheel kit is also required. HySecurity lists the current kits as MX5349 (6 in) and MX5350 (8 in).
  • The MX002750 install kit (transfer punch, drill jig, countersink drill bit) is a separate part.
  • On 50VF series operators, install all standard and slow down limit ramps.
  • Part Number: MX002599
  • Part Type: XtremeDrive rack kit
  • Fits: SlideDriver 15, 30F, 40, 50VF series, 80, 200
  • Size/Dimensions: 25 in rack section, 0.4 in thick
