Description

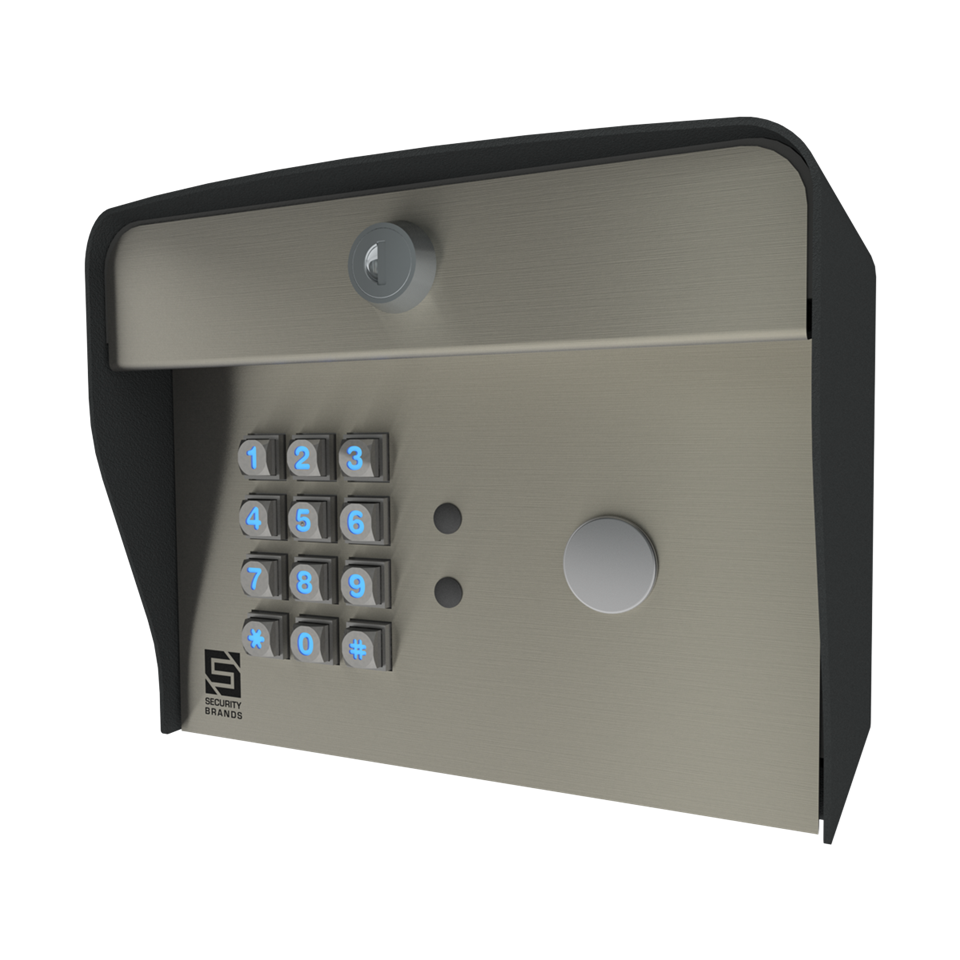

The Security Brands Advantage ONE 26-1000K is a 1,000-code post-mount keypad with Smart LED feedback and a cutout for a Knox key switch, for gate and door access with fire department entry. It accepts 12-24 VAC or VDC and has two relays to control up to 2 gates or doors, with relay time adjustable from 1 to 9,999 seconds.
Codes are four digits. Features include a personal master code, latch codes, a sleep code, "3 strikes, you're out" security, variable relay time, silent mode, timed anti-passback (1 to 9 minutes), an event input and a multicolor LED-backlit keypad. Smart LEDs show status by color: green for a valid code, red for an invalid code or Relay A latched, magenta for Relay B latched and yellow for programming mode. Security Brands rates current draw at less than 67 mA at 12 VDC and less than 35 mA at 24 VDC.
The faceplate is 304 stainless steel with a metal keypad, and the enclosure is powder-coated steel. The unit measures 5.80 in H x 7.45 in W x 5.25 in D. Operating temperature is -13 °F to 158 °F. Security Brands backs it with a two-year limited warranty.
What's Included
- Keypad unit and faceplate
- Mounting hardware
Before You Order
- Requires 12-24 VAC or VDC power. The power supply is not included.
- Mount on a pedestal or post. Pedestals are sold separately.
- Relay contact rating is 3 A at 24 VDC or 3 A at 120 VAC.
- The Knox key switch is not listed as included. Check your local fire department's Knox requirements.
- Other Advantage ONE models: 26-1000 is the keypad without a cutout, and 26-1000I adds an intercom.
- Control up to 2 gates/doors
- 1,000 four-digit code capacity
- Latch code
- Sleep code
- Personal master code
- “3 strikes, you’re out” security
- Variable relay time
- Silent mode
- Timed anti-passback
- Event input
- Audible-tone and Smart LED feedback
- Multicolor LED-backlit keypad
- Model: 26-1000K (post mount with Knox cutout)
- Dimensions: 5.80 in (H) x 7.45 in (W) x 5.25 in (D)
- Shipping Weight: 6 lb
- Input: 12 - 24 VAC/VDC (power supply not included)
- Current Draw: Less than 67 mA @ 12 VDC; less than 35 mA @ 24 VDC, with relay latched and backlit components on
- Relay Contact Rating: 3 A @ 24 V DC load / 3 A @ 120 V AC load
- Variable Relay Time: 1 - 9999 seconds
- Operating Temperature: -13 to 158°F
- Mounting: Four holes in a 3.08 in square pattern around a center wiring pass-through; hole diameter 0.38 in; pass-through 0.88 in; mounting hardware included
- LED Feedback: Multicolor smart LEDs with audible tones: blue = ready, yellow = program mode, green = valid entry, red flashing = invalid entry, red = relay A latched, pink = relay B latched
Manuals & Support: installation manuals, wiring diagrams and troubleshooting
Code entry for up to 2 gates or doors at sites that need up to 1,000 user codes.
- Pedestal or post mount at vehicle gate entries
- Pedestrian gates and entry doors
- Two gates or doors from one keypad
- Sites needing up to 1,000 user codes
- Timed anti-passback on code reuse
- Fire department entry with a Knox key switch
