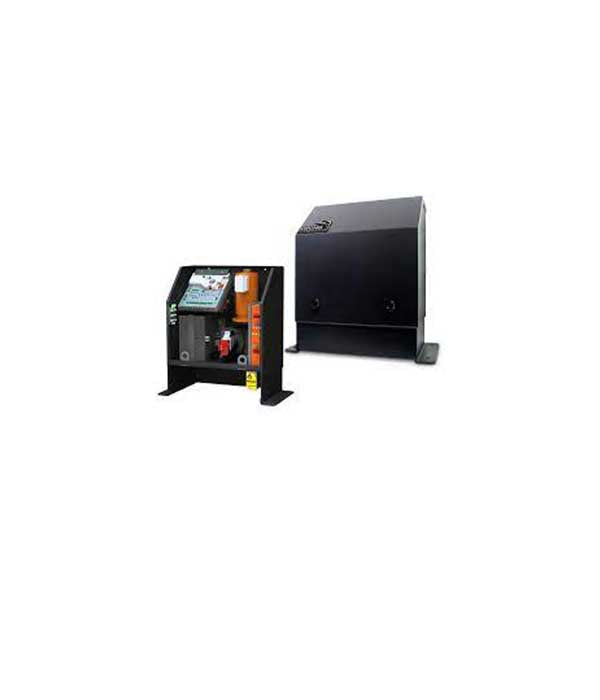

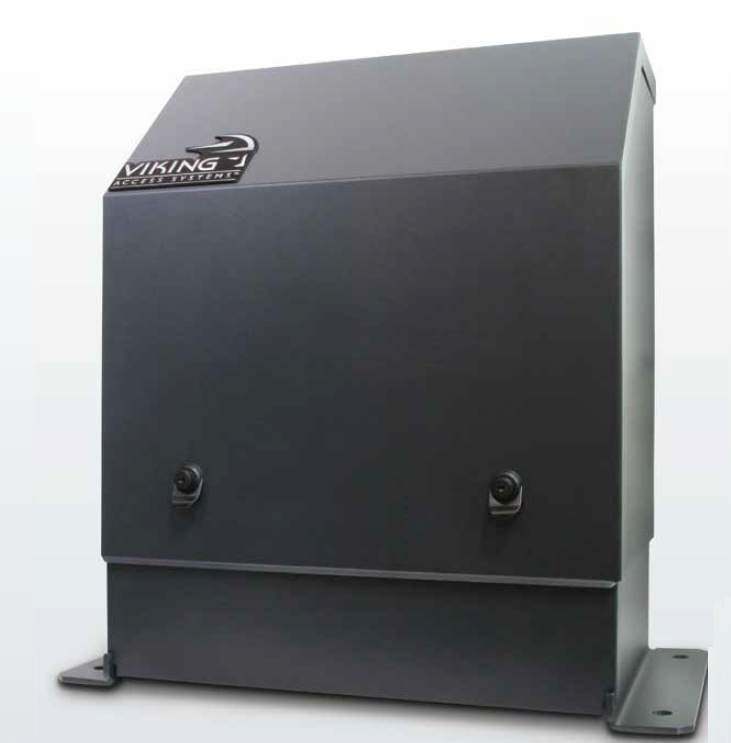

Viking Q-7 Slide Gate Operator NEW
Viking Q-7 Slide Gate Operator
Design Features Overview
Some of the standard features include: 5 year commercial warranty, UL325 and UL991 compliance, innovative fine tune adjustment for the end of gate travel ( down to 1/8” ), adaptive algorithm with smooth acceleration and deceleration, more than 1/2 kilowatt of power, built in battery backup capable of 100 cycles in case of power failure, a powerful and efficient gear-head motor. This operator is equipped with mechanical manual release freeing the gate completely from the gear drive.
Operations Specifications
Operational Voltage ........ 24 DC with 2 HP Motor
Main Power Source ....… 115 / 230 AC Single Phase
Battery …........................ 35 AmpHr 12 DC x 2
Max Gate Capacity ......... 7000 lbs / 120'
Max Operating Speed ..... 14" per Second
Battery Backup …........... 100 Full Continuous
Duty Cycles (4000 lbs)
Maximum Duty Cycle ..... 100% Continuous Cycle
Operating Temperature.. - 20˚ F to 160˚ F
Schematic Diagram(s)
Order Replacement Parts
