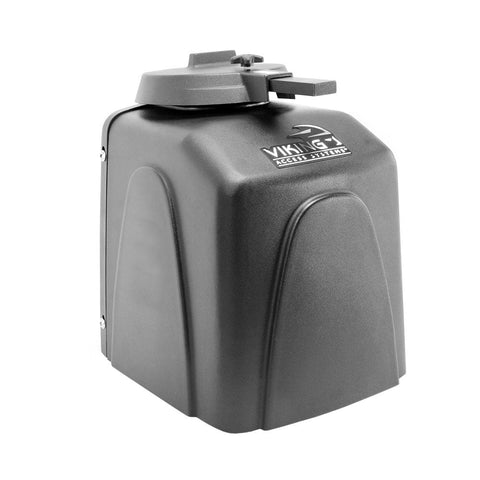

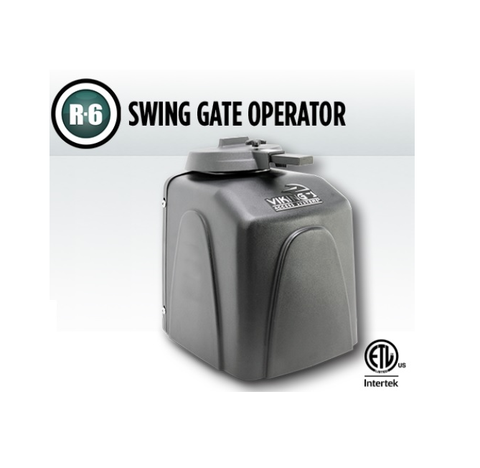

Viking R-6 NX 2nd Gen Swing Gate Operator

Viking R-6 NX 2nd Gen Swing Gate Operator

  • Manufacturer: Viking
  • Item Number:

  • $1,643.35


Viking R-6 Swing Gate Operator

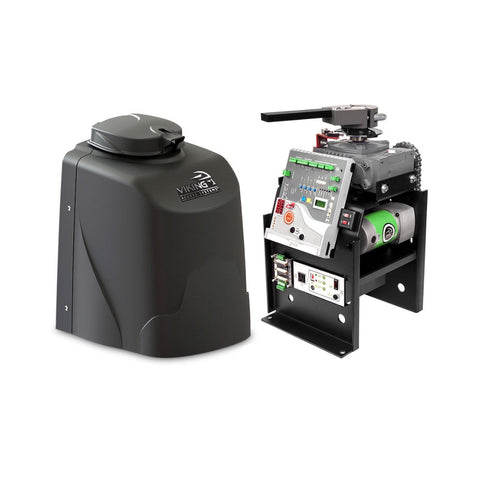

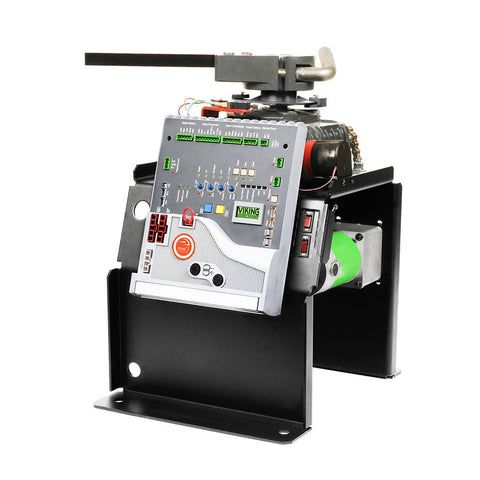

The newly redesigned R-6 residential swing gate operator features the VFlex control board with on-board diagnostics LCD display and new chassis design providing easy viewing of the controls. The R-6 is also equipped with a built in heater; an on board temperature management system and allows for an increased gate capacity of up to 700 lbs.. Vikings integrated true standard battery backup system, convenient fuse access and LED status indicators for incoming high voltage makes the R-6 the operator of choice for your residential swing gate application. The R-6 swing gate operator has a 5 Year residential warranty.

- Operation - 24VDC

- Main Power Source - 120/220VAC Single Phase

- Battery - 7 Amphr 12VDC x 2

- Max Gate Weight - 600lbs / 14'

- Max Operating Speed - 13 to 16 seconds per 90 degrees

- Battery Back-up - 400 cycles (500lbs / 12')

- Max Opening - 120 degrees

- Operating Temperature - -4 degrees F to +150 degrees F

simple limit switch arrangement

fail-safe / fail-secure clutch

800 cycles in case of power failure

direct-drive gear head motor

soft-start / soft-stop

intelligent obstruction detection

UV stabilized polyethylene cover

120 / 220 VAC power source

clam shell cover design

on-board lightening protection

Please call or email us for freight pricing, we can usually beat the price quoted online by using different regional freight carriers or shipping direct from the manufacturer. If you are getting multiple items we can usually get you an additional discount as well.

We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!

PRODUCT INFO PAGES

Click Here for Spec Sheet

Click Here for Manual
