Viking VA-E4K - E-4 Residential Swing Gate Operator Single Gate Kit
Viking VA-E4K - E-4 Residential Swing Gate Operator Single Gate Kit
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

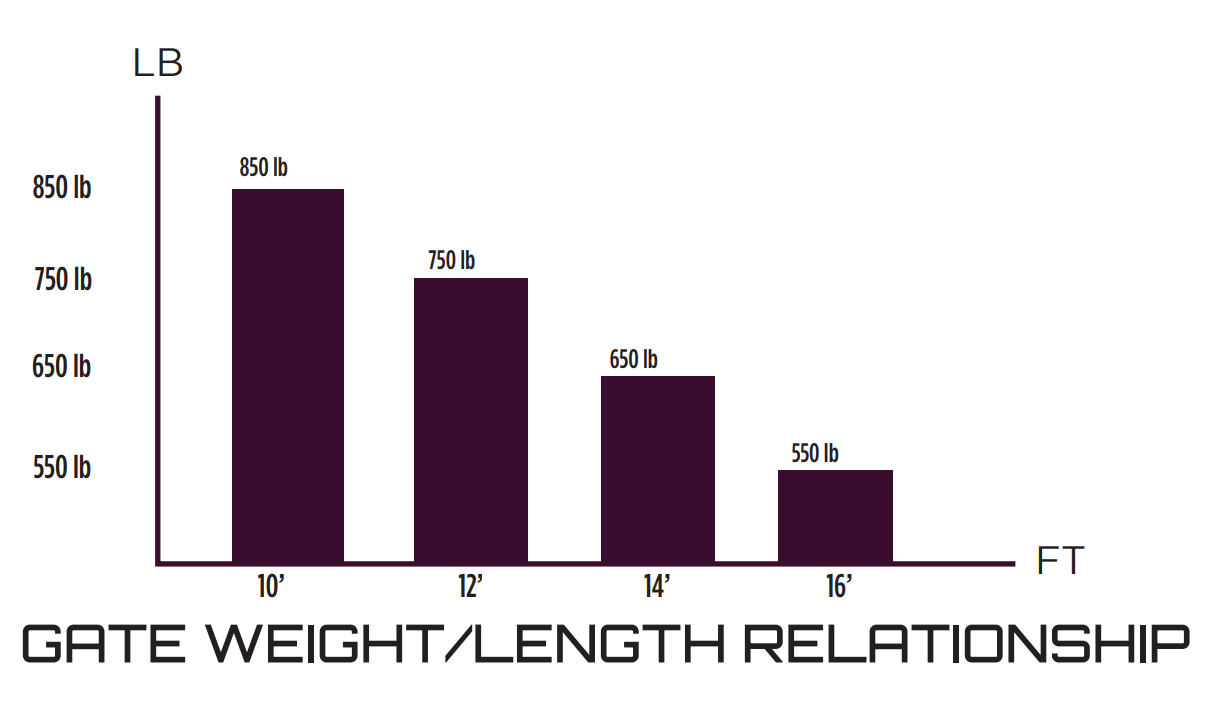

Viking E-4 Residential Swing Gate Opener maximum gate capacity of 850 lbs. for 10' gate or 550 lbs. for 16' gate.
Kit Includes:

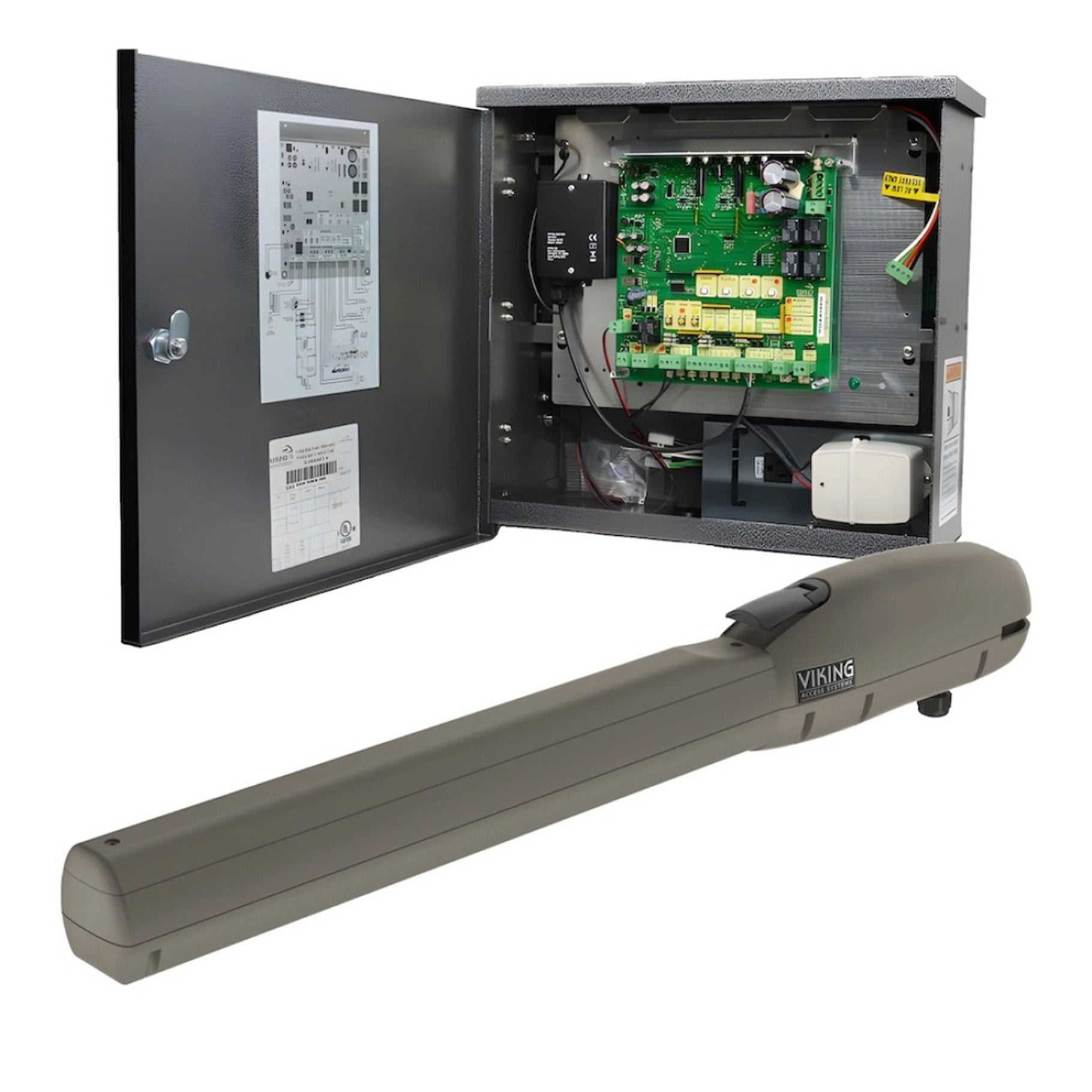

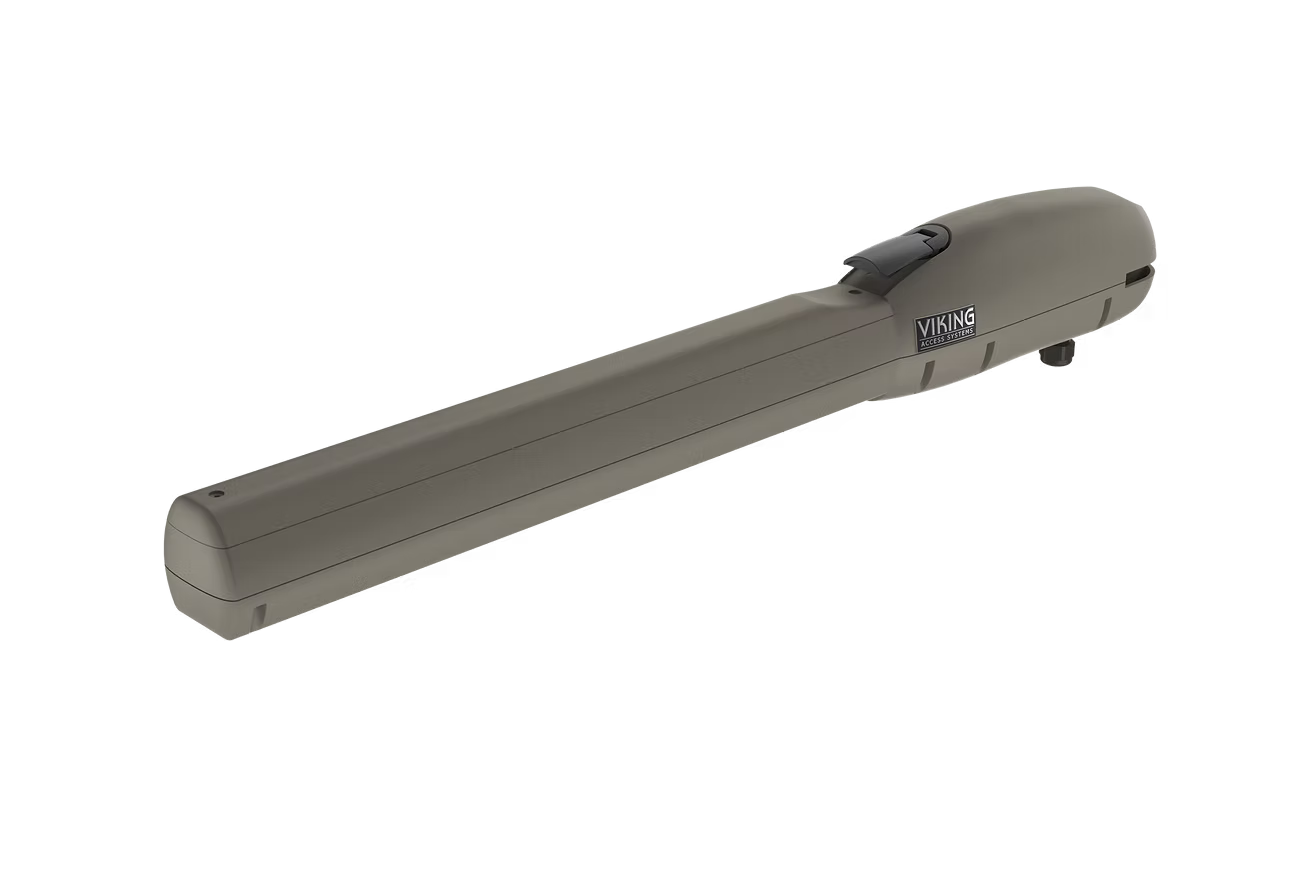

- (1) E4 Operator Single Kit (Actuator & Control Box w/ E4 Control Board)
- (1) Photocell - 10K send & receive FA-XP30-10K (785105)
- (2) Transmitter 433RC FA-XT4RC (787453)
- (1) Receiver 433RC 2-channel FA-XR2C (787752)
E-4 CONTROL BOARD
• 1 board is designed to control a single or dual gate, no other
boards needed
• Direct solar input with dedicated port for solar panel
• Low power consumption board with automatic sleep mode
• Efficient battery charger
BATTERY BACKUP INCLUDED
• 2 batteries included in case of power outage
• Up to 400 cycles on battery back up
LIGHTNING PROTECTION
• Advanced lightning strike protection up to 20,000 volts /
10,000 amps
• On-board surge protection
PROTECTION
• UV powder coating on aluminum alloy chassis provides
additional layer of protection against corrosion and weather
elements
LOCKABLE MANUAL RELEASE
• Mechanical disengagement so the gate can be moved freely

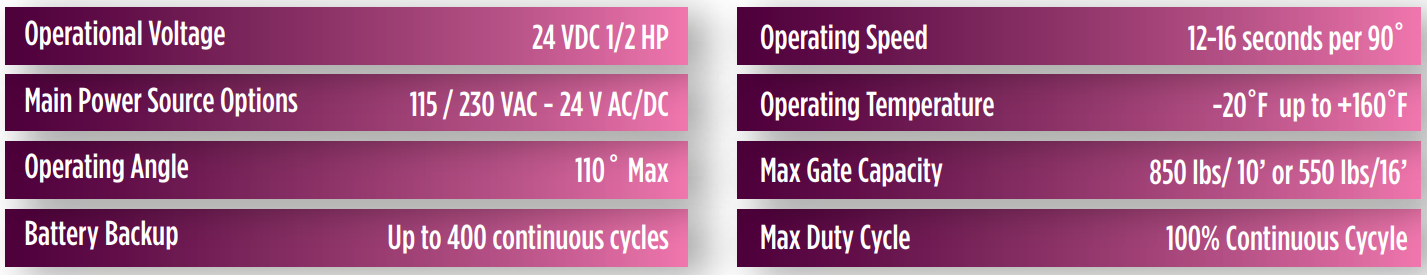

- Maximum gate capacity of 850 lbs/10ft or 550 lbs/16ft
- Operational Voltage - 24VDC 1/2 HP
- Main Power Source Options - 115 / 230 VAC - 24 V AC/DC
- Operating Angle - 110 Degrees Max
- Battery Backup - Up to 400 continuous cycles
- Operating Speed - (12-16) seconds per 90 Degrees
- Operating Temperature - (-20˚)F up to (+160˚)F
- Max Duty Cycle - 100% Continuous Cycle
