Description

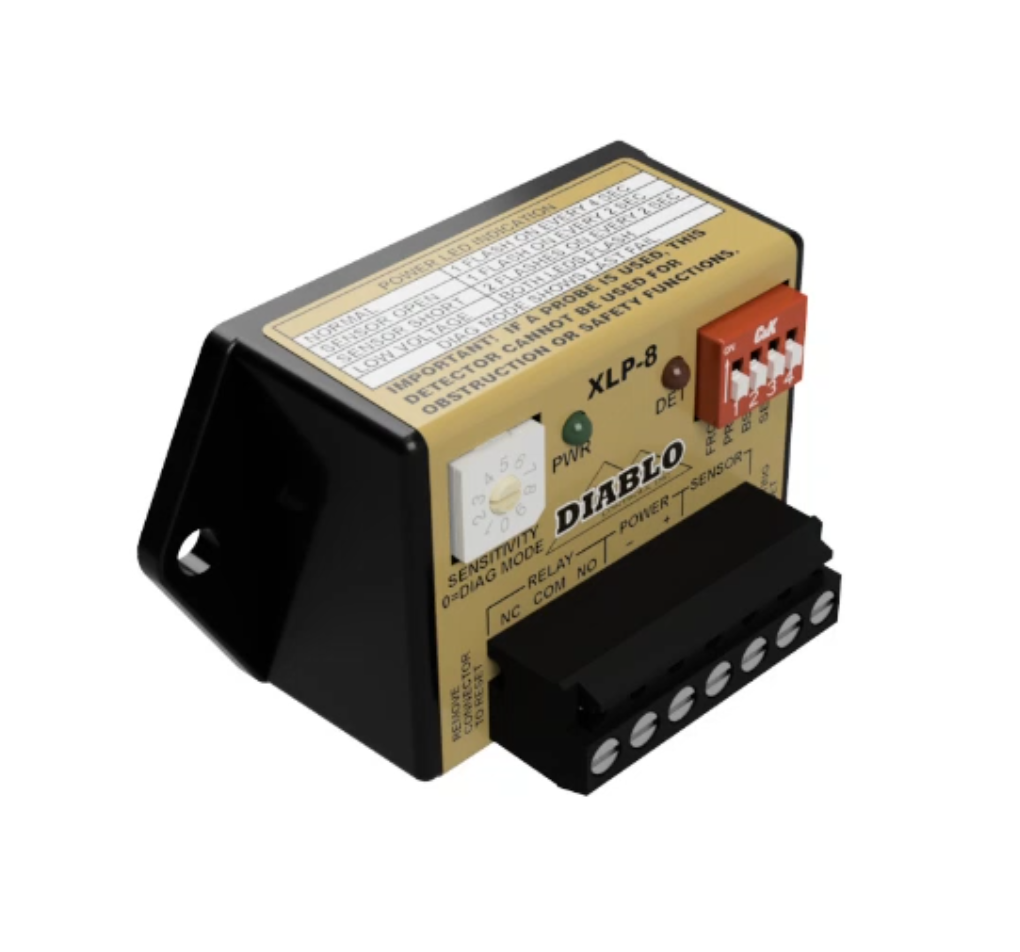

The Diablo Controls XLP-8 is an extreme low power single channel detector that works with a standard inductive loop or a Diablo mini-loop (magnetometer probe). The detector runs on 8 to 40 VDC or 8 to 28 VAC and draws under 1 mA with no vehicle (0.85 mA max at sensitivities 1 to 6), so it suits solar and battery backed gates. It measures 2.362 x 0.866 x 2.008 in.
Relay outputs have NO and NC contacts rated 1 A (125 VAC or 60 VDC). Nine sensitivity settings are selectable, and a 4-position DIP switch sets probe mode, sensitivity boost, fail-safe or fail-secure, and frequency. The probe is a pipe-shaped sensor about 4-1/2 x 1 in, buried in the ground. Loop inductance range is 20 to 1500 µH. It operates from -35°F to 165°F.
Before You Order
- With probe mode on, there is no presence detection. Do not use it as a safety or obstruction detector.
- Sold alone for a standard loop, or as the XLP-8-75 and XLP-8-100 kits with a mini-loop probe.
- Results in the opportunity for greatly increased service life due to the reduced exposure to hazards such as road traffic, pavement movement, pavement deterioration, and roadwork.
- The fact that the “Mini-Loop” is not installed in the pavement and that the lead-in is very durable allows the “Mini-Loop” to be used in situations such as cobblestone pavements, poor pavements, dirt/gravel roads, and bridge decks.
- Minimal intrusion into good pavements!
- Product Type: Extreme low power single channel loop detector
- Model: XLP-8
- Power: 8 to 40 VDC or 8 to 28 VAC; under 1 mA idle
- Detection: Inductive loop (20 to 1500 µH) or mini-loop probe; NO/NC relay, 1 A
- Dimensions: Detector 2.362 x 0.866 x 2.008 in
- Operating Temperature: -35°F to 165°F
The Diablo “Mini-Loop” is intended to be buried beneath the roadway surface and connected, via lead-in cable, to the Diablo XLP-8 Detector.
Installation is straightforward. A 1-in. diameter hole (18-in to 24-in. deep) is drilled for the “Mini Loop”. A shallow, 1/4-in. saw cut from the hole to the edge of the road provides a path for the lead-in wire. The “Mini-Loop” with lead-in is inserted into the hole and the hole is filled with dry sand. Detector loop sealant material is then used to fill the slot and top portion of the hole.
It is important that the “Mini-Loop” be installed in a vertical position and that the vertical position of the “Mini-Loop” be maintained. Under some soil conditions, installation can be further simplified by installing the Mini-Loop inside a length of PVC pipe (not steel pipe) with an interior diameter of about 1 inch. In this case, the hole must be slightly larger than the outside diameter of the PVC pipe, typically 1-5/8-in. or less. After insertion of the PVC pipe and Mini-Loop, all cavities are back-filled with fine, dry sand and the installation completed in the normal manner.
