Description

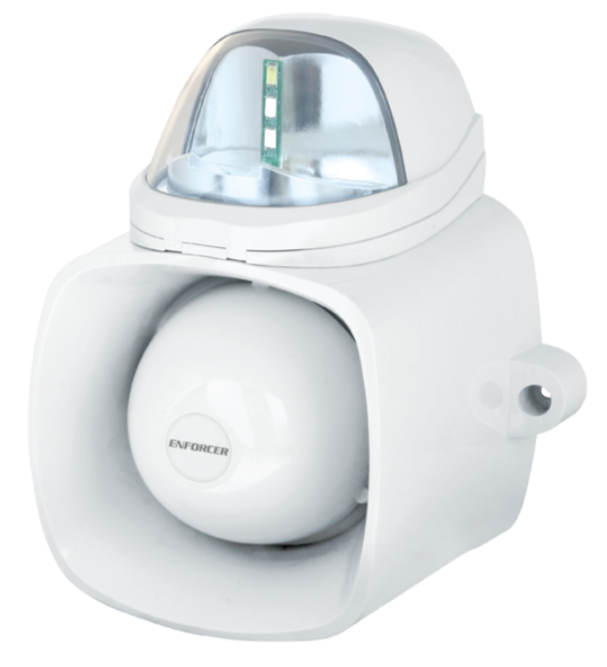

The Seco-Larm ENFORCER SH-816S-SQ/C is a self-contained siren/strobe with a broadcast input and a clear LED strobe lens. It runs on 9 to 15 VDC. The siren is a 120 dB warble tone, and the 25 W peak speaker also plays an audio or PA input.
Alarm input 1 sounds the siren and strobe together. Alarm input 2 runs the strobe alone, at 100 flashes per minute. Audio input overrides the siren for the length of the broadcast. Current draw at 12 VDC is 680 mA for the siren, 190 mA for the strobe and 870 mA for both. A built-in tamper switch output is rated 100 mA at 30 VAC/VDC. White polycarbonate housing, IP65. Operating range is -4 to 131°F. Size is 6-1/8 x 7 x 4-1/2 in (155 x 178 x 115 mm), 2 lb 2 oz.
What's Included
- SH-816S-SQ/C siren/strobe
- 4 mounting screws
- 4 plastic wall anchors
- Back removal tool
- Manual
Before You Order
- Mounts on a wall or on a single-gang, double-gang or C-type back box. Mount with the arrow on the base pointing up.
- Audio input needs power on the P.A. (+) terminal. Up to 8 wires depending on the hookup.
- Replacement lens: SH-816S-SLQ/C.
- Siren only: SH-816S-BQ. With custom message playback: SH-816S-SMQ/C.
- Lens colors in this series: amber (/A), blue (/B), clear (/C) and red (/R).
- 9~15VDC
- Low current draw
- 120dB Warble-tone siren
- 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
- Built-in tamper alarm output
- Weatherproof for outdoor/indoor use, IP65
- Easy installation
- Mount directly to wall or to most common back boxes
- Bright LED strobe light
- Strobe can be triggered separate from siren
- Strobe available in amber, clear, blue, or red
- Product Type: Siren/strobe with broadcast input
- Model: SH-816S-SQ/C
- Power: 9-15 VDC; 680 mA siren, 190 mA strobe, 870 mA both at 12 VDC
- Siren: 120 dB warble tone
- Speaker: 25 W peak, audio/PA input
- Strobe: LED, 100 flashes per minute, clear lens
- Tamper Output: 100 mA at 30 VAC/VDC
- Mounting: Wall, single-gang, double-gang or C-type back box

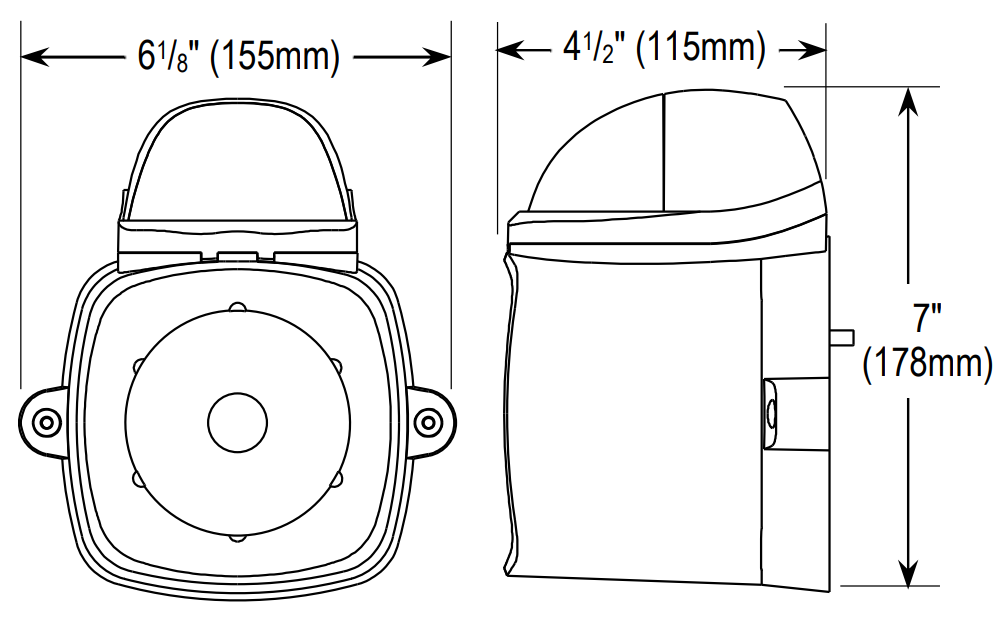

- Dimensions: 6-1/8 x 7 x 4-1/2 in (155 x 178 x 115 mm), 2 lb 2 oz
- Operating Temperature: -4 to 131°F (-20 to 55°C), 0-95% humidity
- Enclosure Rating: IP65, white polycarbonate housing
Audible and visual alarm output for intrusion, access control and building warning systems.
- Burglar alarm siren output
- Indoor and outdoor intrusion warning
- Door forced or held alerts
- Commercial building alarm notification
- Warehouse and yard warnings
