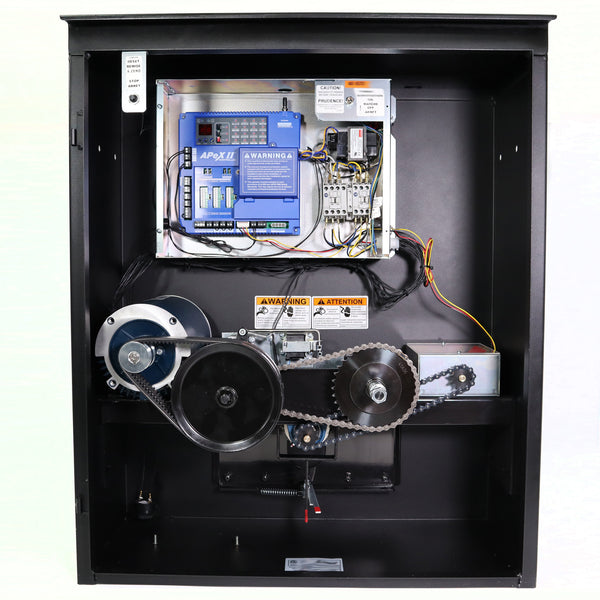

Linear HSLG Manuals & Support
Identify your model
The model number is on the label inside the cover, for example HSLG-121. The first digit after the dash is horsepower, the second is voltage and the third is phase.
- Horsepower: 2 = 1/2 HP, 4 = 3/4 HP, 1 = 1 HP
- Voltage: 1 = 115 VAC, 2 = 208/230 VAC, 4 = 460 VAC, 8 = 208 VAC
- Phase: 1 = single phase, 3 = three phase
Have the model and serial number ready when you order boards or motors. Parts can differ between single and three phase units.
Older HSLG units built before the APeX controller use different boards and an older manual. The 2003 and earlier installation guides are not listed here; use the part numbers in the current manual to match parts.
Key specs
| Horsepower | 1/2, 3/4 or 1 HP |
|---|---|
| Max gate | 1,000 lb / 35 ft (1/2 HP); 1,200 lb / 45 ft (3/4 HP); 1,700 lb / 55 ft (1 HP) |
| Gate speed | About 10 in per second |
| Duty cycle | Continuous |
| Power | 115, 208, 208/230 VAC single phase or 208/230/460 VAC three phase, by model |
| Drive | Double V-belt to #40 chain, adjustable torque limiter, solenoid disc brake |
| Controller | APeX with three-button station and diagnostic display |
| Dual gate | Built in, 3-wire shielded COMM LINK |
| Mounting | Post mount standard; pad mount optional |
| Accessory power | 24 VDC, 0.5 A max |
Manuals and documents
Installation Manual
-
HSLG Installation Guide (APeX)
View PDF: HSLG Installation Guide (APeX) (opens in a new tab) -
HSLG Installation Guide, Green Board (pre-2011 operators)
View PDF: HSLG Installation Guide, Green Board (pre-2011 operators) (opens in a new tab) -
HSLG Post Mount Drawing
View PDF: HSLG Post Mount Drawing (opens in a new tab)
Wiring Diagram
-
HSLG Wiring Specifications
View PDF: HSLG Wiring Specifications (opens in a new tab)
Parts List
-
HSLG Exploded View and Parts
View PDF: HSLG Exploded View and Parts (opens in a new tab)
Spec Sheet
-
HSLG Spec Sheet
View PDF: HSLG Spec Sheet (opens in a new tab)
Other documents
-
Typical Slide Gate Loop Layout (3 Loops)
View PDF: Typical Slide Gate Loop Layout (3 Loops) (opens in a new tab)
Troubleshooting
Common questions
It needs at least two monitored safety devices, one for each direction of travel, before it will run. Approved devices include Miller Edge MGO20, MGR20 and MGS20 edges, the Miller Edge MIM-62 module, Omron E3K-R10K4-NR, Miller Edge RG-K-R and PG-K-R50 photo eyes, and EMX IRB-MON and IRB-RET photo eyes.
Two obstructions in a row lock the operator out and the beeper sounds. Clear the obstruction, then press STOP or the RESET button on the cover.
The max run timer ran out while opening (En 01) or closing (En 02). Look for a broken chain or belt or a slipping sprocket, and check the timer setting. Press STOP to clear it.
Connect the COMM LINK terminals A, B and C on both operators with 3-wire shielded cable (Belden 8760, Linear P/N 2500-1982). Set limits and entrapment settings on each operator alone first, then set both to dual gate.
Yes. Linear offers an in-cabinet heater: P/N 2510-262 for 115 VAC and 2510-273 for 208/230 VAC units. 460 VAC three phase units use P/N 2510-354.
Replacement parts
Parts diagram: Linear HSLG Single Phase Parts Diagram and Replacement Parts
