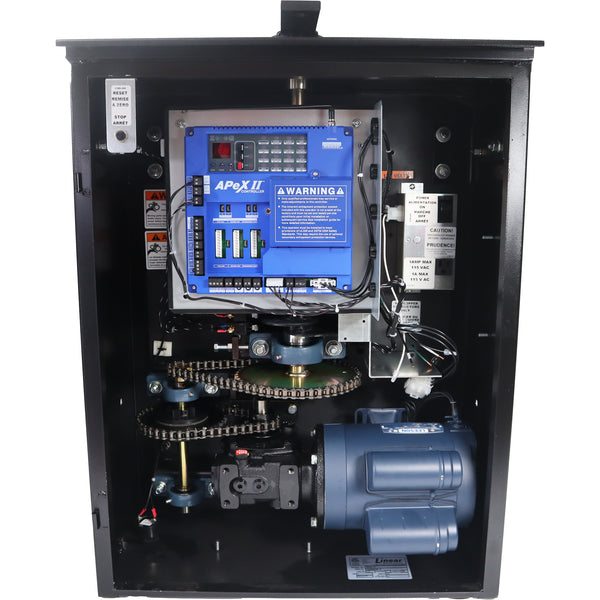

Linear SWG Manuals & Support
Identify your model
The model number is on the label inside the cover, for example SWG-121. The first digit after the dash is horsepower, the second is voltage and the third is phase.
- Horsepower: 2 = 1/2 HP, 4 = 3/4 HP, 1 = 1 HP
- Voltage: 1 = 115 VAC, 2 = 208/230 VAC, 4 = 460 VAC, 8 = 208 VAC
- Phase: 1 = single phase, 3 = three phase
Have the model and serial number ready when you order boards or motors. Parts can differ between single and three phase units.
The SWG is right-hand and left-hand convertible. The SWR, SWC and SWD are a different series with their own manual.
Key specs
| Horsepower | 1/2, 3/4 or 1 HP |
|---|---|
| Max gate | 700 lb / 18 ft (1/2 HP); 900 lb / 22 ft (3/4 HP); 1,000 lb / 26 ft (1 HP) |
| Open time | About 15 seconds per 90° |
| Duty cycle | Continuous |
| Power | 115, 208, 208/230 VAC single phase or 208/230/460 VAC three phase, by model |
| Drive | 60:1 right-angle reducer, #40 chain, torque limiter, over-center arm lock |
| Controller | APeX with three-button station and MegaCode receiver |
| Mounting | Post mount standard; pad mount with pedestal 2110-183-BT |
| Accessory power | 24 VDC |
Manuals and documents
Installation Manual
-
SWG Installation Guide (APeX)
View PDF: SWG Installation Guide (APeX) (opens in a new tab) -
SWG Mounting Pad Installation
View PDF: SWG Mounting Pad Installation (opens in a new tab)
Wiring Diagram
-
SWG Wiring Specifications
View PDF: SWG Wiring Specifications (opens in a new tab)
Spec Sheet
-
SWG Spec Sheet
View PDF: SWG Spec Sheet (opens in a new tab)
Other documents
-
Typical Single Swing Gate Inswing Loop Layout
View PDF: Typical Single Swing Gate Inswing Loop Layout (opens in a new tab)
Troubleshooting
Common questions
It needs at least two monitored safety devices, one for each direction of travel, before it will run. Approved devices include Miller Edge MGO20, MGR20 and MGS20 edges, the Miller Edge MIM-62 module, Omron E3K-R10K4-NR, Miller Edge RG-K-R and PG-K-R50 photo eyes, and EMX IRB-MON and IRB-RET photo eyes.
Two obstructions in a row lock the operator out and the beeper sounds. Clear the obstruction, then press STOP or the RESET button on the cover.
The max run timer ran out while opening (En 01) or closing (En 02). Look for a broken chain or belt or a slipping sprocket, and check the timer setting. Press STOP to clear it.
Connect the COMM LINK terminals A, B and C on both operators with 3-wire shielded cable (Belden 8760, Linear P/N 2500-1982). Set limits and entrapment settings on each operator alone first, then set both to dual gate.
Yes. Post mount is standard. For a pad, use the optional pedestal, part number 2110-183-BT.
Replacement parts
Parts diagram: Linear SWG Parts Diagram and Replacement Parts
