BEA IS40P Overhead Sensor

BEA IS40P Overhead Sensor

  • Manufacturer: BEA
  • Item Number:

  • $376.00

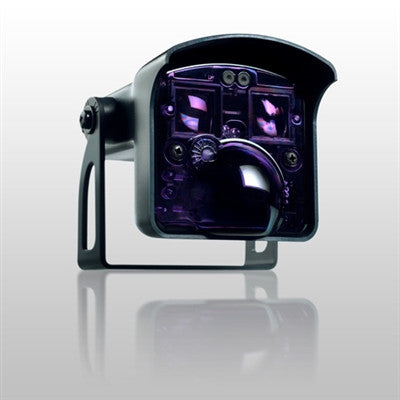

BEA 10IS40P: IS40P Industrial Presence Sensor

Overhead activation and presence sensor for industrial environments utilizing microwave and infrared detection technology

* Universally compatible with any industrial door.

* Ability to disregard pedestrians and only detect large masses.

* Can detect traffic moving both towards and away from the door.

* Can be mounted between 8 to 16ft.



We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!



Technology

Active Infrared



Detection Mode

Presence



Mains Frequency

50 – 60 Hz



Power Consumption

< 3.5 W



Relay Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power

2 Relays (free of potential change-over contact)
42 VAC / VDC
1 A (resistive)
30 W (DC) / 48 VA (AC)



Supply Voltage

12 – 24 VAC ±10%
12 – 24 VDC 10% / −3%



Temperature Range

−22 ºF – 140 ºF



Tilt Angle

15º – 45º



LED Signal

Red (Presence Relay), Green (indicator)



Transmitter Frequency / Wavelength

875 nm



Transmitter Power Density

< 250 mW/m2



Detection Field

10 ft × 10 ft @ max. mounting height of 16 ft
(emitting spots*)



Output Hold Time

0.5 s



Min. Detection Speed

0 in / s to activate detection



Reaction Time

250 ms



Mounting Height

96 in – 192 in (8 ft – 16 ft)



Humidity

0 – 95% non-condensing



Weight

14 oz



Dimensions

3.8 in (W) × 4 in (H) × 5 in (D)



Material

ABS & Polycarbonate



Cable Length

32 ft (9.75 m)



Degree of Protection

NEMA 4 / IP65



Norm Conformance

EMC: 2004/108/EEC
R&TTE: 1999/5/EC
