HySecurity SlideDriver 40-C correctional slide gate operator

Hysecurity SlideDriver 40-C 222 CE ST Corrections Facility Replaced by the SlideDriver II SD40 Corrections

Name: Hysecurity SlideDriver 40-C 222 CE ST Corrections Facility ***Replaced by the SlideDriver II SD40 Corrections***
Brand: HySecurity
SKU: 222 CE ST
Price: 12999.00 USD
Availability: InStock

HySecurity ITEM: 222 CE ST

Manuals & Support · installation manuals, wiring diagrams and troubleshooting

Price

Current Trade Policy Costs Included In Price

In Cart Discounts Offered on Many Products

GSA, Net 30 and purchase orders available

Quantity

Description

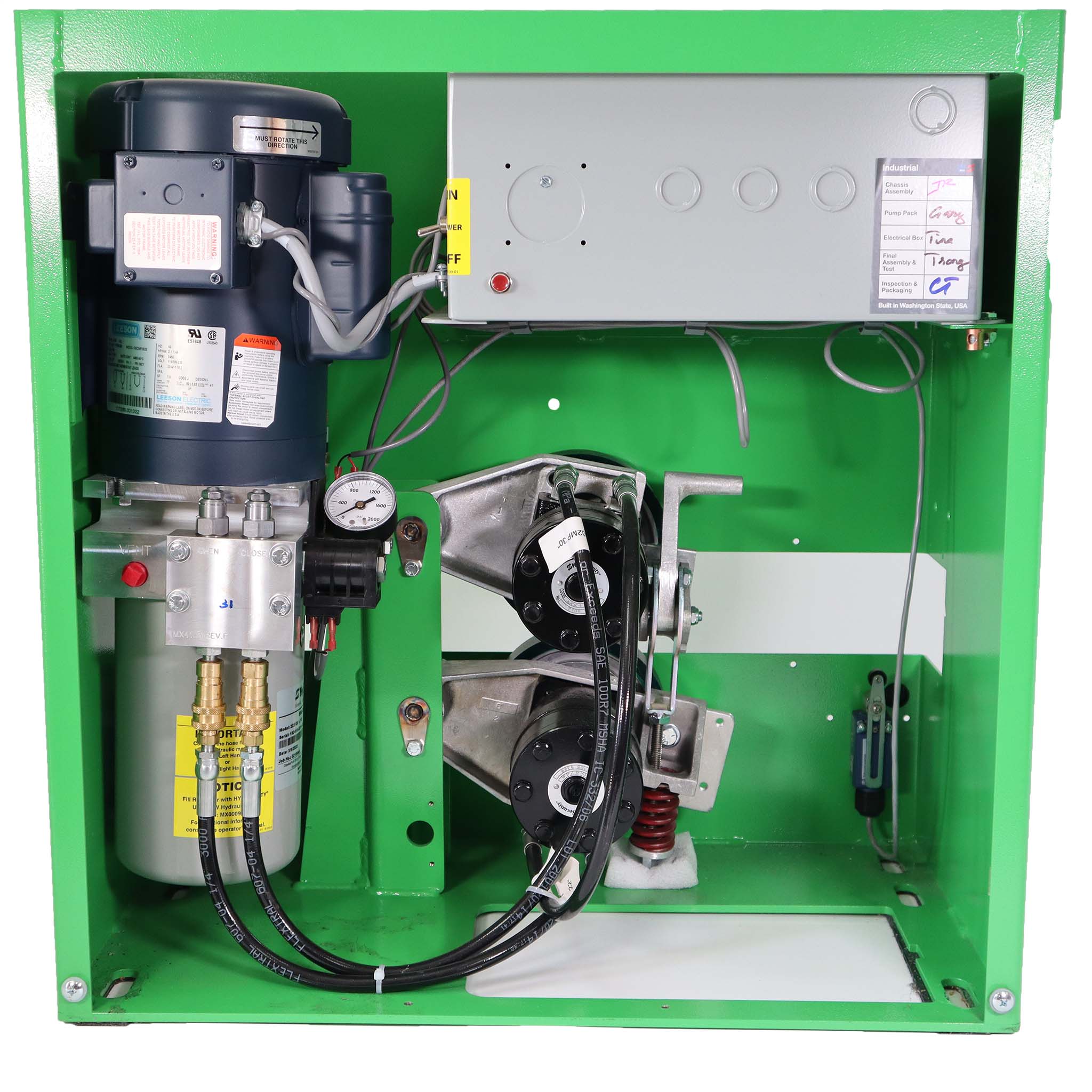

Discontinued by HySecurity. The SlideDriver II SD40 Corrections is the updated version. The HySecurity SlideDriver 40-C (222 CE ST) Correctional is a 1 hp hydraulic slide gate operator for correctional facility gates up to 4,000 lb at 1 ft/s.

Heavier 10-gauge steel cover with three high-security lock options. Software for correctional sites comes standard: gate position outputs, interlocks for sally ports and sequenced gates, and relays for an external solenoid lock. Smart Touch Controller. Rated -40°F to 158°F with no heater.

Before You Order

115/208/230 VAC single phase or 208/230/460 VAC three phase.
Drive rail sold separately.

Moves gates up to 4,000 lb.
Secure steel chassis and tamper proof cover
UPS models remain functional during a power outage
Configure for specific site requirements
Remote monitoring, management, and maintenance
1 ft/s operating speed
Integrated primary/secondary controls and preprogrammed relay settings
Wide temperature range without heater
Decades long life and low maintenance
Designed, tested, and built with global materials in USA
Microprocessor-based
21 field configurable inputs
3 field configurable user relay outputs, Hy8Relay™ option provides 8 additional user relay outputs
4 plug-in Hy5B™ vehicle detector sockets
RS-232, RS-485
Date and time stamped fault logs, errors and security alerts
PC software simplifies configuration and troubleshooting using Smart Touch Analyze and Retrieve Tool (S.T.A.R.T.)
Unparalleled power surge/lightning strike protection
Easy one wire input terminal connection and common buss

Max Gate Length: Limited only by weight
Max Gate Weight: 4,000 lb
Motor: 1 hp
Input Power: 115/208/230 VAC single phase or 208/230/460 VAC three phase
Duty Cycle: Continuous
UL 325 Class: I, II, III, IV
Battery Backup: Optional (UPS power supply)
Solar Capable: No
Drive: Hydraulic, rail drive, two 6 in AdvanceDrive wheels
Gate Speed / Open Time: 1 ft/s
Operating Temperature: -40°F to 158°F

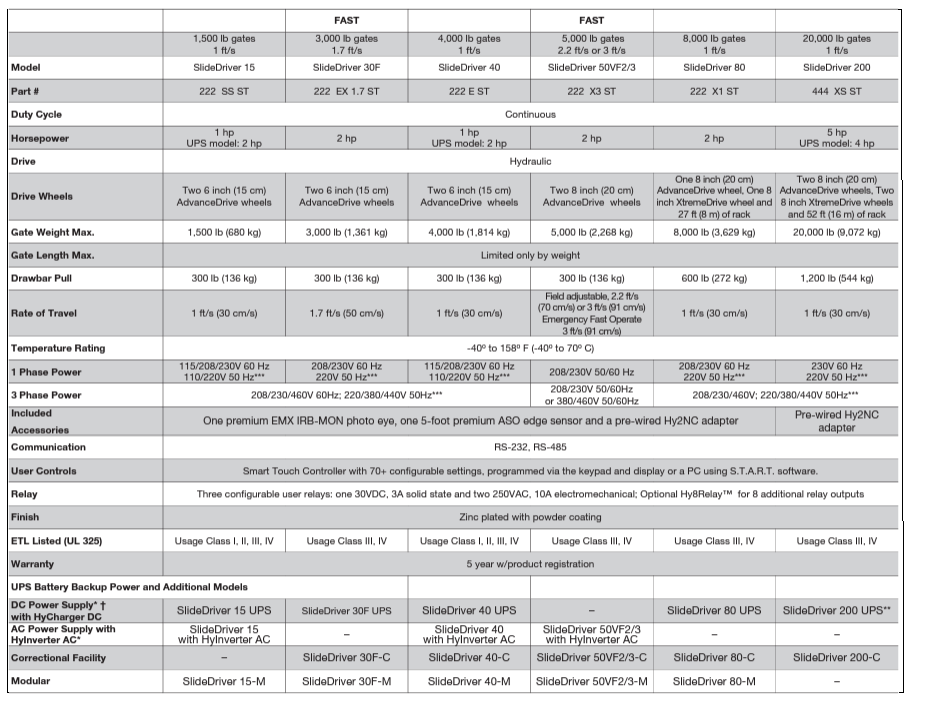

Hysecurity SlideDriver 40-C 222 CE ST Corrections Facility ***Replaced by the SlideDriver II SD40 Corrections*** - Specifications

Model: SlideDriver 40 (222 E ST); corrections facility model SlideDriver 40-C
Horsepower: 1 hp; UPS model: 2 hp
Drive Wheels: Two 6 in (15 cm) AdvanceDrive wheels
Gate Weight Max.: 4,000 lb (1,814 kg)
Drawbar Pull: 300 lb (136 kg)
Rate of Travel: 1 ft/s (30 cm/s)
1 Phase Power: 115/208/230 V 60 Hz; 110/220 V 50 Hz
ETL Listed (UL 325): Usage Class I, II, III, IV
Duty Cycle: Continuous
Drive: Hydraulic
Gate Length Max.: Limited only by weight
Temperature Rating: -40 to 158°F (-40 to 70°C)
3 Phase Power: 208/230/460 V 60 Hz; 220/380/440 V 50 Hz
Included Accessories: One premium EMX IRB-MON photo eye, one 5 ft premium ASO edge sensor and a pre-wired Hy2NC adapter
Communication: RS-232, RS-485
User Controls: Smart Touch Controller with 70+ configurable settings, programmed via the keypad and display or a PC using S.T.A.R.T. software
Relay: Three configurable user relays: one 30 VDC 3 A solid state and two 250 VAC 10 A electromechanical; optional Hy8Relay for 8 additional relay outputs
Finish: Zinc plated with powder coating
Warranty: 5 years (with product registration)

Manuals & Support: installation manuals, wiring diagrams and troubleshooting

Airports/Ports
Corrections
Embassies
Military Stations
Government Buildings
Industrial Locations

SlideDriver™ Introduction Video
Full Parts Diagram*
Troubleshooting Error Codes

*Some part numbers have changed from legacy part numbers. SlideDriver™ parts are backwards compatible.
