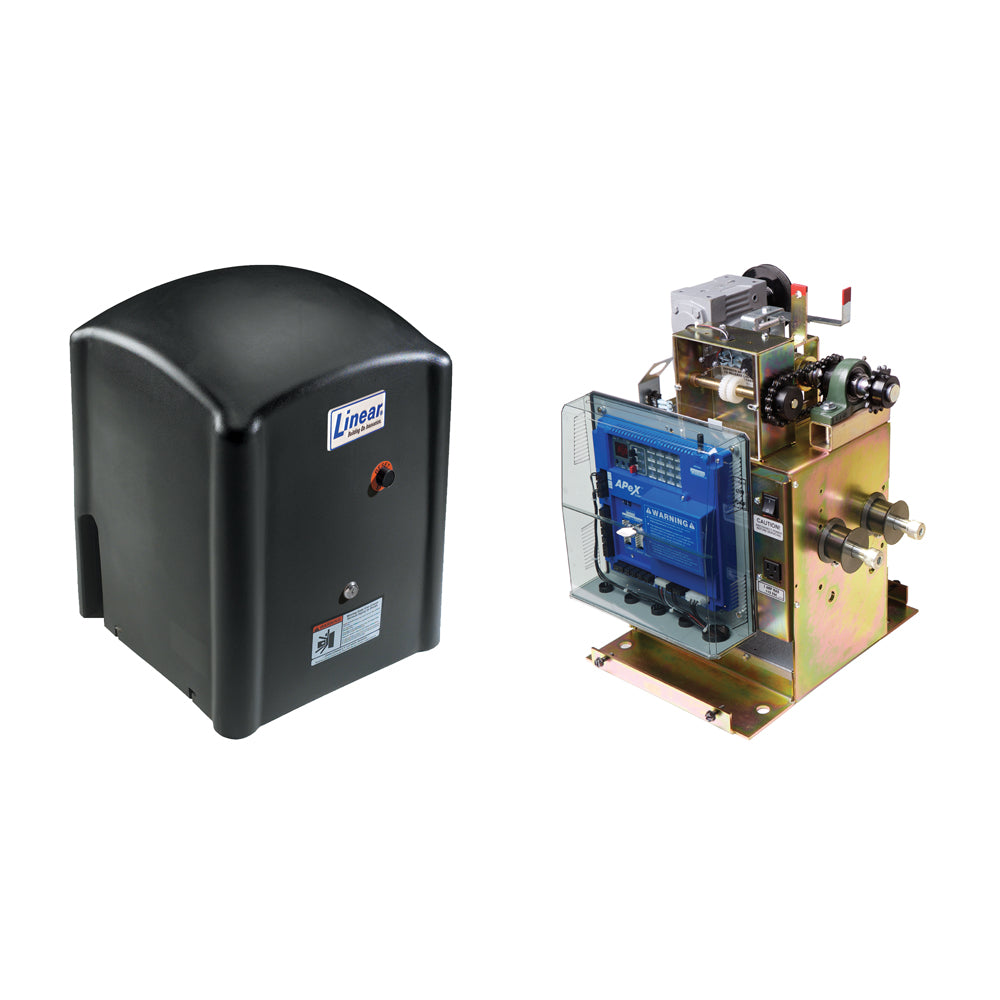

LINEAR OSCO SLC-211 1/2HP Slide Gate Operator

LINEAR OSCO SLC-211 1/2HP Slide Gate Operator

  • Manufacturer: Linear - OSCO
  • Item Number:

  Add to cart to see price



Linear OSCO SLC-211 1/2HP Slide Gate Operator



General

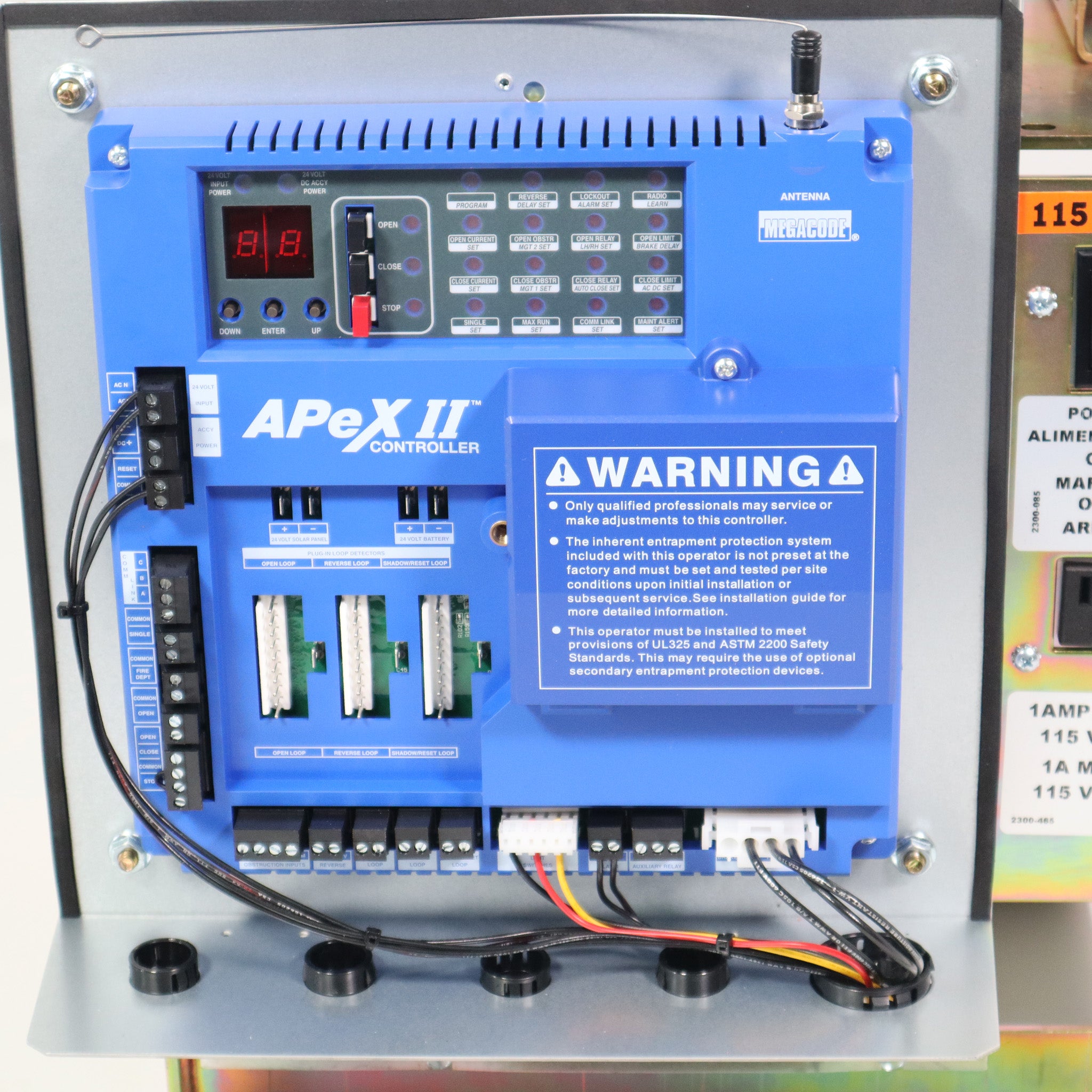

  • APeX Controller

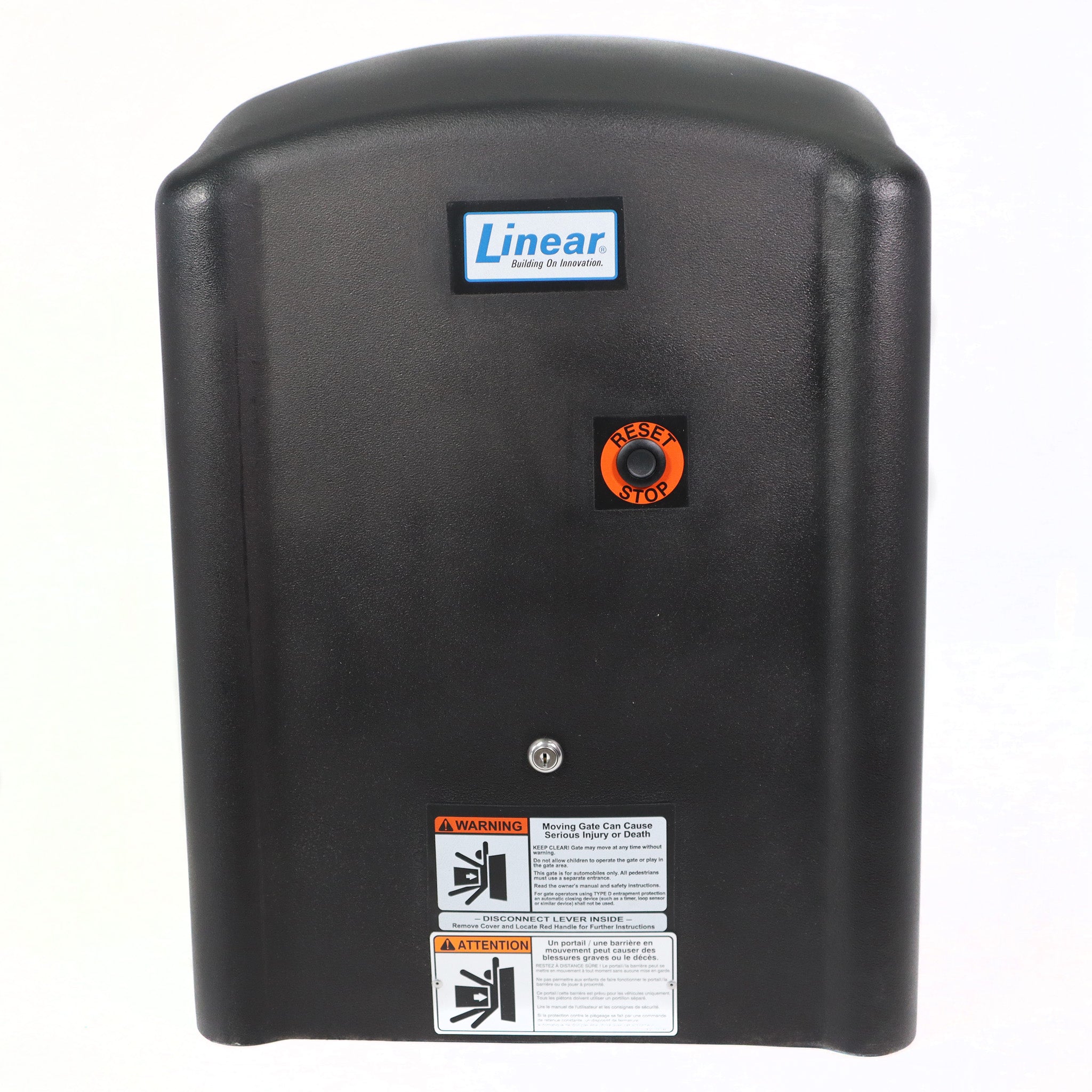

  • Black polyethylene cover
  • Gear reducer, size 60, 20:1
  • Built-in MegaCode receiver
  • Easy-to-operate emergency manual disconnect handle
  • Exterior reset button
  • Pad mount standard - optional post mount kit available
  • ETL Listed for UL 325 (Class I-IV) for U.S. and Canada

Electrical

  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
  • Built-in networked dual gate capability using 3-wire shielded cable

Mechanical

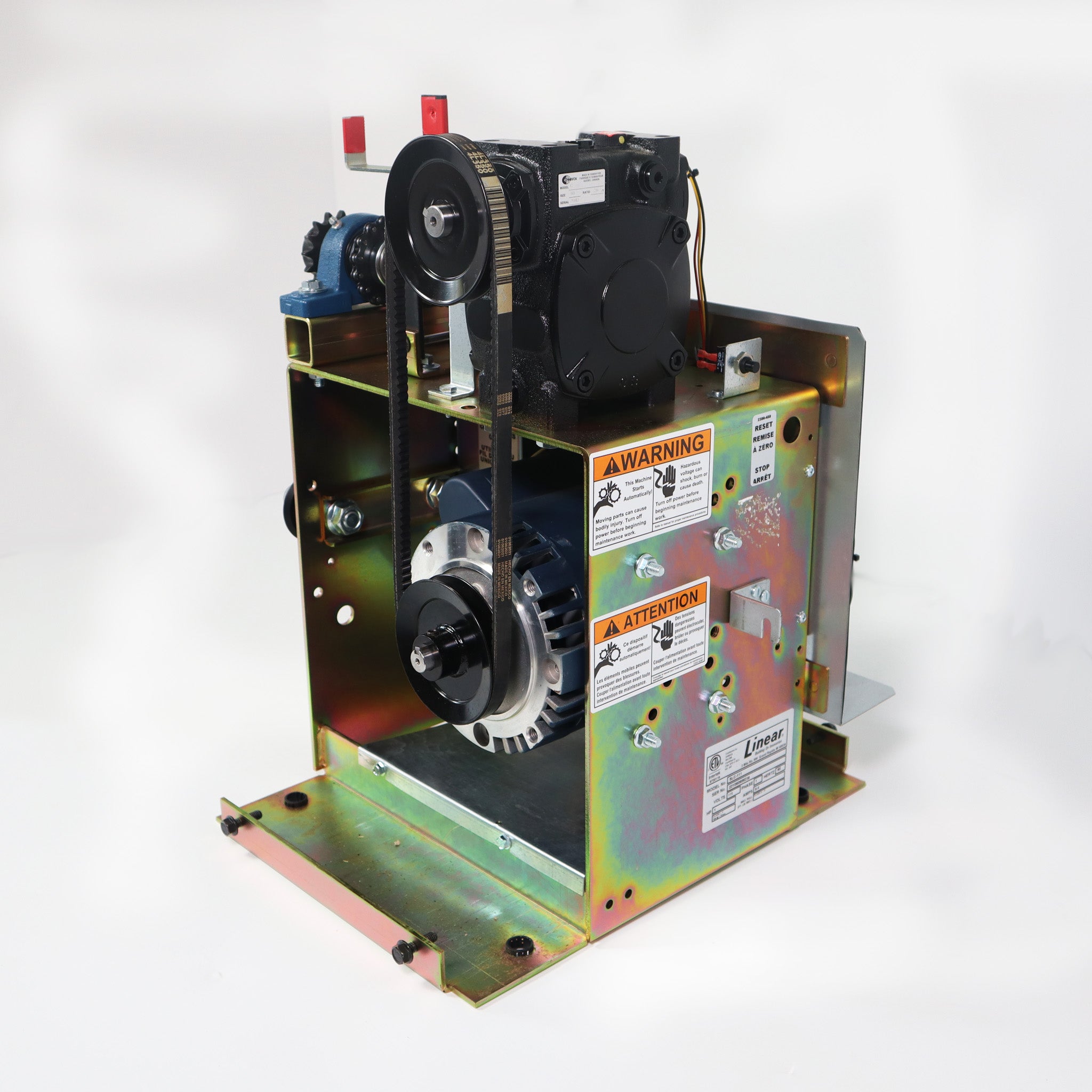

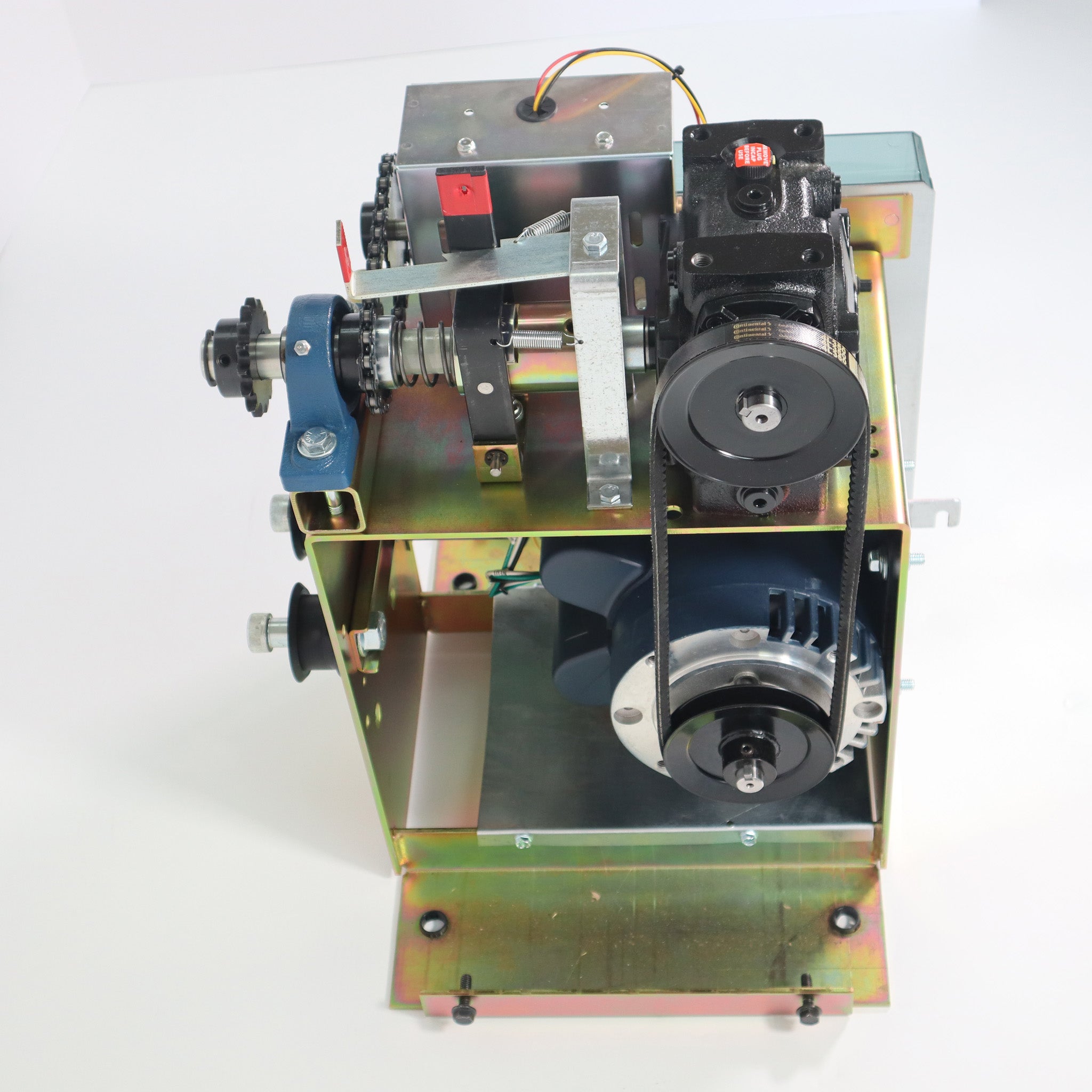

  • Heavy-duty, zinc-plated, steel chassis
  • #41 Drive chain on 1/2 HP (31’ included)
  • #40 Drive chain on 1 HP (31’ included)
  • Universal pad mount standard; optional post mount kit
Model HP Voltage & Phase Max Gate Length Max Gate Weight
SLC-211 1/2 115V 1P 37 ft 1000 lbs
