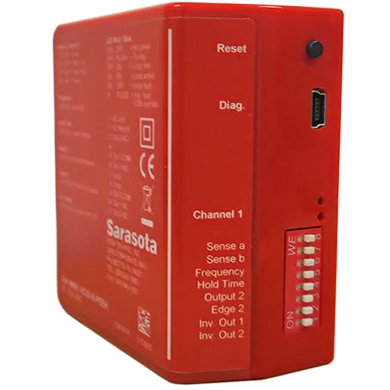

The 625X detector is a single-channel inductive loop vehicle detector that provides vehicle presence information required by gate operators, ticket spitters, card readers, etc. Although compact and lightweight, the 625X is designed to operate in the most demanding high volume access control installations in all environmental conditions. The 625X detector does not sacrifice features for the evolutionary reduction of size.

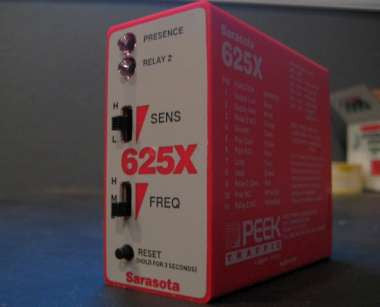

Two outputs are available: one to provide the presence of a vehicle over the loop, the second is switch selectable to provide pulse on entry of the loop, pulse on exiting the loop, a second presence output or a loop fault output. Easy-to- use front panel slide switches provide positive identification of frequency and sensitivity settings.

• Failsafe or failsecure outputs
• Four selectable sensitivities
• Pulse on entry and exit
• Second presence output
• Loop fault output
• Galvanic separation of loop and detector electronics
• Automatic tuning
• Constant readjustment of frequency to avoid environmental impacts

• Dimensions: 3" H x 1.5" W x 2.8" L (76 x 38 x 71 mm)
• Supply Power: 10-30 V AC/DC
• Frequency Range: 30 to 130 kHz
• Inductance: 20 to 700 μH
• Temperature range: -35°F to 158°F   (-37°C to 70°C)
• Weight: 5.8 oz (165 grams)
• Material: ABS plastic
• Connection: 11 pin male
