Description
The Seco-Larm ENFORCER SH-816S-SQ/R is a siren/strobe with broadcast and a red strobe lens. It has a 120 dB warble-tone siren, a 25 W speaker for audio or broadcast input, and a bright LED strobe in one IP65 housing. It runs on 9-15 VDC.
The strobe flashes 100 times a minute and can be triggered separately from the siren. A broadcast interrupts the siren. A tamper output is built in, rated 100 mA at 30 VAC/VDC. It mounts directly to a wall or to a single-gang, double-gang or C-type back box.
Before You Order
- Current draw at 12 VDC: 190 mA strobe, 680 mA siren, 870 mA both.
- White polycarbonate housing, rated IP65 for indoor or outdoor use, -4° to 131°F.
- Size is 6-1/8 x 7 x 4-1/2 in. Weight is 2 lb 2 oz.
- Other lens colors: SH-816S-SQ/A (amber), SH-816S-SQ/B (blue), SH-816S-SQ/C (clear). Replacement red lens: SH-816S-SLQ/R.
- 9~15VDC
- Low current draw
- 120dB Warble-tone siren
- 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
- Built-in tamper alarm output
- Weatherproof for outdoor/indoor use, IP65
- Easy installation
- Mount directly to wall or to most common back boxes
- Bright LED strobe light
- Strobe can be triggered separate from siren
- Strobe available in amber, clear, blue, or red
- Type: Siren/Strobe
- Operating voltage: 9~15VDC
- Current Draw (max.) – Strobe: 190mA@12VDC
- Current Draw (max.) – Siren: 680mA@12VDC
- Current Draw (max.) – Both: 870mA@12VDC
- Siren volume: 120dB
- Speaker rating: 25W Peak
- Strobe flash rate: 100 per minute
- Tamper output: 100mA@30 VAC/VDC
- IP rating: Weatherproof IP65
- Operating humidity: 0~95%
- Operating temperature: -4°~131°F (-20°~55°C)
- Housing material: White polycarbonate plastic
- Lens Color: Red

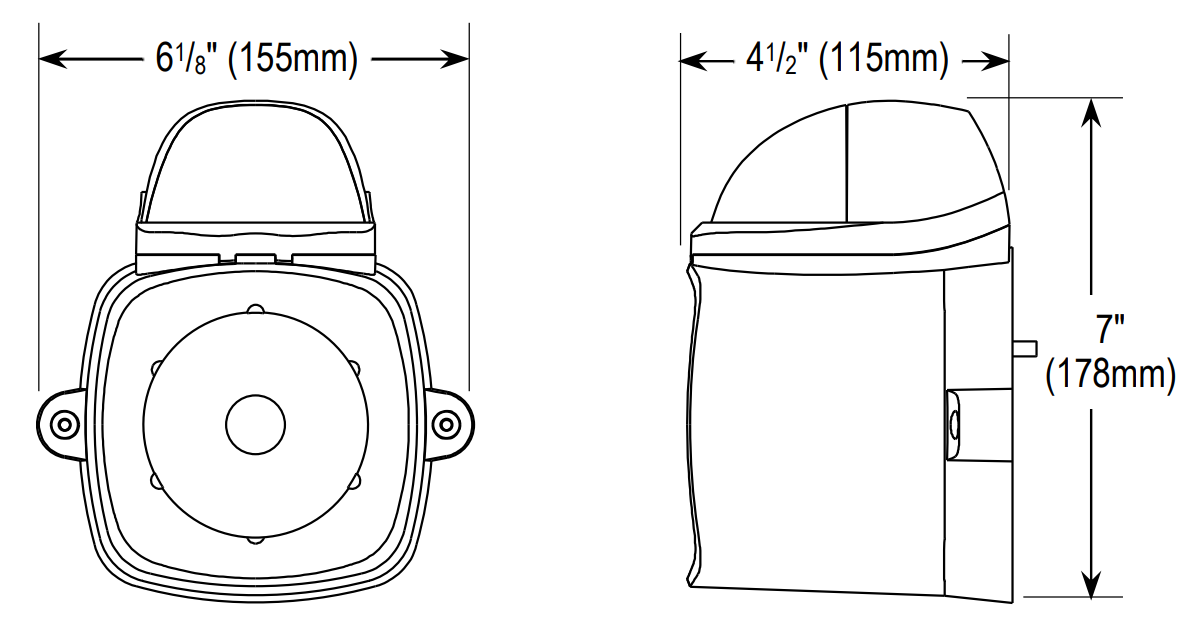

- Dimensions: 6-1/8″ x 7″ x 4-1/2″ (155x178x115 mm)
- Weight: 2-lb 2-oz (957g)
Manuals & Support: installation manuals, wiring diagrams and troubleshooting
Outdoor-rated sirens with broadcast input for alarm and emergency notification.
- Intrusion alarm systems
- Emergency notification
- Commercial building exteriors
- Warehouses and shops
- Public address paging
