BEA MATRIX Loop Detector Manuals & Support

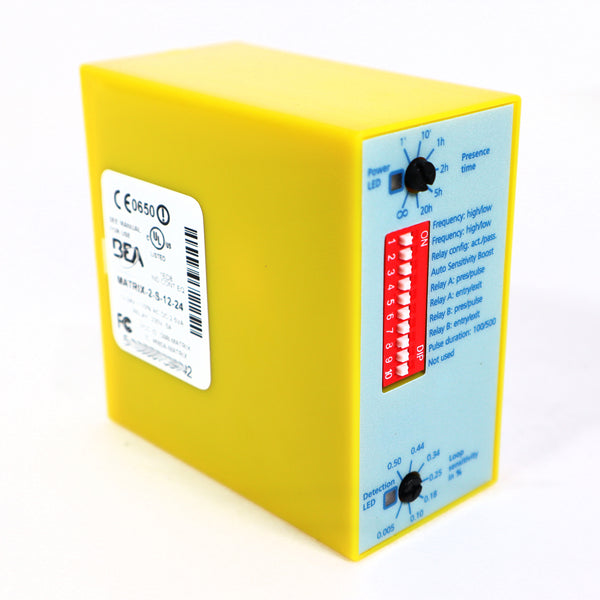

The BEA MATRIX is a digital inductive loop detector for gates, barrier arms and industrial doors. It comes in single and dual channel models for 115 VAC or 12 to 24 VAC/VDC.

It plugs into a standard 11-pin socket. Sensitivity and presence time are set by potentiometer, and automatic sensitivity boost keeps high-bed vehicles detected.

Identify your model

10MATRIXIIS110 and 10MATRIXIIS1224 are single channel. 10MATRIXD110 and 10MATRIXD1224 are dual channel. The 110 models run on 115 VAC and the 1224 models run on 12 to 24 VAC/VDC.

Key specs

Channels	Single or dual
Power	115 VAC or 12 to 24 VAC/VDC, by model
Connector	11-pin round (86CP11)
Relays	Changeover contacts, 5 A at 230 VAC resistive
Sensitivity	0.005% to 0.5%
Presence time	1 minute to infinite
Loop inductance	20 to 1,000 µH
Loop frequency	4 steps single, 2 per loop dual
Size	3.0 x 1.5 x 3.0 in

Manuals and documents

Installation Manual

MATRIX Loop Detector Guide
12 pages View PDF: MATRIX Loop Detector Guide (opens in a new tab)
Loop Installation Guide
8 pages View PDF: Loop Installation Guide (opens in a new tab)
General Loop Installation Guidelines
2 pages View PDF: General Loop Installation Guidelines (opens in a new tab)

Troubleshooting

The green LED shows power. Each red LED shows its loop's detect state.

At power up

The red LED flashes the loop frequency: the number of flashes is the tens value in kHz. For example, 4 flashes is 40 to 49 kHz.
If the frequency is outside 20 to 130 kHz, the red LED shows an error and the relay activates. Check the loop and lead-in.

Missed or false detects

Adjust the sensitivity potentiometer.
Change the frequency on loops that are close together to stop crosstalk.

Common questions

Yes. It uses a standard 11-pin round socket, such as the EMX LD-11 DIN rail socket, or an 11-pin harness.

Match the power to your operator: 110 models for 115 VAC, 1224 models for 12 to 24 VAC/VDC. Use a dual channel model to run two loops.

Use direct-burial loop wire such as 16 AWG XLPE, not THHN. Twist the lead-in about 6 turns per foot from the loop to the detector, and seal saw cuts with loop sealant.
