DIABLO DSP-10-117 SERIES, VEHICLE DETECTOR

Diablo Controls ITEM: DSP-10-117
Diablo Controls DSP-10-117 loop detector
Diablo Controls DSP-10-117 loop detector - view 2
Diablo Controls DSP-10-117 loop detector
Diablo Controls DSP-10-117 loop detector - view 2

DIABLO DSP-10-117 SERIES, VEHICLE DETECTOR

Diablo Controls ITEM: DSP-10-117
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
  • 3 In-Stock & ready to ship
Shipping calculated at checkout.

Description

The Diablo Controls DSP-10-117 is a single channel plug-in loop detector with two relay outputs and an industry standard 11-pin connector. It runs on 117 VAC (110 to 135 VAC). The housing is 2.36 x 1.75 x 4.09 in.

Relays A and B each have NO and NC contacts, rated 3 A. Output A can be switched between fail-safe and fail-secure in the field. Output B runs presence, pulse on entry, pulse on exit or loop fail. A 10-position rotary switch sets sensitivity, with four loop frequencies, delay and extension timing, extended presence and sensitivity boost for trucks and high-bed vehicles. It works with standard loops or the Diablo Free Exit Probe. Loop inductance range is 20 to 1500 µH. It operates from -35°F to 165°F.

Before You Order

  • 117 VAC version. The DSP-10-LV is the 10 to 30 VDC / 10 to 28 VAC version.
  • Wires with a standard 11-pin harness or socket.
  • Wide low voltage operation
  • Works with standard inductive loops as well as Diablo’s Free Exit Probe.
  • Advanced filtering technology for superior noise tolerance.
  • Works on any in-ground inductive loop from 20 to 1500 microhenries.
  • Can be changed between fail-safe or fail-secure mode in the field.
  • Pulse on Entry or Pulse on Exit for those operators or situations that require this type of signal.
  • Delay and Extension timing functions are available to provide additional flexibility.
  • Four frequency settings to help avoid loop cross-talk situations.
  • Sensitivity Boost for those installations that require reliable detection of semi-truck trailers and high-bed vehicles.
  • Provides two relays outputs, each with a Normally Open and a Normally Closed contact.

DSP-10-LV = 10 to 30 volts AC or DC
DSP-10-117 = 117 volts AC
DSP-10-230 = 230 volts AC

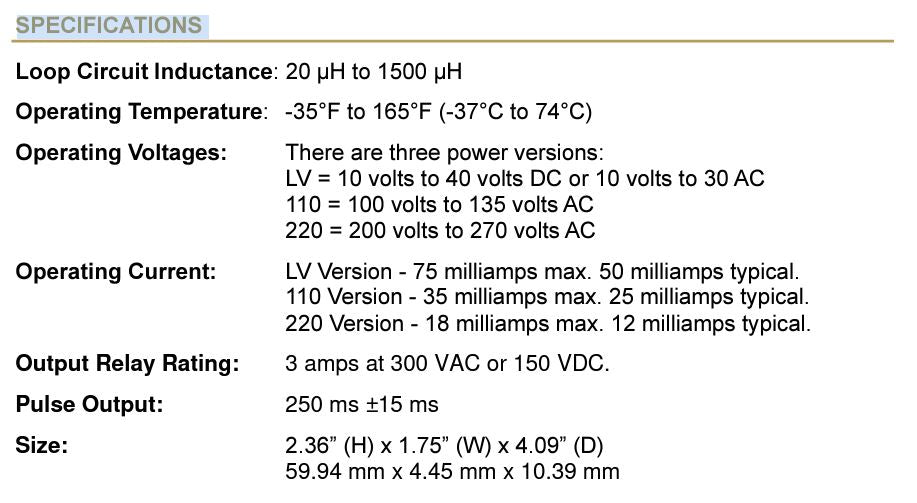

DIABLO DSP-10-117 SERIES, VEHICLE DETECTOR - Specifications

DSP-10-117 Manual

DSP-10-117 Quick Reference

DSP-10-117 Cut Sheet

DSP-10-117 Size Chart

Plug-in loop detection for gate operators and barrier arms, run from the operator's detector port or harness.

  • Free exit loops
  • Safety and reversing loops
  • Shadow loops on swing gates
  • Commercial slide and swing gates
  • Parking barrier arm lanes

Diablo Free Exit Probe installation instructions (PDF)
