Linear Multicode 109020: 1 Channel Receiver
109020: 1-Channel Receiver

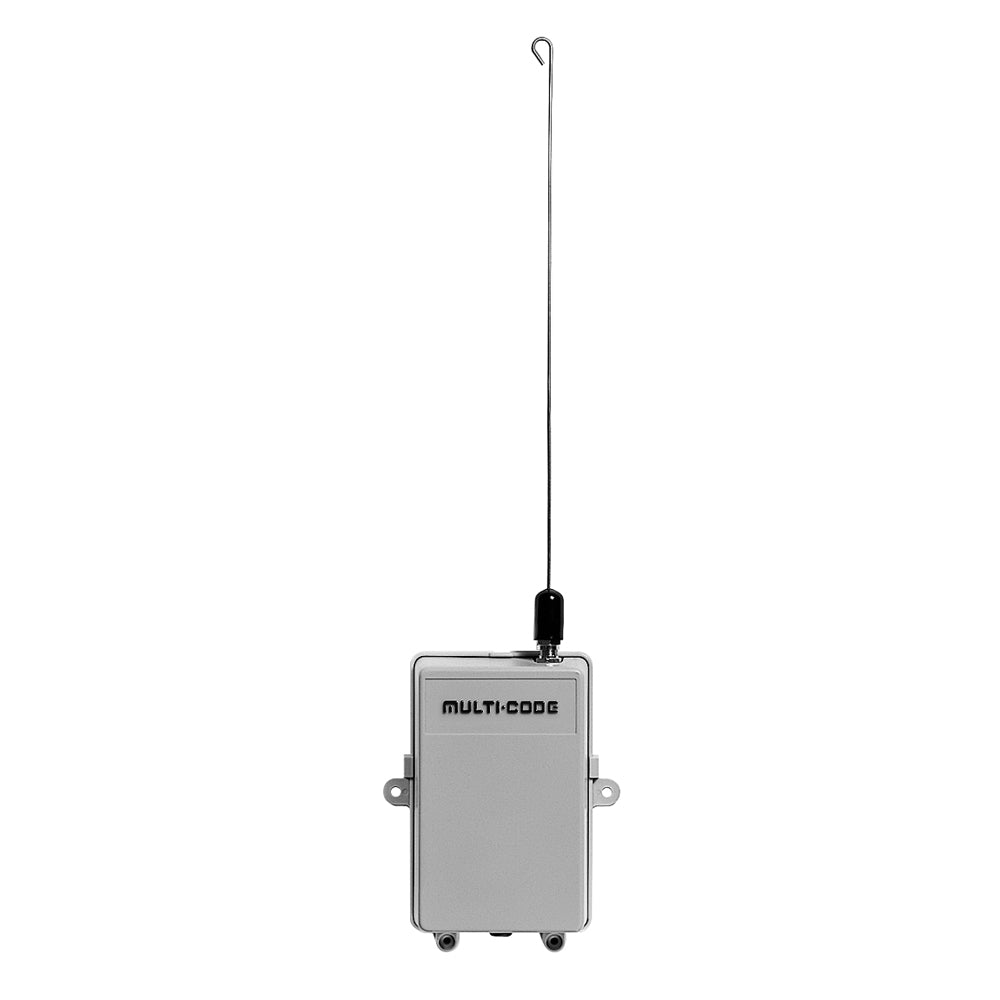

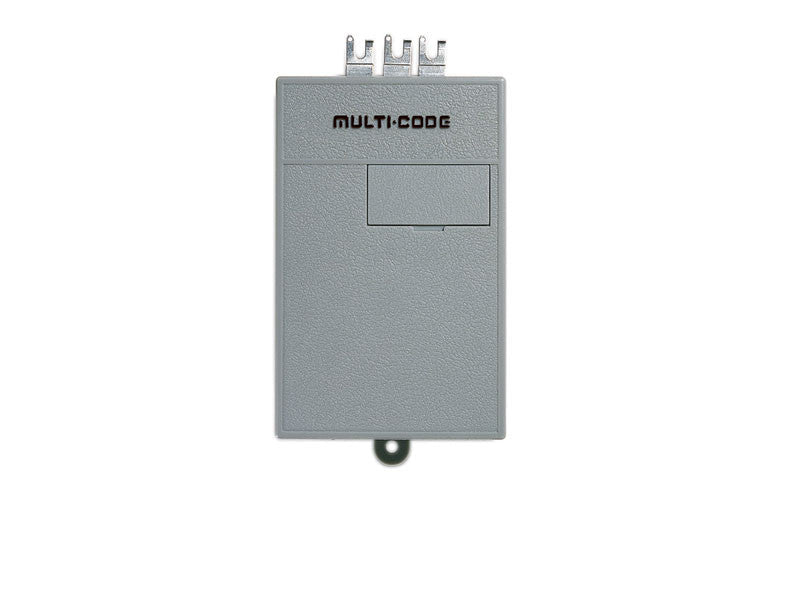

The Model 109020 1-Channel Receiver is designed for use in residential garage door operator applications. Typically the receiver mounts directly to the three terminals on the door operator. An 11-inch wire antenna extends from the receiver.
The operator supplies 24-volt power to the receiver, or the receiver can be powered by a separate 24-volt AC power transformer. Remote power accessories available for the Model 109020 include the Model 109201 Wiring Harness and the Model 109207 Wiring Harness. Both models include a plug-in transformer.
The receiver's exclusive two-way terminal lugs fit under terminal screws or can be used with push-on terminals in remote placement applications using the Model 109206 3-Wire Adapter.
The receiver is programmed with a 10-position coding switch. When a Multi-Code transmitter set to the same code is activated, the receiver's output will activate, triggering the door operator.
The Model 109020 is compatible with 300 MHz Multi-Code transmitters only.
* Operates on 24 VAC power
* One channel
* 1,024 codes
* RF frequency: 300 MHz
* 3" W x 5.5" H x 1.5" D
* Order number: MCS109020
