Linear Multicode 3028-50: 2-Channel 12-24V Gate Receiver
Linear Multicode 3028 50: 2-Channel 12-24V Gate Receiver

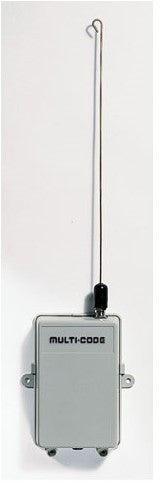

The Model 3028-50 2-Channel, 12-24V, Gate Receiver is designed for use in gate operator applications. An 11-inch wire whip antenna is included for local reception. The whip antenna connects to the receiver's Type-F antenna connector. Also included is 3-feet of coax cable and a bulkhead connector for remotely mounting the whip antenna in installations where the receiver is mounted inside a shielded metal enclosure, such as a gate operator housing. An external Model 106603 Remote Whip Antenna can also be used with this receiver.
The Model 302850 is a dual frequency receiver. An internal jumper selects either 300 MHz or 310 MHz operating frequency. The 300 MHz frequency is compatible with standard Multi-Code transmitters, the 310 MHz frequency is compatible with the Stanley version Multi-Code transmitters.
The operator supplies 12-24 volt power to the receiver, or the receiver can be powered by a separate AC power transformer or DC power supply. The normally open relay outputs can switch up to 1 amp @ 30 VAC. 3-foot, 2-conductor wire leads with spade lugs are provided for attachment to the gate operator's radio activation terminals.
The receiver is programmed with a 9-position coding switch. When a transmitter set to the same code is activated, the receiver's output will activate, triggering the gate operator. Transmitter switch #10 selects which receiver channel will activate.
The Model 302850 is compatible with Multi-Code and Stanley Multi-Code transmitters only.
* Operates on 12-24 volts AC or DC power
* Two channels
* Whip antenna
* 3-foot antenna coax and bulkhead connector
* 512 codes
* RF frequency: 300 MHz or 310 MHz (jumper selectable)
* 3.625" W x 5.25" H x 1.5" D
* Order number: MCS302850
