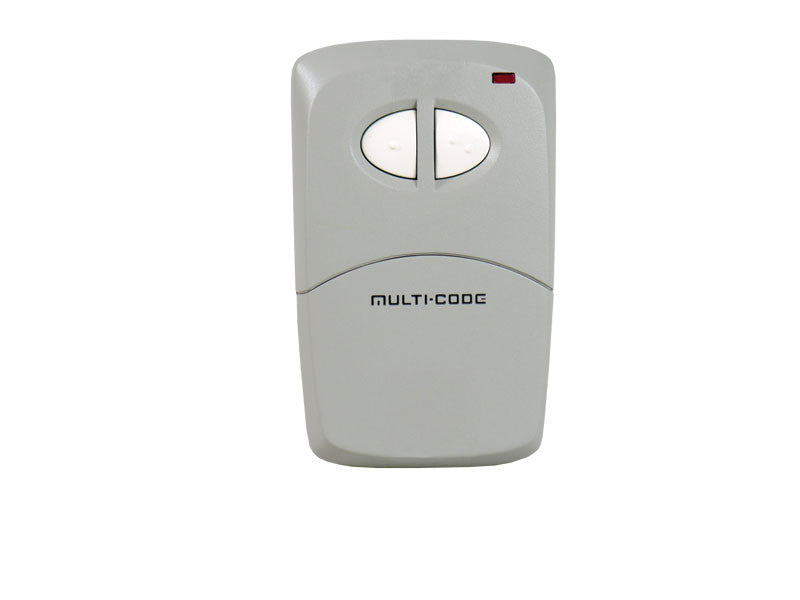

Linear Multicode 4120 01: 2-Channel Visor Transmitter

The Model 4120-01 2-Channel Visor Transmitter is a poratble transmitter designed for automatic door and gate operator applications.

This transmitter is a two-channel device. Pressing the left button on the transmitter will send a channel one signal. Pressing the right button on the transmitter will send a channel two signal. The buttons feature raised dimples for easy, or vision-impaired identification. A visor clip is included. The transmitter is powered by a 9-volt battery and has a test/operate indicator.

The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for each channel. Independent coding supports activation of a common gate and a private door. The transmitter will only activate receivers set with the same code.

The Model 412001 2-Channel Visor Transmitter is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

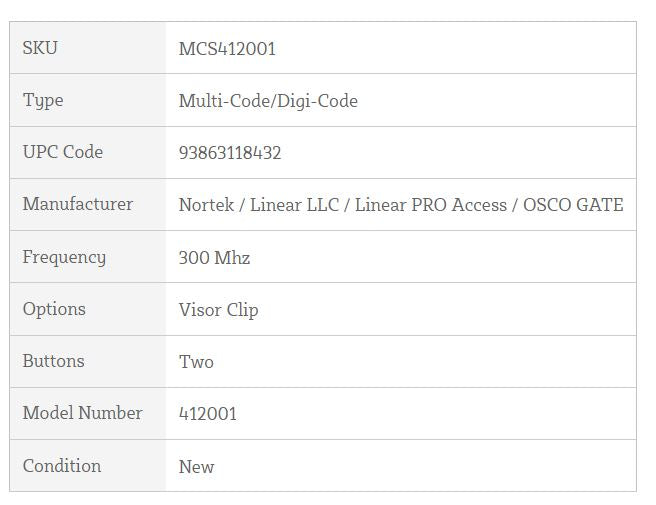

* Compatible with 300 MHz Multi-Code receivers

* Supplied with visor clip

* Powered by 9-volt battery

* Easy access to battery and coding switch

* 1,024 codes

* RF frequency: 300 MHz

* 3.75" W x 2.5" H x 0.875" D

* Order number: MCS412001

PRODUCT INFO PAGES

Click Here for Instructions

We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
