Reno A&E K Series Loop Detector

The Model K detector is a PC Board type vehicle detector that incorporates the reliable vehicle detection technology found in all of Reno A&E's vehicle detectors.

* Single channel
* Dual relay outputs
* Eight external DIP switches
* Eight position rotary switch

Features

* Dual relay outputs:
o Output A:
+ True PresenceTM
+ Limited Presence
o Output B:
+ Presence (Duplicates Output A)
+ Pulse-on-Entry
+ Pulse-on-Exit
+ Fail Output
* Delay Outputs A & B for two seconds
* Eight levels of sensitivity selectable using rotary switch
* Sensitivity Boost for gate operation where high-bed vehicles might be encountered
* Detect Memory feature maintains detection during momentary power interruptions for up to two seconds
* Fail LED indicates current loop failures or loop failures that have occurred
* Four loop frequencies selectable using DIP switches
* Super bright LED indicators for power, detect, and loop fail conditions
* 10-pin male Molex connector
* Fail-Safe and Fail-Secure versions available.
* 4.5" High x 3.20" Wide x 1.15" Deep

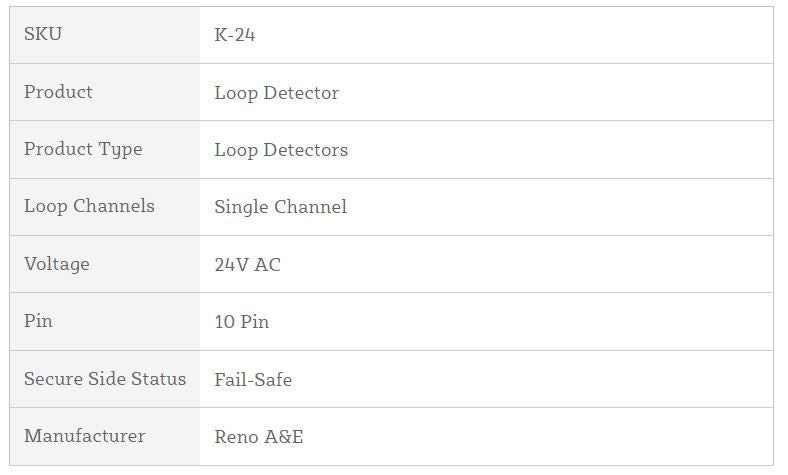

Model Number Information:

Model K-yyy-z

yyy = 24: 24 VAC input power 120: 120 VAC input power

z = Blank: Fail-Safe S: Fail-Secure
